SCREEN DESCRIPTIONS HeatNet Control V3
Page 86

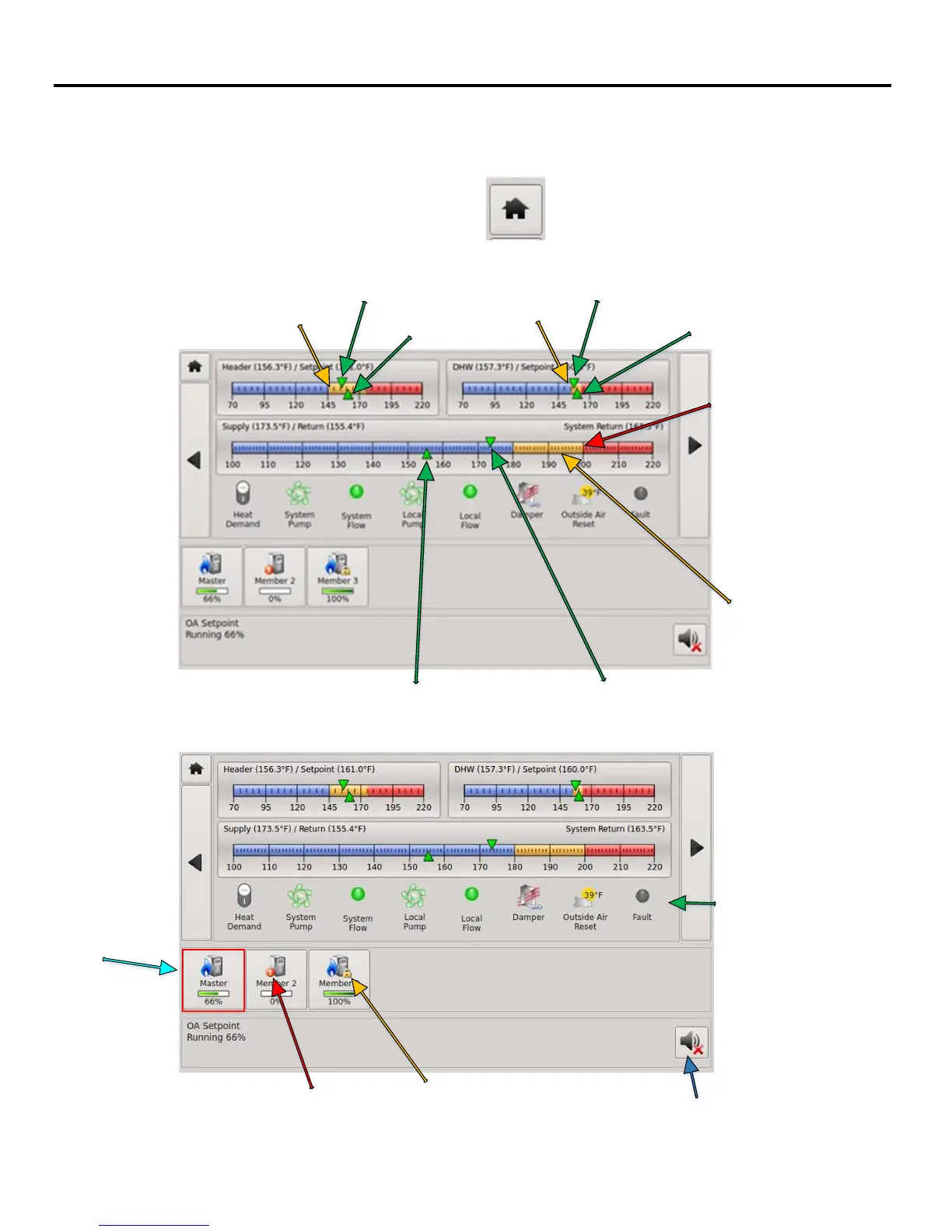

Home Screen
The Home screen is used to show the main temperatures in graphs along with some ancillary functions.
The Home Button in the upper left corner when pressed, will always enter the Home screen.
Header Temperature
Pointer
Setpoint
Yellow indicates
Heat Band
DHW Setpoint
DHW Temperature
Pointer
Yellow indicates
Heat Band
Yellow indicates
Operating Limit Band
Beginning of Red is
the Operate Limit
Top Arrow is the Supply
Temperature
Bottom Arrow is the
Return Temperature
Boxed Boilers indicate
Boilers that are
recognized by HeatNet
The green bar/numeric
indicates Modulation %.
Small flame indicates
pilot, large flame main
flame.
A Red Exclamation
point indicates a
problem exists with the
boiler.
The lock symbol
indicates the boiler is
locally controlled. The
HeatNet Master cannot
fire - Boiler is offline.
This Row indicates
boiler ancillary devices.
Grayed = inactive
Colored = Active
Heat Demand = UP (I)
Alarm Silence button
