Item List
1 RE32185B050 IR board 22F, 38.5X12.3X1.6mm (1)
2 RE0340E011 Key board 22F, 107X12X1.6mm (2)
3 RE01 TC81ELNA0 Main board T.RSC8.1E
(It is for version 2012)
4 RE46DZ2009 Power board IPB539 200W
5 RE261530458105 Speakers 8Ohm, 10W
Note: (1,2) 22F and dimensions refer to the PCB board.

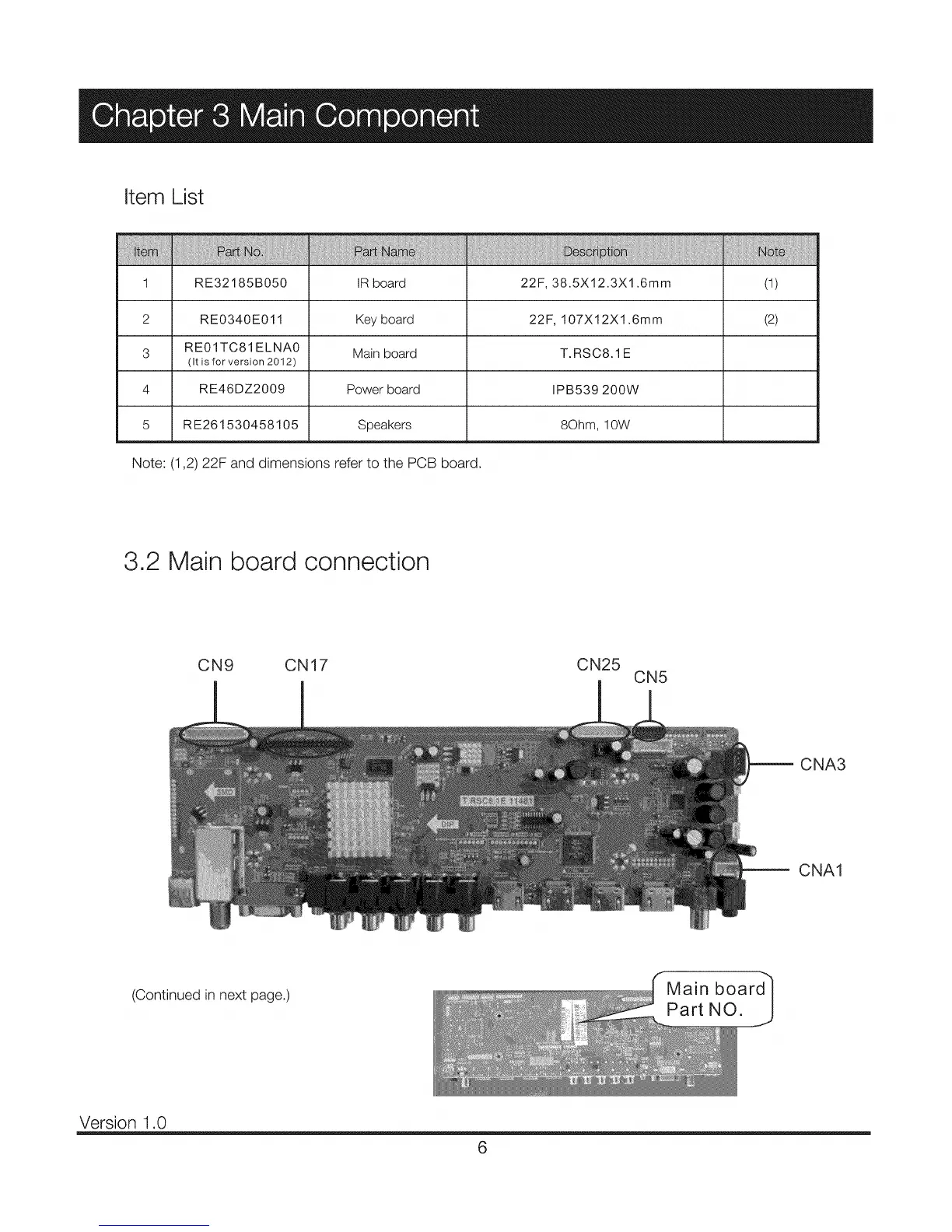

3.2 Main board connection
CN9 CN17 CN25
CN5
CNA3
CNA1
(Continued in next page.)
Part NO.
Version 1.0
6
