Jack List
Jack N01 1 Specification Description connection Note
CN25 10 Pin 2.54mm Main power To Power board
CN17 2x20 Pin 2,0ram LVDS interface To LCD panel
CN9 14 Pin 2.0mm IR and keyboard jack To IR board and keyboard
CN5 6Pin2.0mm Inverter Jack To LCD panel inverter board Backiightcontrol
C NA3 4 Pin 2.54mm Amplifier power supply jack To power board
CNA1 4 Pin 2.54mm Speaker jack To Speaker

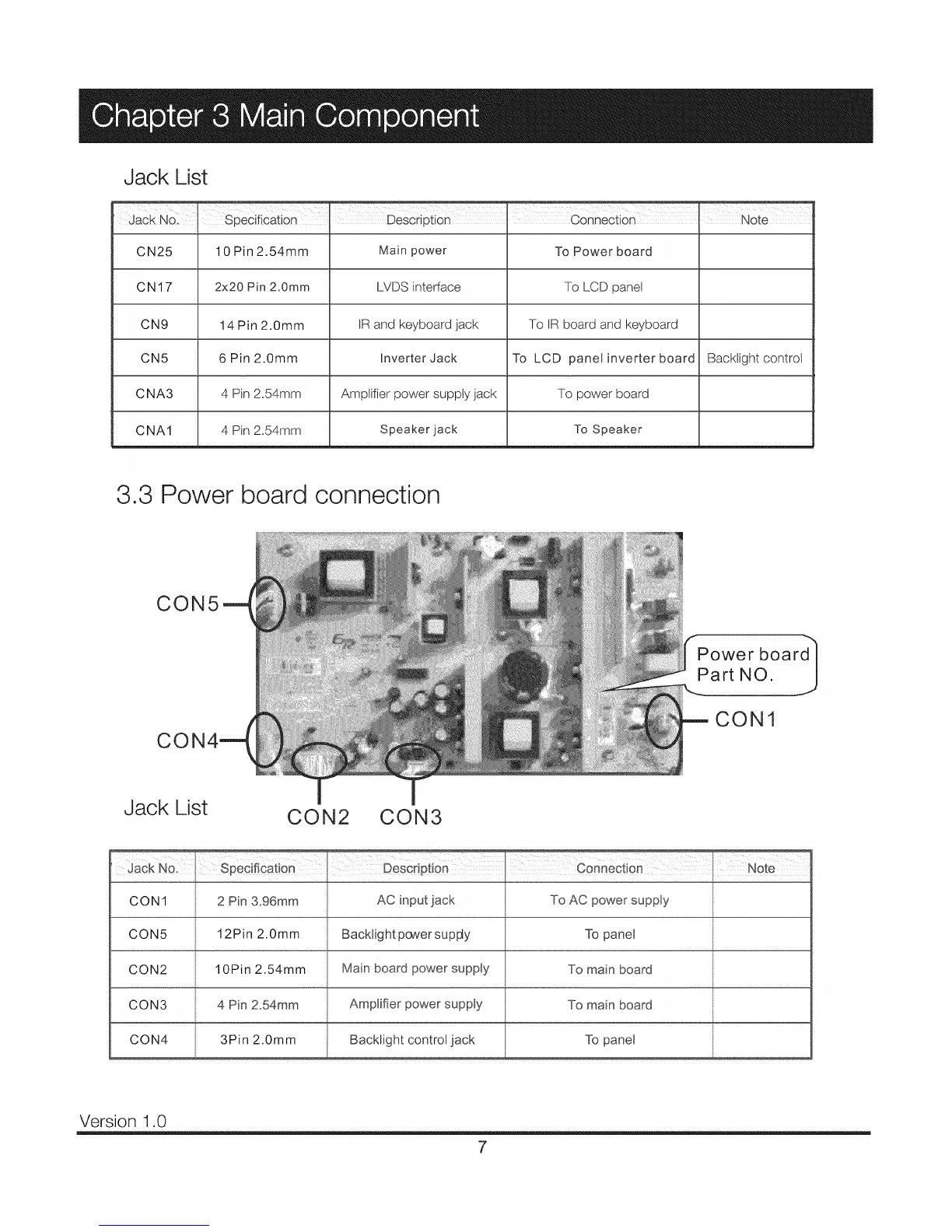

3.3 Power board connection
CON5
CO
CON1
Jack List
Jack No.
CON1
CON5
CON2
CON3
CON2 CON3
specification, DeScdPt!0n connecti0n, NOte
2 Pin 3.96mm AC input lack To AC power supply
12Pin 2.0mm Backlight pcwersupFty To panel
10Pin 2.54mm Main board power supply To main board
4 Pin 2.54mm To main board
CON4 3Pin 2.0mm Backlight control jack To panel
Version 1.0
7
