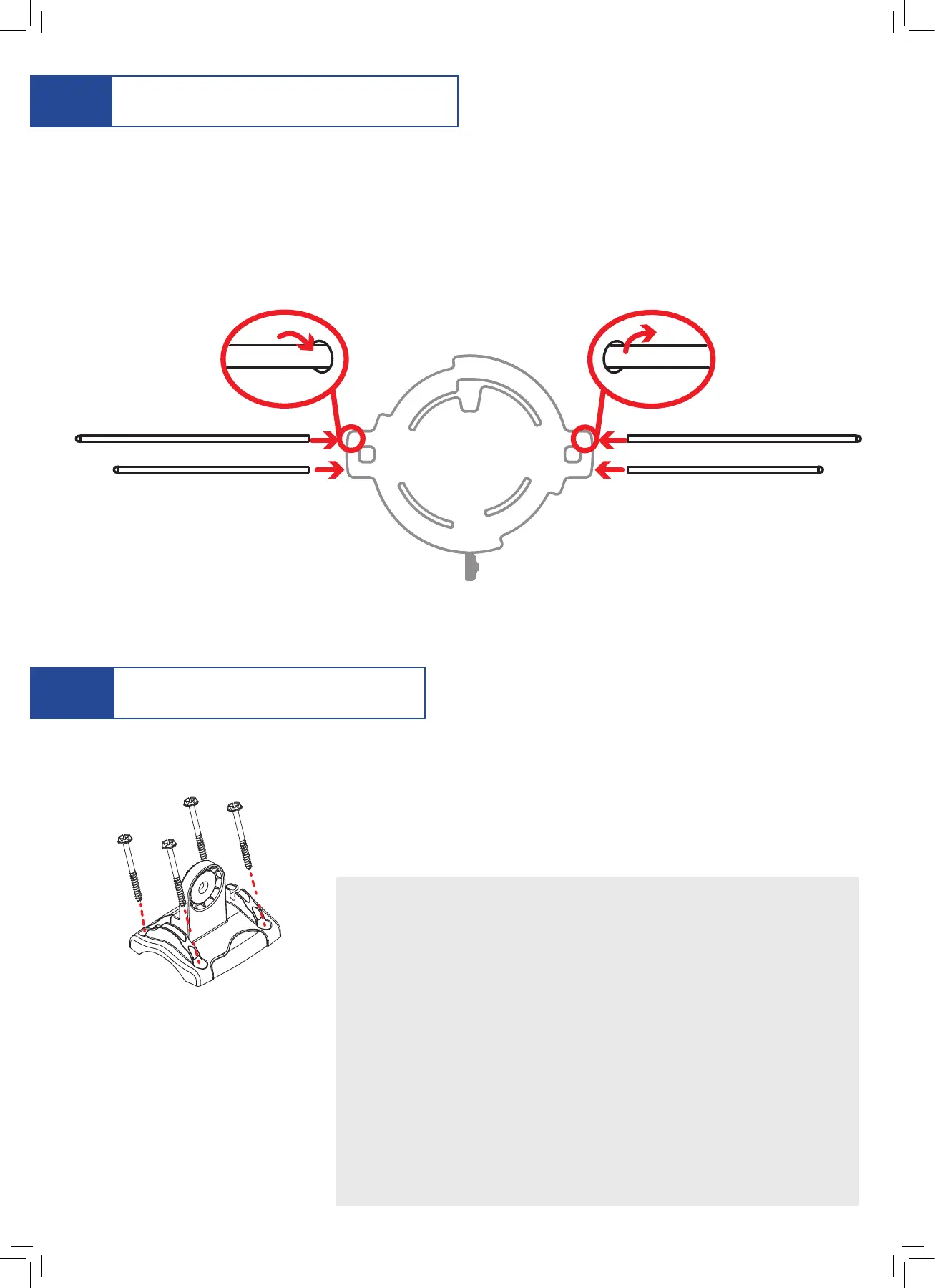

A. Mount the base to a at surface.
Find the four wood screws included in this package. Using these screws,
attach the base to the surface as shown here.
Antenna, front
Long VHF dipole
Short VHF dipole
Connect the VHF dipoles to the antenna.
Mount the antenna
2
Insert the hollow end of each long dipole into the top holes on either side of the antenna. Once the hollow
end contacts the screw threads inside this hole, screw the dipole tightly into place.
Insert the hollow ends of two short dipoles into the bottom holes on either side of the antenna. Once the
hollow ends contact the screw threads inside these holes, screw the dipoles tightly into place.
Assemble the antenna
1
If you’re mounting to concrete, brick, or drywall...
You’ll need to use the anchors included in this package. Here’s how to
install them:
• Place the antenna base against the surface where you want to
mount the antenna. Make sure it’s level.
• Mark the surface through the holes in the base where you’re
going to mount the antenna.
• Set the base aside and use a 1/4” drill bit to drill pilot holes
at each marked location. Remove any excess dust from the
holes.
• Insert a concrete anchor into each hole so that it is ush with
the concrete surface. You can use a hammer to gently tap the
anchors into place if necessary.
• Place the antenna base back against the concrete surface
and secure it using the four wood screws provided. Do not
overtighten these screws.
