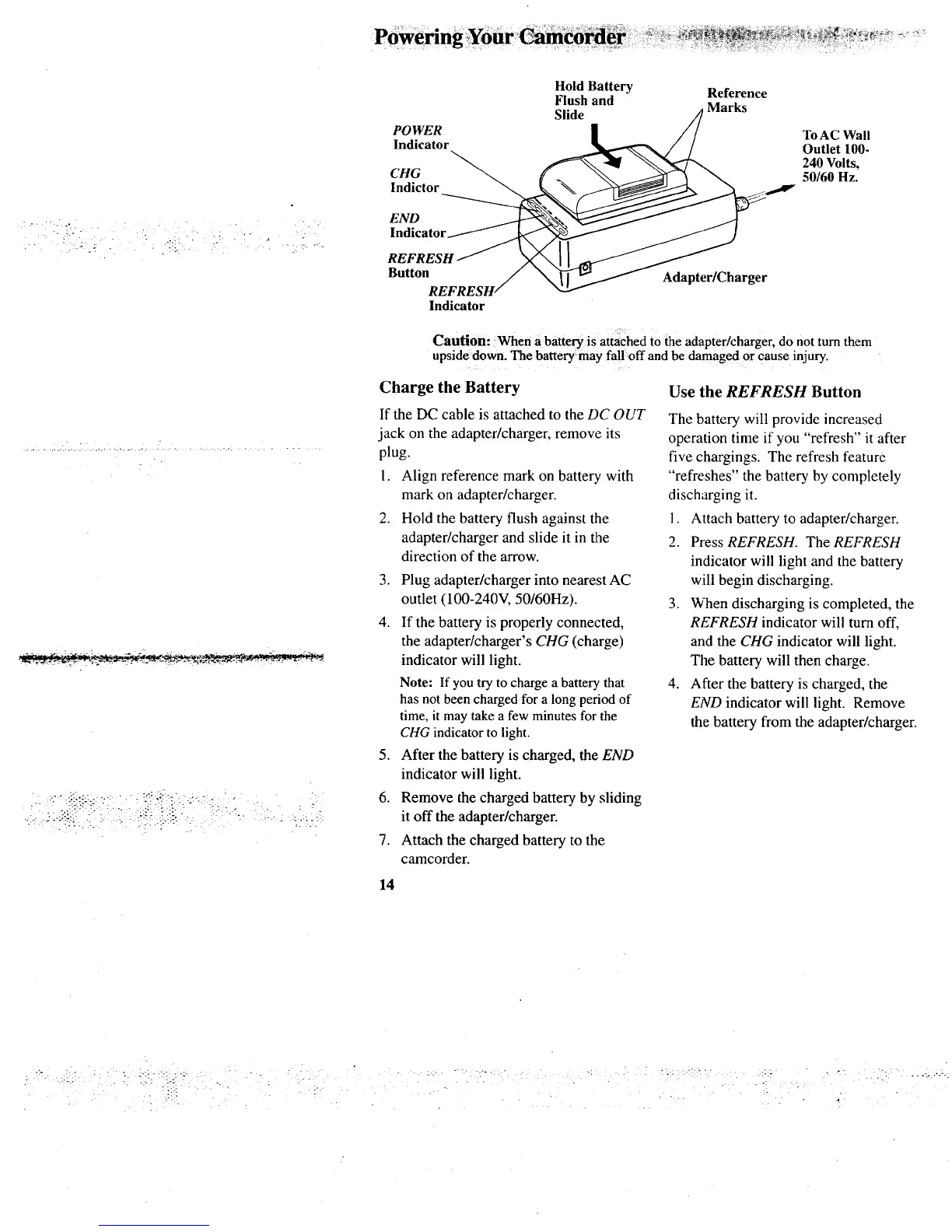

POWER
Indicator
CHG
Indictor
Hold Battery
Flush and
Slide
Reference
Marks
To AC Wall
Outlet 100-
240 Volts,
50/60 Hz.
END
Indicator
REFRESH
Button
Indicator
Adapter/Charger
Caution: When a battery is attached tOthe adapter/charger, do not turn them
upside down. The battery may fall off and be damaged or cause injury.
Charge the Battery
If the DC cable is attached to the DC OUT
jack on the adapter/charger, remove its
plug.
I. Align reference mark on battery with
mark on adapter/charger.
2. Hold the battery flush against the
adapter/charger and slide it in the
direction of the arrow.
3. Plug adapter/charger into nearest AC
outlet (100-240V, 50160Hz).
4. If the battery is properly connected,
the adapter/charger's CHG (charge)
indicator will light.
Note: If you try to charge a battery that
has not been charged for a long period of
time, it may take a few minutes for the
CHG indicator to light.
5. After the battery is charged, the END
indicator will light.
6. Remove the charged battery by sliding
it off the adapter/charger.
7. Attach the charged battery to the
camcorder.
Use the REFRESH Button
The battery will provide increased
operation time if you "refresh" it after
five chargings. The refresh feature
"refreshes" the battery by completely
discharging it.
1. Attach battery to adapter/charger.
2. Press REFRESH. The REFRESH
indicator will light and the battery
will begin discharging.
3. When discharging is completed, the
REFRESH indicator will turn off,
and the CHG indicator will light.
The battery will then charge.
4. After the battery is charged, the
END indicator will light. Remove
the battery from the adapter/charger.
14
