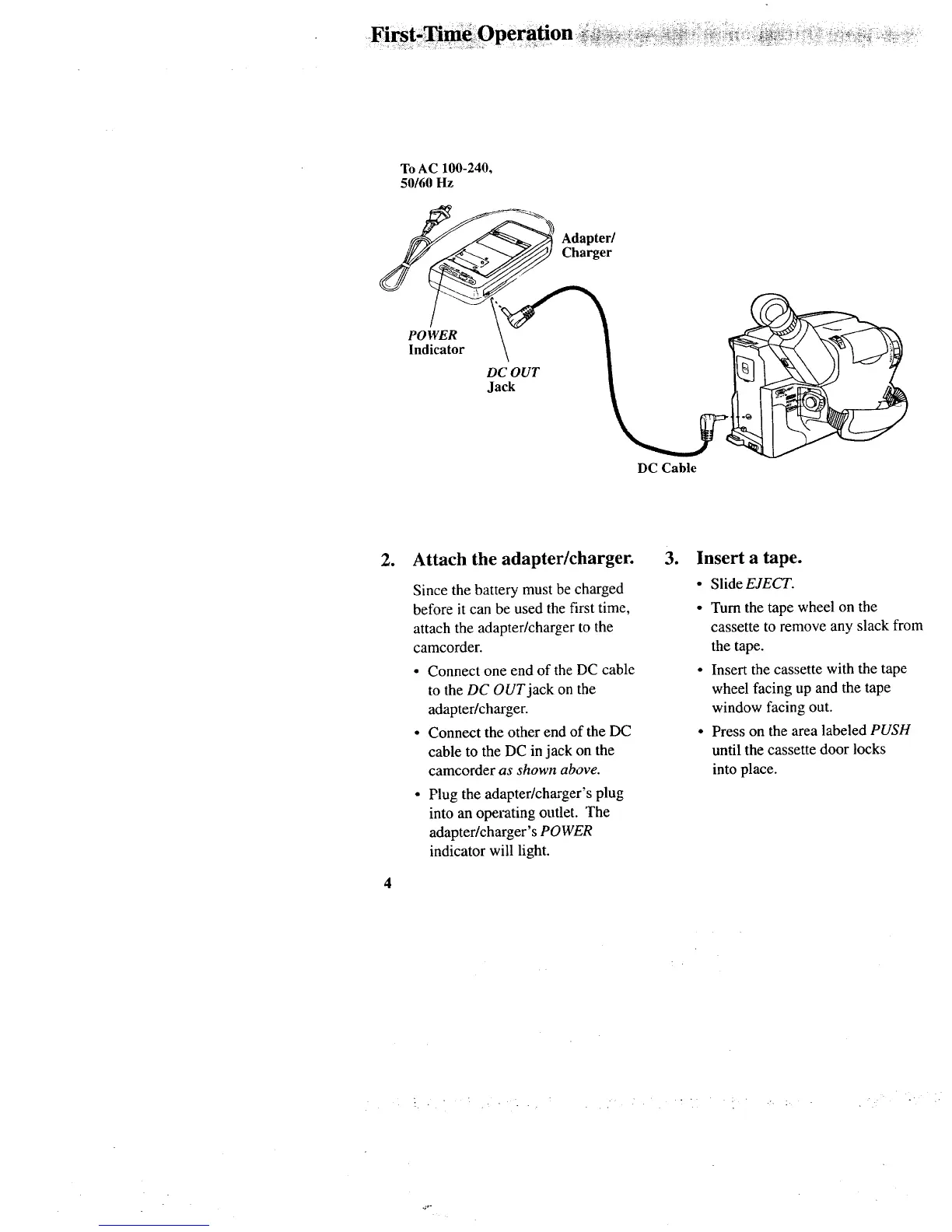

To AC 100-240,
50/60 Hz
Adapter/
Charger
POWER
Indicator
DC OUT
Jack
DC Cable
2. Attach the adapter/charger.
Since the battery must be charged
before it can be used the first time,
attach the adapter/charger to the
camcorder.
• Connect one end of the DC cable
to the DC OUT jack on the
adapter/charger.
• Connect the other end of the DC
cable to the DC in jack on the
camcorder as shown above.
• Plug the adapter/charger's plug
into an operating outlet. The
adapter/charger's POWER
indicator will light.
t
Insert a tape.
• Slide EJECT.
• Turn the tape wheel on the
cassette to remove any slack from
the tape.
• Insert the cassette with the tape
wheel facing up and the tape
window facing out.
• Press on the area labeled PUSH
until the cassette door locks
into place.
To Next Page
