RCA CDRW120 User Manual

Chapter 1 : Setup & Connections
Chapter 1 5

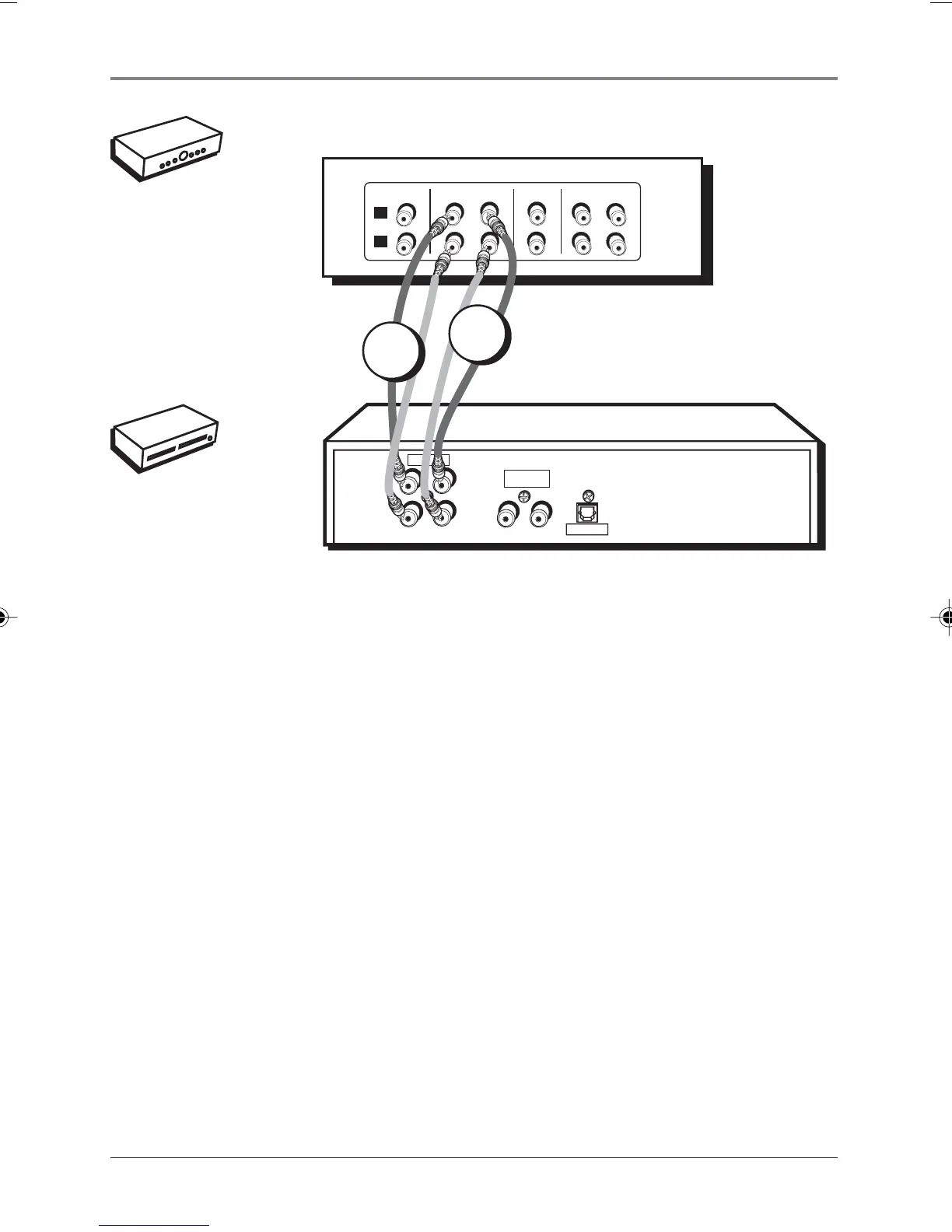

CD Recorder + A/V Receiver or CD Player (Analog)
1. Connect audio cables to the ANALOG IN R and L jacks on the back of the recorder
(color coded, red and white). Connect the other ends of the cables to the
corresponding output jacks on your A/V receiver or CD player (sometimes labeled
AUDIO L/MONO and AUDIO R).
2. Connect audio cables to the ANALOG OUT R and L jacks on the back of the recorder
(color coded, red and white). Connect the other ends of the cables to the
corresponding input jacks on your A/V receiver or CD player (sometimes labeled
AUDIO L/MONO and AUDIO R).
Go To Page 8
A/V
Receiver
CD
Recorder
CD RECORDER
LL
RR
IN OUT
ANALOG
COAXIAL
DIGITAL
IN OUT
OPTICAL IN
IN
OUT
VCR
IN
TV
OUT
IN
TAPE
IN
CD
L
R
A/V RECEIVER
1
2
The back of your
receiver might
not look exactly
like the one
shown here.
15920520.01 Connections 9/24/02, 3:54 PM5
