Chapter 1 : Setup & Connections
6 Chapter 1
A/V
Receiver
CD
Recorder
CD RECORDER
LL
RR
IN OUT
ANALOG
COAXIAL
DIGITAL
IN OUT
OPTICAL IN
IN
OUT
VCR
IN
TV
OUT
IN
TAPE
IN
CD
L
R
A/V RECEIVER
COAXIAL
DIGITAL
OUT
IN
1
2
The back of your
receiver might
not look exactly
like the one
shown here.

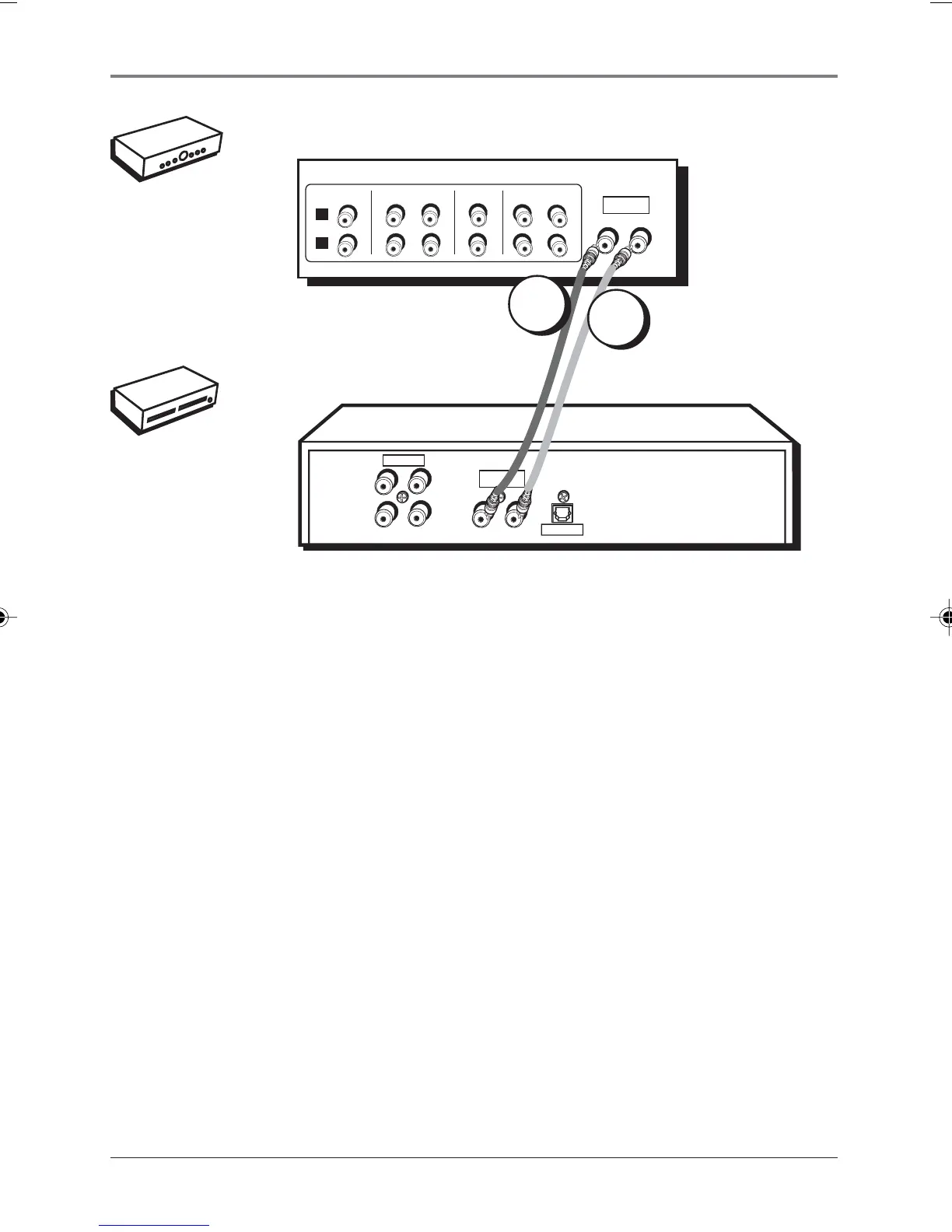

CD Recorder + A/V Receiver or CD Player (Digital
Coaxial)
1. Connect a digital coaxial cable to the COAXIAL DIGITAL IN jack on the back of the
recorder. Connect the other end of the cable to the corresponding output jack on
your A/V receiver or CD player (sometimes labeled DIGITAL COAXIAL OUT).
2. Connect a digital coaxial cable to the COAXIAL DIGITAL OUT jack on the back of
the recorder. Connect the other end of the cable to the corresponding input jack on
your A/V receiver or CD player (sometimes labeled DIGITAL COAXIAL IN).
Go To Page 8
15920520.01 Connections 9/24/02, 3:54 PM6
