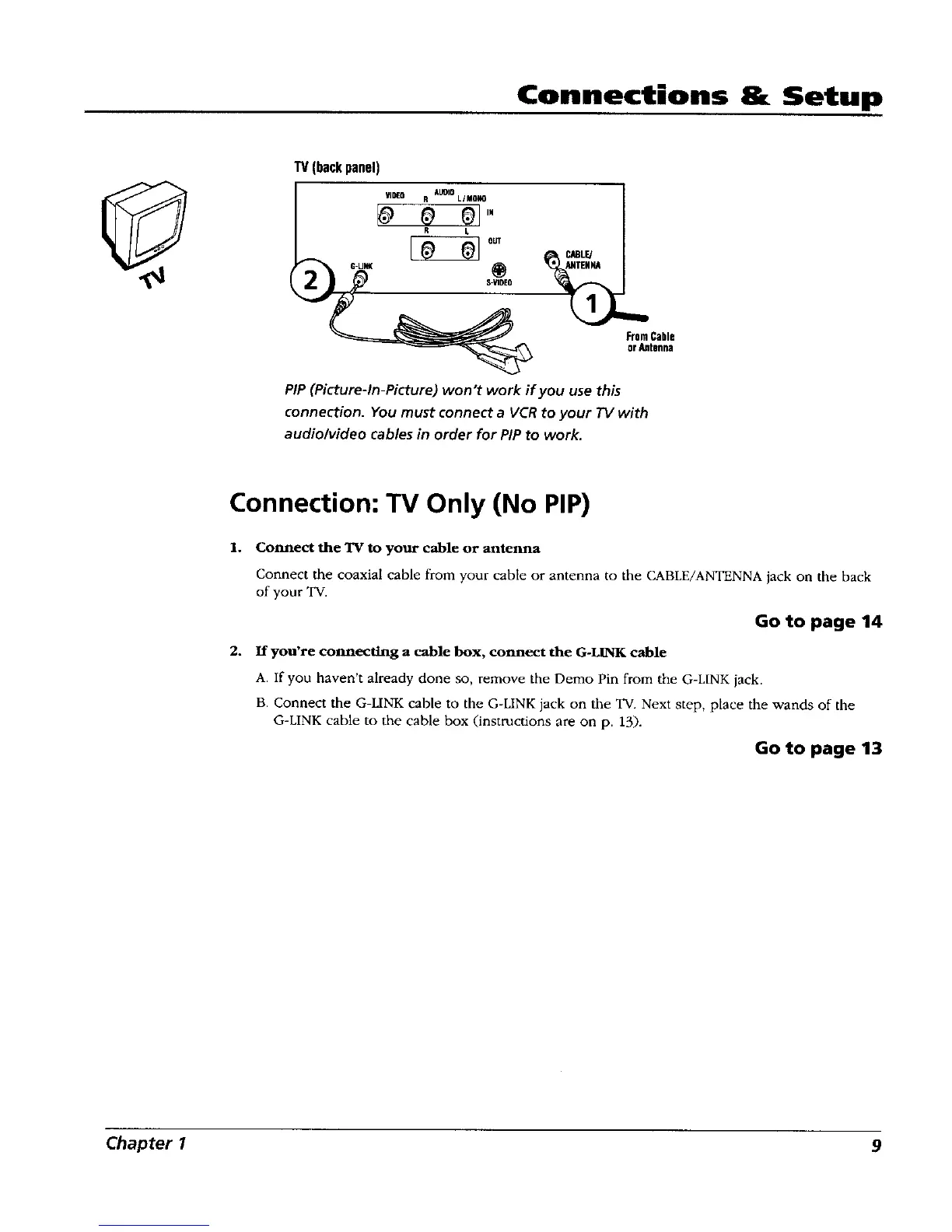

Connections & Setup
TV(backpanel)
VID£O R ALIC40LIMOllO
_ 0 o1"
R L
G-UNK
3-VIDEO
CABLE/
ANTENNA
FromCable
orAntenna
PIP (Picture-In-Picture) won't work if you use this
connection. You must connect a VCR to your TV with
audio/video cables in order for PIP to work.
Connection: TV Only (No PIP)
1. Connect the TV _ your cable or antenna
Connect the coaxial cable from your cable or antenna to the CABLE/ANTENNAjack on the back
of your TV.
Go to page 14
2. If you're connecting a cable box, connect the G-LINK cable
A. If you haven't already done so, remove the Demo Pin from the G-LINKjack.
B. Connect the G-LINK cable to the G-LINK jack on the TV. Next step, place the wands of the
G-LINK cable to the cable box (instructions are on p. 13).
Go to page 13
Chapter 1 9
