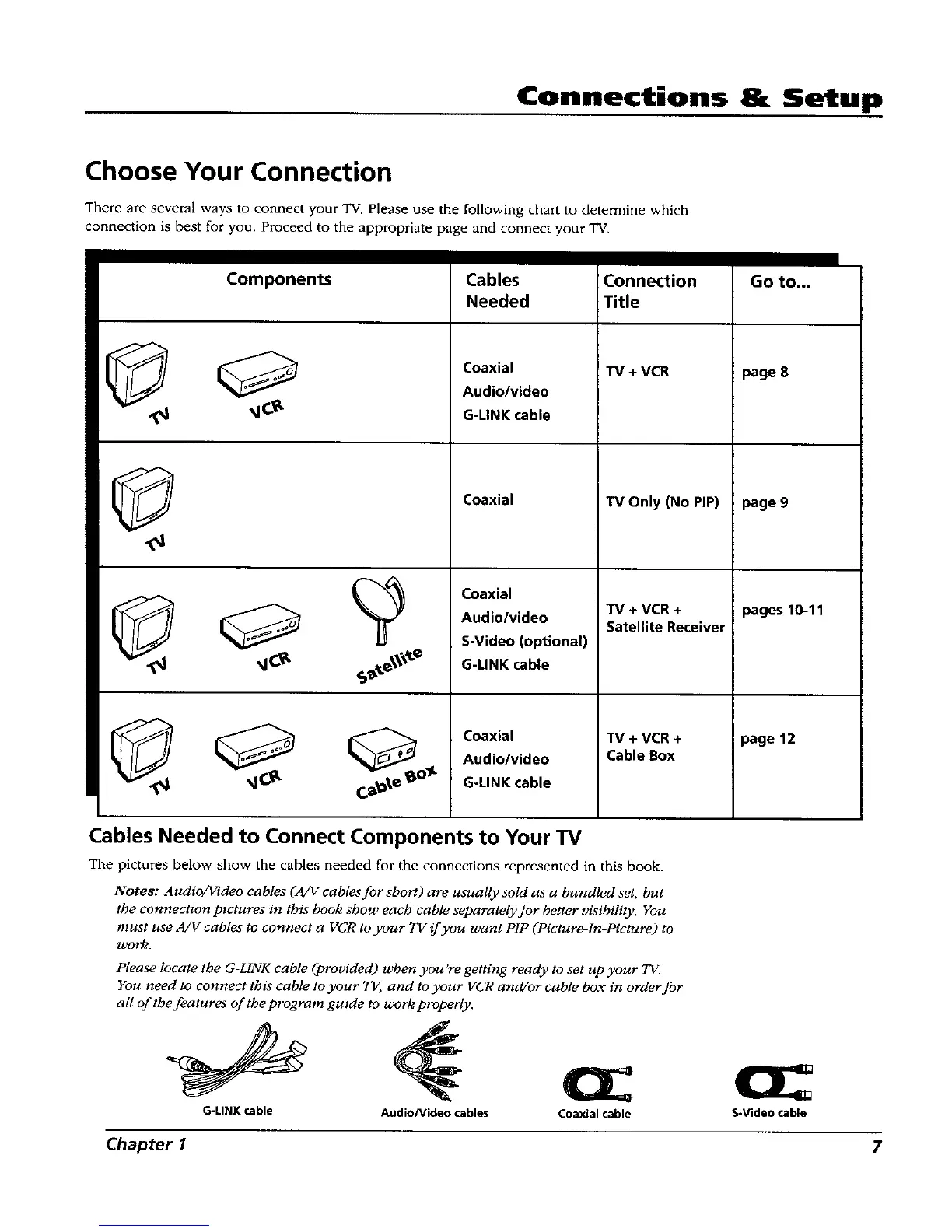

Connections & Setup
Choose Your Connection
There are several ways to connect your "IV. Please use the following chart to determine which
connection is best for you. Proceed to the appropriate page and connect your TV.
Components
qC_. Ca_\e
Cables
Needed
Coaxial
Audio/video
G-LiNK cable
Coaxial
Coaxial
Audio/video
S-Video (optional)
G-LiNK cable
Coaxial
Audio/video
G-LINK cable
Connection
Title
TV + VCR
TV Only (No PiP)
TV + VCR +
Satellite Receiver
TV +VCR +
Cable Box
Go to...
page 8
page 9
pages 10-11
page 12
Cables Needed to Connect Components to Your IV
The pictures below show the cables needed for the connections represented in this book.
Notes: Audio/Video cables (A/V cables for sbort) are usually sold as a bundled set, but
the connection pictures in this book show each cable separately for better visibility. You
must use A/V cables to connect a VCR to your TV if you want PIP (Picture-In-Picture) to
work.
Please locate the G-LINK cable (provided) when you're getting ready to set up your T_
You need to connect this cable to your TV,, and to your VCR and/or cable box in order for
all of the features of the program guide to work properly.
G-LINKcable
Audio/Videocables
Coaxial cable
S-Video cable
Chapter 1 7
