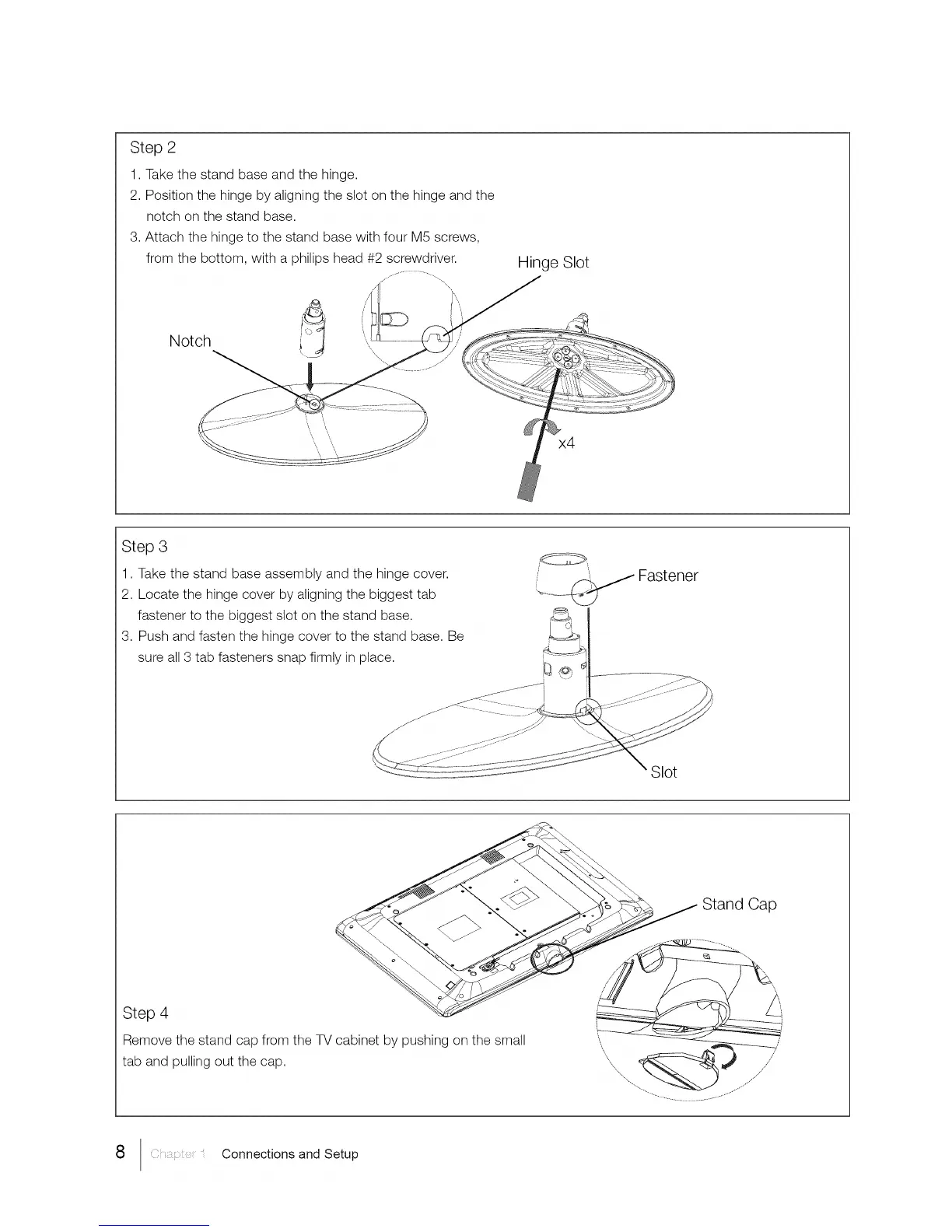

Step 2
1. Take the stand base and the hinge.
2. Position the hinge by aligning the slot on the hinge and the
notch on the stand base.
3. Attach the hinge to the stand base with four M5 screws,
from the bottom, with a philips head #2 screwdriver.
Hinge Slot
Notch
x4
Step 3
1. Take the stand base assembly and the hinge cover.
2. Locate the hinge cover by aligning the biggest tab
fastener to the biggest slot on the stand base.
3. Push and fasten the hinge cover to the stand base. Be
sure all 3 tab fasteners snap firmly in place.
Fastener
Slot
Stand Cap
Step 4
Remove the stand cap from the TV cabinet by pushing on the small
tab and pulling out the cap.
8 1 1 Connections and Setup
