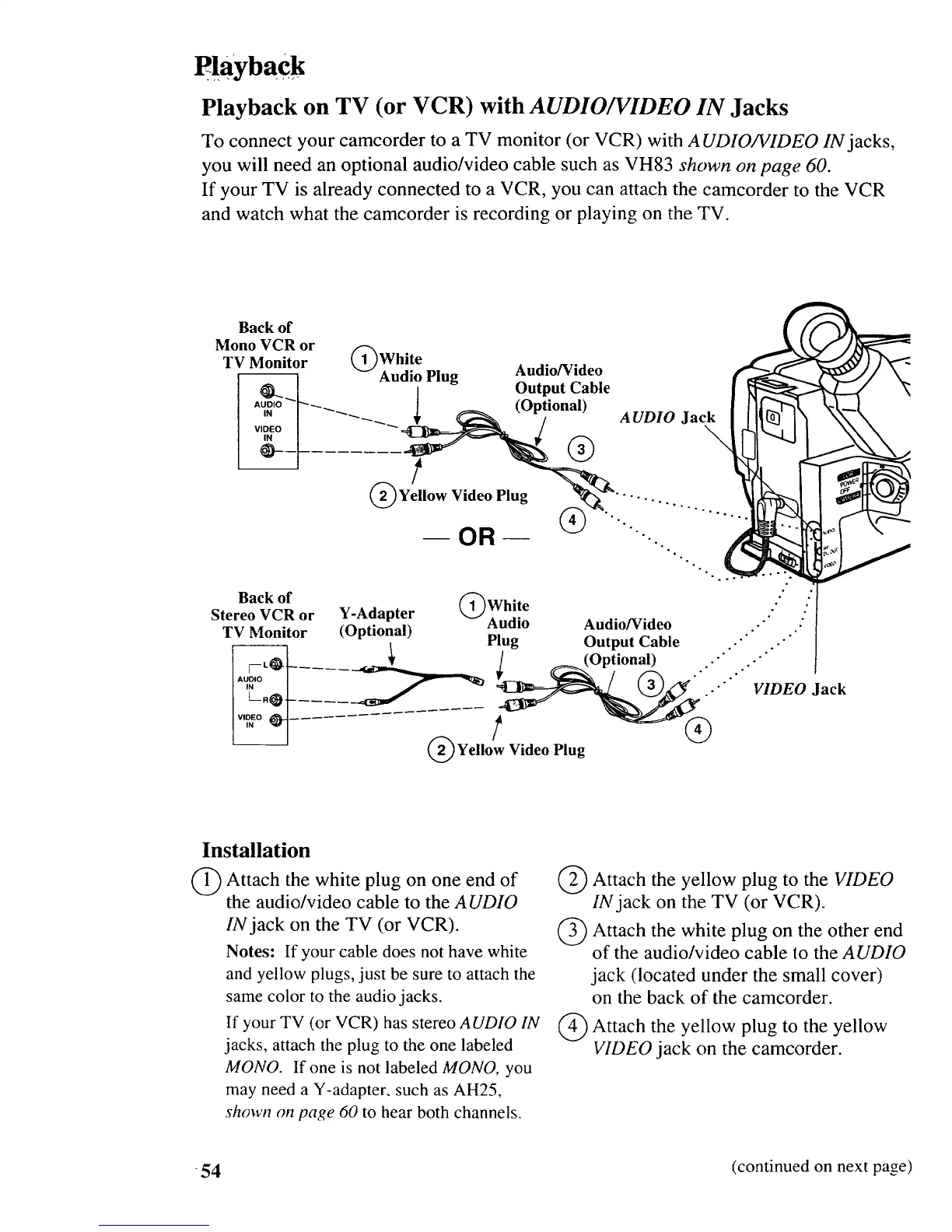

Playback
Playback on TV (or VCR) with AUDIO/VIDEO IN Jacks
To connect your camcorder to a TV monitor (or VCR) with AUDIO/VIDEO IN jacks,
you will need an optional audio/video cable such as VH83 shown on page 60.
If your TV is already connected to a VCR, you can attach the camcorder to the VCR
and watch what the camcorder is recording or playing on the TV.
Back of (_White
Stereo VCR or Y-Adapter
Audio
TV Monitor (Optional) Plug
Yellow Video Plug
Audio/Video
Output Cable
(Optional)
• •
• °
° •
.. VIDEO Jack
®
Installation
(_ Attach the white plug on one end of
the audio/video cable to the A UDIO
IN jack on the TV (or VCR).
Notes: If your cable does not have white
and yellow plugs, just be sure to attach the
same color to the audio jacks.
If your TV (or VCR) has stereo AUDIO IN
jacks, attach the plug to the one labeled
MONO. If one is not labeled MONO, you
may need a Y-adapter. such as AH25,
shown on page 60 to hear both channels.
(_) Attach yellow plug to
the the VIDEO
IN jack on the TV (or VCR).
(_) Attach the white the other end
plug
on
of the audio/video cable to the AUDIO
jack (located under the small cover)
on the back of the camcorder.
(_ Attach yellow plug yellow
the to the
VIDEO jack on the camcorder.
-54 (continued on next page)
