PlaYback

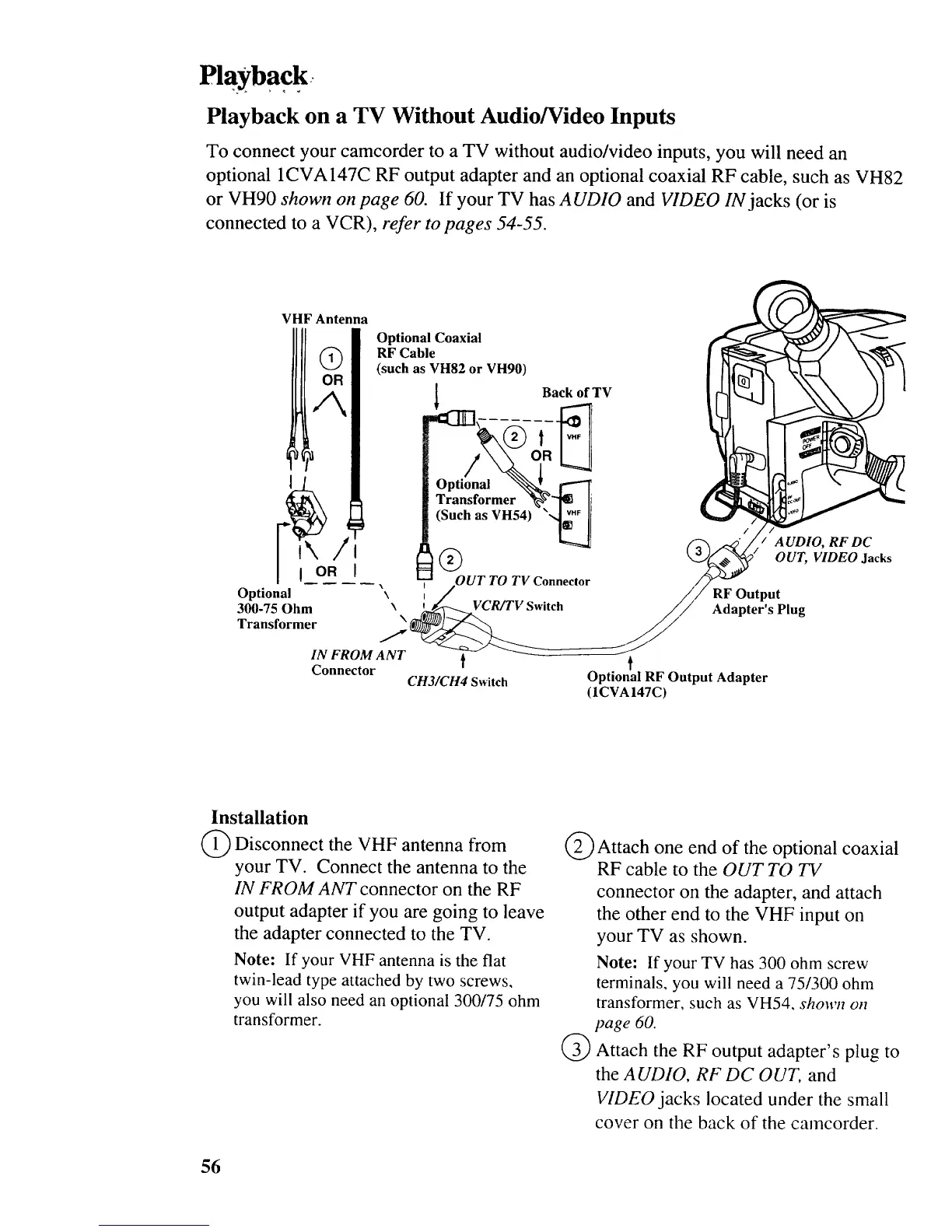

Playback on a TV Without Audio/Video Inputs
To connect your camcorder to a TV without audio/video inputs, you will need an
optional 1CVA147C RF output adapter and an optional coaxial RF cable, such as VH82
or VH90 shown on page 60. If your TV has AUDIO and VIDEO IN jacks (or is
connected to a VCR), refer to pages 54-55.
VHF Antenna
R I
Optional
300-75 Ohm
Transformer
Optional Coaxial
RF Cable
(such as VH82 or VH90)
\\
\
Back of TV
TransformerIJ
(Such as VH54) "-_g_ ][
®
OUT TO TV Connector
VCR/TV Switch
AUDIO, RF DC
OUT, VIDEO Jacks
RF Output
Adapter's Plug
IN FROM ANT
Connector
CH3/CH4 Switch
Optional RF Output Adapter
(ICVAI47C)
Installation
Disconnect the VHF antenna from
your TV. Connect the antenna to the
IN FROM ANT connector on the RF
output adapter if you are going to leave
the adapter connected to the TV.
Note: If your VHF antenna is the flat
twin-lead type attached by two screws,
you will also need an optional 300/75 ohm
transformer.
©
@
Attach one end of the optional coaxial
RF cable to the OUT TO 73/
connector on the adapter, and attach
the other end to the VHF input on
your TV as shown.
Note: If your TV has 300 ohm screw
terminals, you will need a 75/300 ohm
transformer, such as VH54, shown oll
page 60.
Attach the RF output adapter's plug to
the AUDIO, RF DC OUT, and
VIDEO jacks located under the small
cover on the back of the camcorder.
56
