INSTALLATION

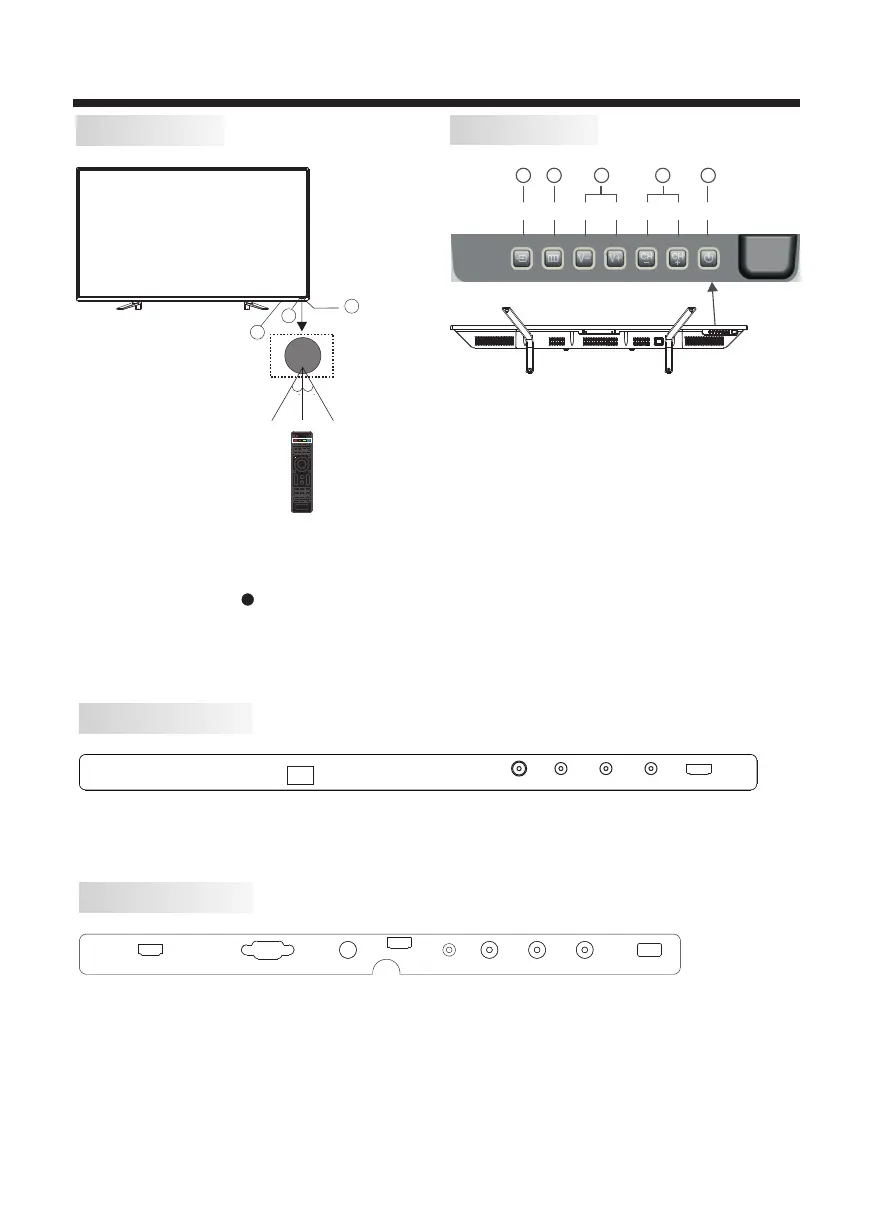

Front panel
Panel keys
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. V-/V+: Adjust sound level. In MENU mode, press
"V+" or "V-" to adjust the item that you selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
4. CH-/CH+: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items.
REAR Connections
SIDE Connections
1: Remote control sensor.
2: Indicator LED: RED STANDBY.
3: Key board
VOL CH
ASPECT
S.M
P.M
USB
SLEEP
CH.LIST
DISPLAY
VGA YPbPr TV
30 30
1
2
3
SOURCE MENU V- V+ CH- CH+ Standby
1 2 3 4 5
All the terminals are(from left to right): Power Socket, RF, COAXIAL, AUDIO INPUT, HDMI1
All the terminals are (from left to right):
Note:
AV and YPbPr share the same channel.
HDMI2, VGA, PC AUDIO, HDMI3, HEADPHONE, AV/YPbPr , USB.
When the HDMI port detects the DVI signal, the DVI audio signal is through the PC Audio
Output Jack.
AC-INPUT
100-240V~50/60Hz
R F L R
HDMI1
COAXIAL
USBAV/Y
Pb
PrVGA
HDMI2
HDMI3
PC AUDIO HEADPHONE
