Getting Started
Unpacking the system:
You should have the following:
• one main unit (with 2 main speakers);
• one remote control;
• one FM antenna;
• one AM loop antenna;
• one user’s guide;
• one safety leaflet.
• Owner and registration Card

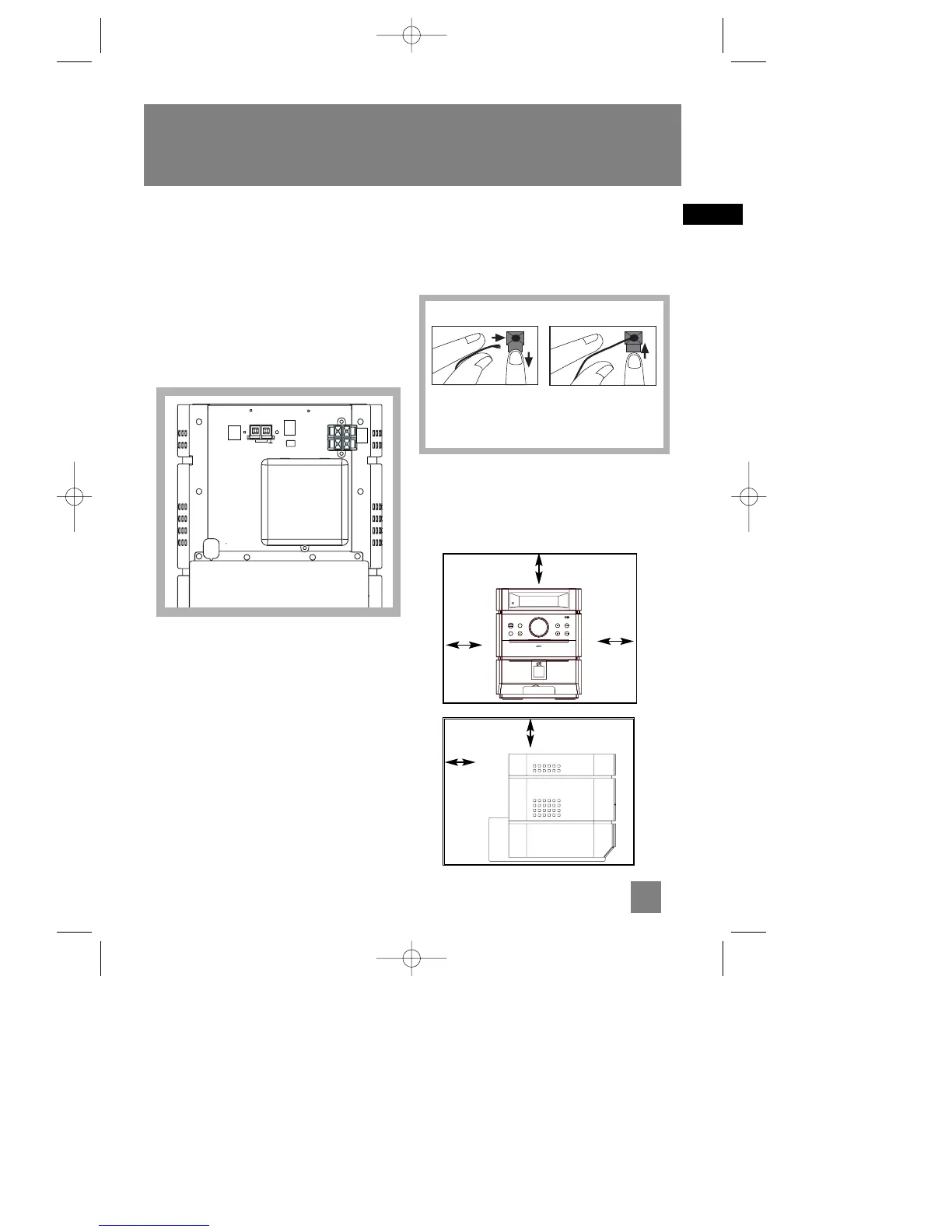

Back View
1. FM Antenna Jack
2. AM Loop antenna connector.
3. Main Speaker Jacks
Using the FM and AM Antennas
Before you use your audio system, you’ll want to
make sure both the FM and AM antennas are
positioned properly. Connect the FM antenna to
the FM connector on the back of the unit. Uncoil
it, making sure it is fully extended. (you may even
want to tape it to the wall behind the unit if pos-
sible. The higher the better.)
You’ll also need to connect the AM antenna loop
to the back of the unit if you listen to AM
stations. Rotate the AM loop antenna for better
reception.
Connecting the Speakers
Each speaker has a black (negative) and a red
(positive) jack. When connecting the speakers,
match the red wires to the red jacks and the
black wires to the black jacks.
Installation
To ensure sufficient ventilation, keep the spacings
shown below free from other surfaces:
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation
is completely removed from the
ends of the Antenna and
speaker wires at all connection
points.
Antenna and Speaker
Wire Connection
Push terminal tab down to
insert wire.
