CONNECTION

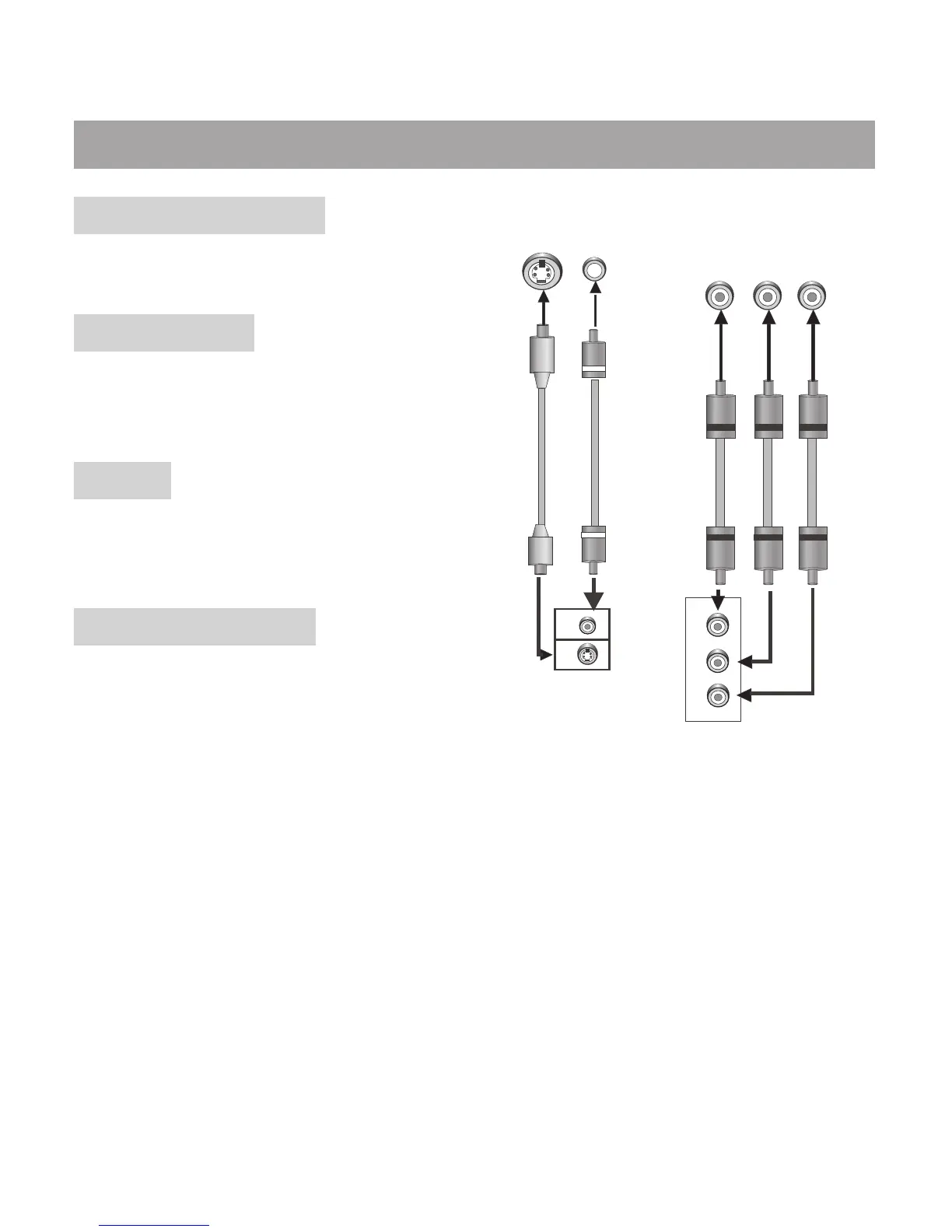

Video system connection
The following video output available for this
unit .
Composite Video
Use the AV cable (yellow terminal) to connect
composite video output of this unit to the
TV/monitorvideo input.
S-video
Use the S-video cable to connect the s-video
output of this unit to the TV/monitor S-video
input.
Component Video (YUV)
Use 3 -core AV cable to connect the
component output terminals of this unit to the
corresponding TV/monitor input.
Y
Cb/Pb
Cr/Pr
Component input
Y
Cr/PrCb/Pb
VIDEO
S-VIDEO
VIDEO
S-VIDEO
Video and
S-Video
Component video
output
?
?Which connection depends on the TV/monitor input terminal.
?Don't use the all connections at one time, otherwise the picture will be affected.
?Only the physical connection conforms to the video setting can produce the normal
picture (reference to the Video Setup in System Setup).
Note:
- 48 -
