RCA RV-9950

41
Laserdisc Player
You can connect a laserdisc or a second VCR to the VIDEO
connection. Using this connection, you can play a laserdisc in
stereo, surround sound.
This connection provides
• stereo or surround sound from the laserdisc
To use this connection, you
MUST HAVE
• (1) paired (red/white) stereo cable
• (1) single (yellow) video cables
To Connect

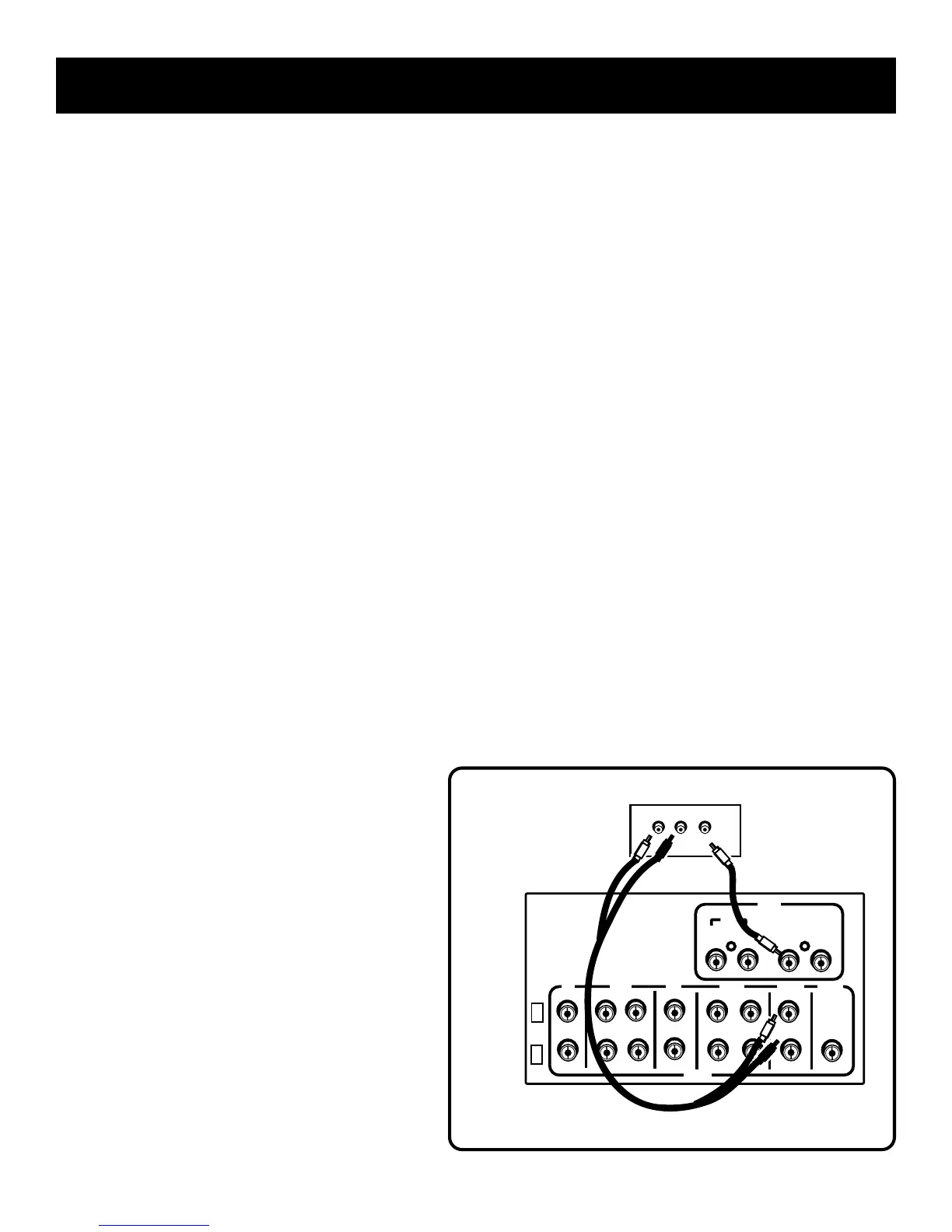

1. Connect the cables as shown in the
diagram below.
Using This Connection
To play the laserdisc
1. Press VCR2•LD.
2. Press PLAY.
Appendix A: Connecting the Receiver
CD
TAPE
TV VCR
SUB
WOOFER
IN OUT IN OUT
AUDIO
IN
VCR
OUT
MONITOR
VIDEO
VIDEO
VIDEO
IN OUT
L
R
AUDIO
RECEIVER
LASERDISC
PLAYER
LR
MONO
VIDEO
L
R
L
