First Things First
TV and VCR
(TV with Audio output Jacks)
This connection provides
• stereo or surround sound from TV
programs broadcast in stereo
• stereo, surround sound or mono
sound from a VCR
• viewing one channel on TV while
recording another channel
To use this connection, you
must have
• (1) paired (red/white) stereo cable
• (2) coaxial cables
To Connect

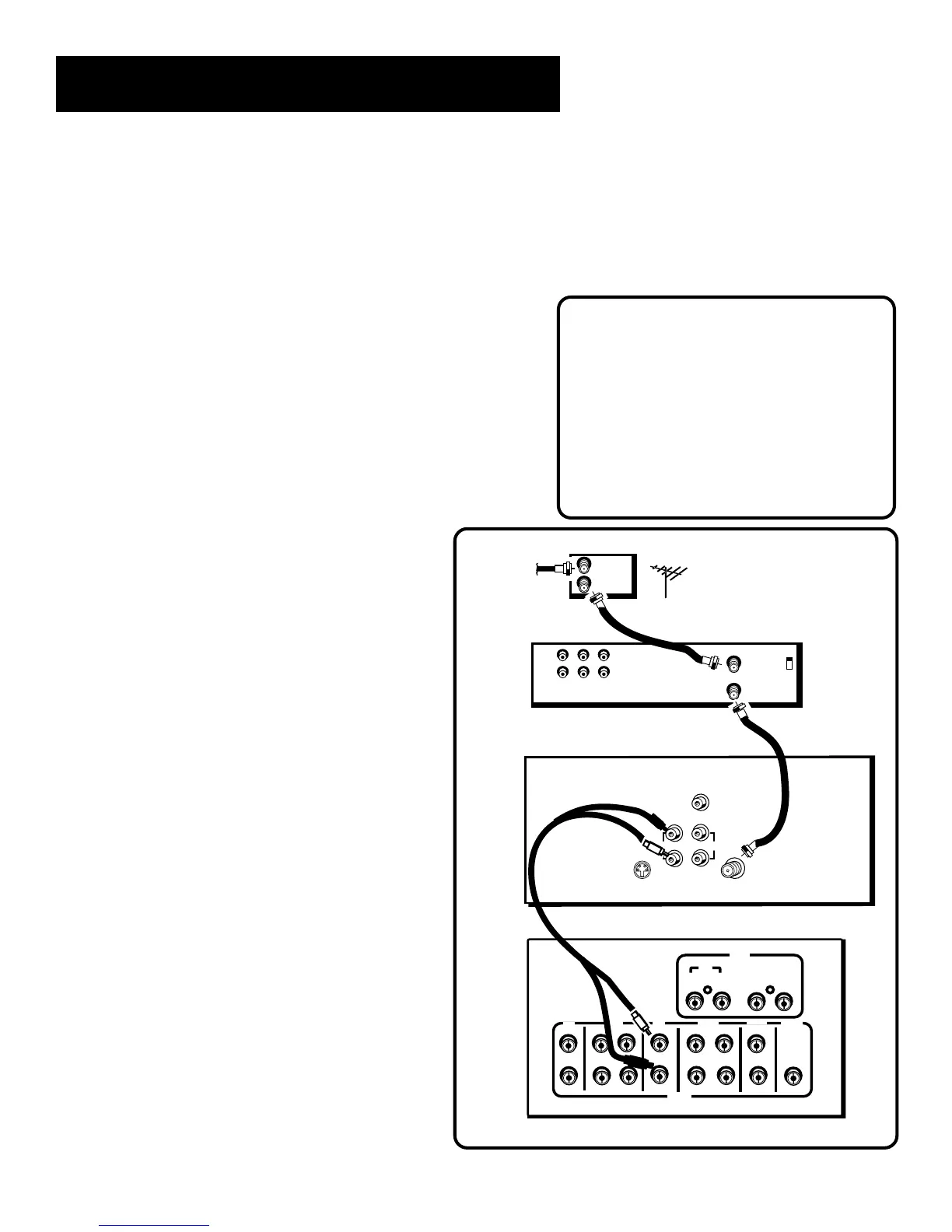

1. Connect the cables as shown in the
diagram to the right.
Using This Connection
To watch TV programs
1. Turn off the VCR.
2. Press TV and tune to a channel.
To watch or play a tape on the VCR
1. Press VCR1 on your remote
2. Press PLAY.
To record one program and watch
another
1. Press VCR1 on your remote and
tune to a channel.
2. Begin recording.
3. Make sure TV/VCR switch on the
VCR is set to TV.
4. Press TV and tune to a channel.
If your TV has more than one video
input, make sure the VCR and VIDEO
buttons tune the TV to the same
channel that the receiver monitor
out is plugged into.
Refer to the TV’s user’s guide for
more information.
For additional video device
connections, refer to Appendix A.
