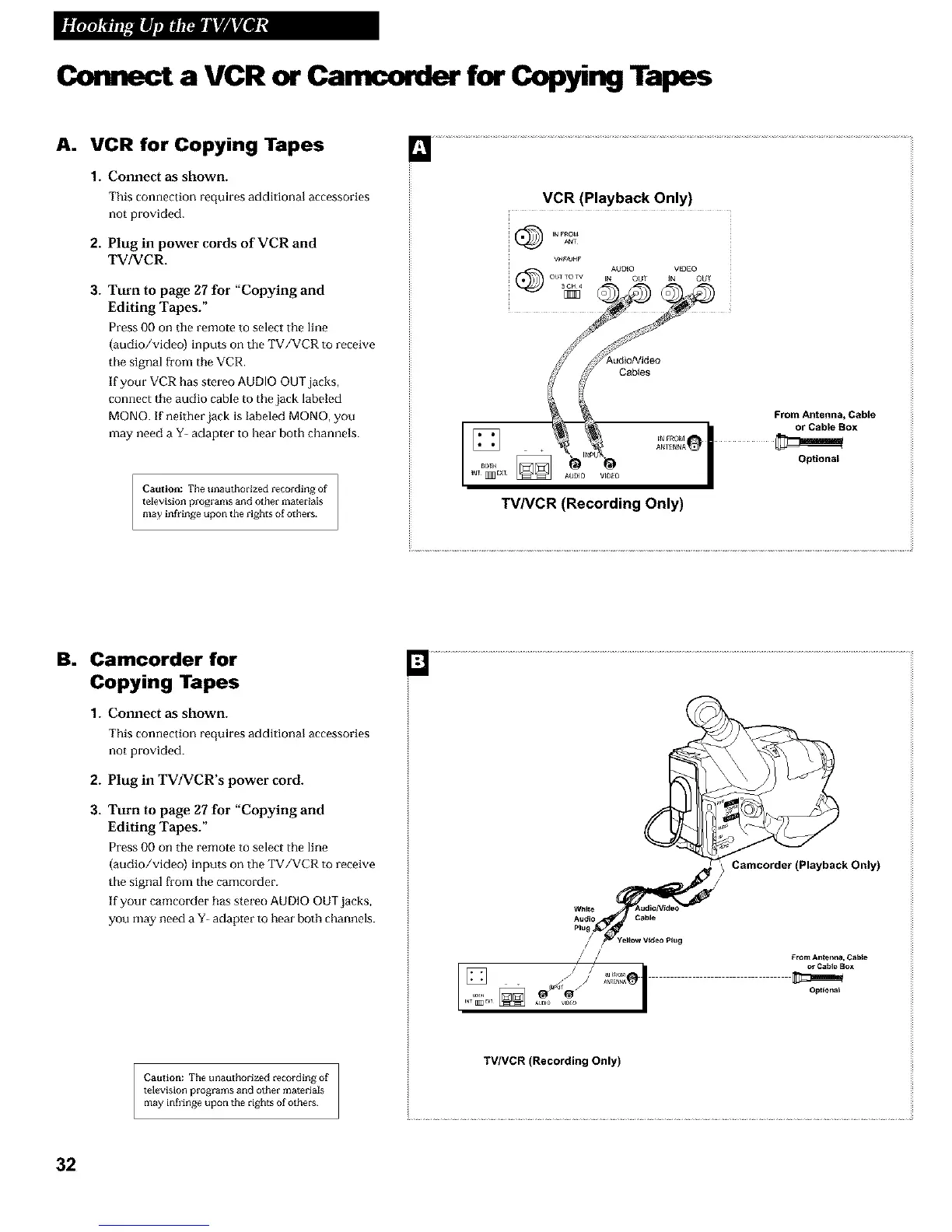

a VCR or Camcorder for Ccgying Tapes
A. VCR for Copying Tapes
1. Connect as shown.
This connection requires additional accessories
not provided.
2. Plug in power cords of VCR and
TV/VCR.
3. Turn to page 27 for "Copying and
Editing Tapes."
Press 00 on the remote to select the line
(audio/video) inputs on the TV/VCR to receive
the signal from tile VCR.
If your VCR has stereo AUDIO OUT jacks,
connect tile audio cable to the jack labeled
MONO. If neither jack is labeled MONO, you
may need a Y- adapter to hear both channels.
Caution: The unauthorized lecording of
television pl ograms and other materials
may infringe upon the lights of others.
VCR (Playback Only)
i (_ IN woM
A_r
V_/_HV
TV/VCR (Recording Only)
B. Camcorder for
Copying Tapes
1. Connect as shown.
This connection requires additional accessories
not provided.
2. Plug in TV/VCR's power cord.
3. Turn to page 27 for "Copying and
Editing Tapes."
Press 00 on the remote to select the line
(audio/video) inputs on tile TV/VCR to receive
the signal from the camcorder.
If your eamcorder has stereo AUDIO OUT jacks,
you may need a Y- adapter to hear both channels.
Caution: The unauthorized recording of
television pl ograms and other materials
may infringe upon the rights of others
WhRe
Audio Cable
Plug
/
/ / FrOm Antenna, Cable
( ?
Camcorder (Playback Only)
TV/VCR (Recording Only)
32
