RCA T13082

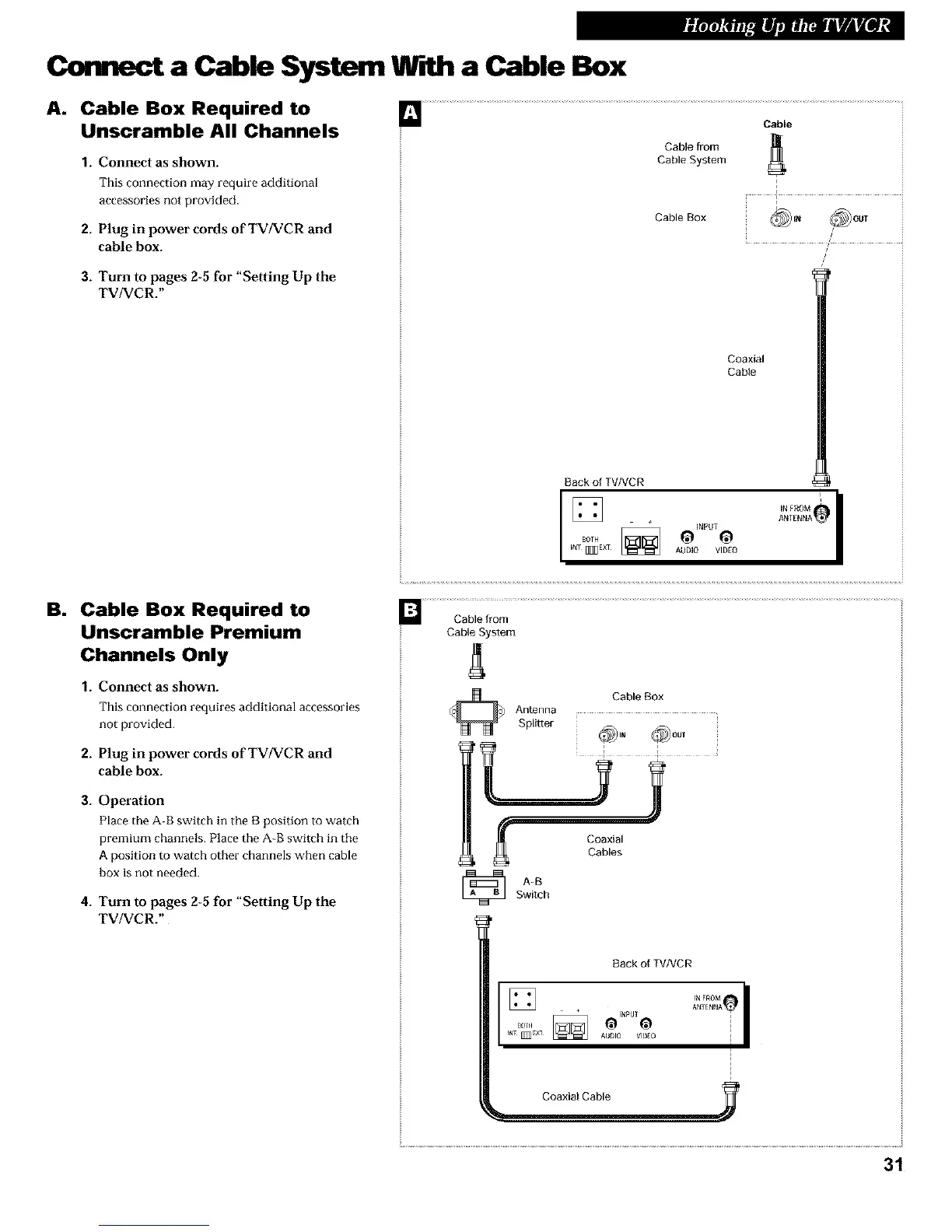

Connect a Cable System ViFd_ha Cable Box
A. Cable Box Required to
Unscramble All Channels
1. Connect as shown.
This connection may require additional
accessories not provided.
2. Plug in power cords of TVNCR and
cable box.
3. Turn to pages 24 for "Setting Up the
TV/VCR."
Cable from
Cable System
Cable Box
Coaxial
Cable
Back of TV/VCR
[] '°'°°°I
ANTENNA_
+ INPUT
_T[_EXT AUDIO VIDEO
B. Cable Box Required to
Unscramble Premium
Channels Only
1.
2.
Connect as shown.
This connection requires additional accessories
not provided.
Plug in power cords of TV/VCR and
cable box.
3.
Operation
Place the A-B switch in the B position to watch
premium channels. Place the AB switch in the
A position to watch other channels when cable
box is not needed.
4. Turn to pages 24 for "Setting Up the
TV/VCR."
Cable System
Cable Box
Antenna
Splitter
_ A-BSwitch
Back of TV/VCR
Ab_T_NNA
I_r _[xl AUDIO VIBEO
1
i
i
31
