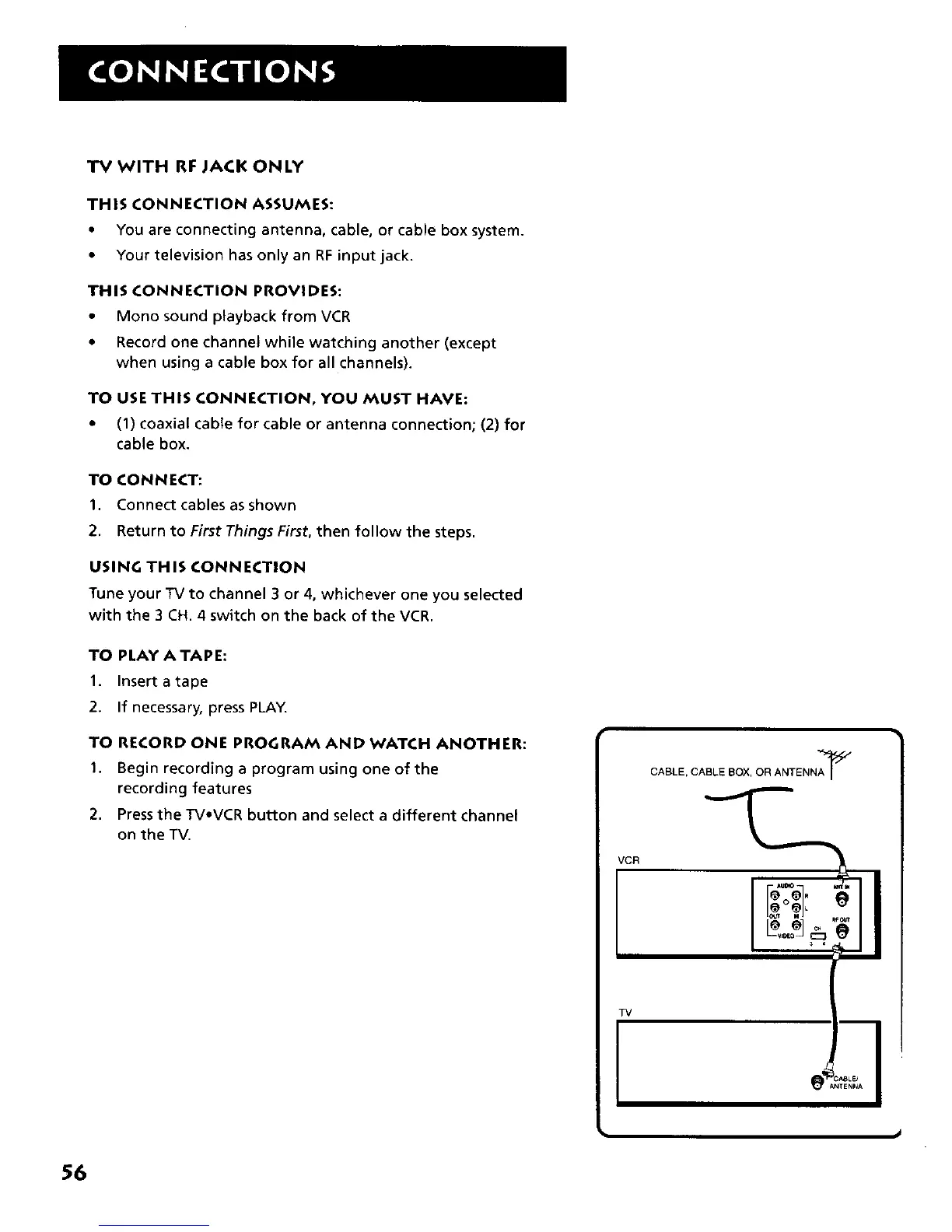

RCA VR634HF - TV with RF Jack Only

TV WITH RF JACK ONLY
THIS CONNECTION ASSUMES:
• You are connecting antenna, cable, or cable box system.
• Your television has only an RF input jack.
THIS CONNECTION PROVIDES:
• Mono sound playback from VCR
• Record one channel while watching another (except
when using a cable box for all channels).
TO USE THIS CONNECTION, YOU MUST HAVE:
• (I) coaxial cable for cable or antenna connection; (2) for
cable box.
TO CONNECT:
1. Connect cables as shown
2. Return to First Things First, then follow the steps.
USING THIS CONNECTION
Tune your TV to channel 3 or 4, whichever one you selected
with the 3 CH. 4 switch on the back of the VCR.
TO PLAY A TAPE:
1. Insert atape
2. If necessary, press PLAY.
TO RECORD ONE PROGRAM AND WATCH ANOTHER:
1. Begin recording a program using one of the
recording features
2. Press the TV,VCR button and select a different channel
on the TV.
56
VCR
TV
CABLE, CABLE BOX, OR ANTENNA_
