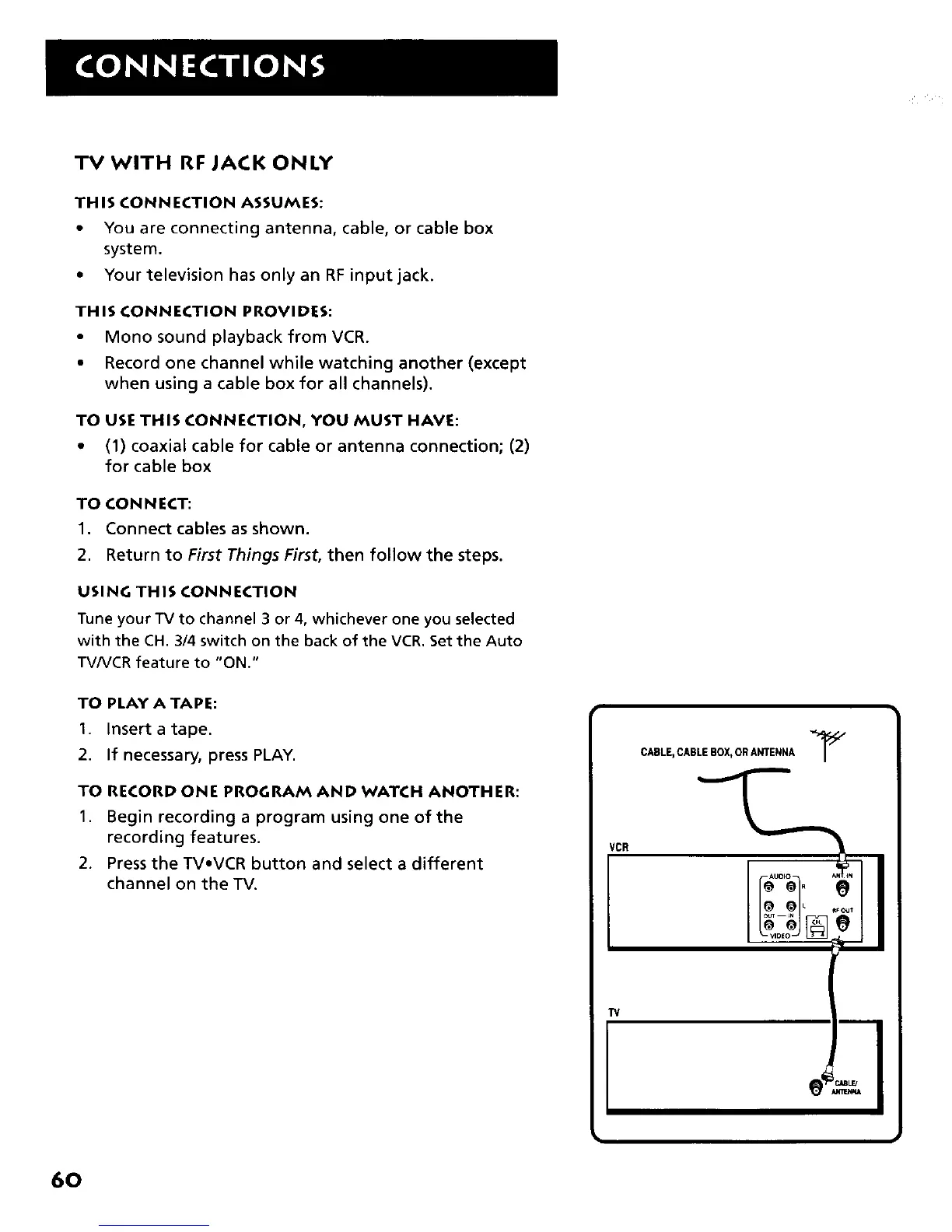

TV WITH RF JACK ONLY
THIS CONNECTION ASSUMES:
• You are connecting antenna, cable, or cable box
system.
• Your television has only an RF input jack.
THIS CONNECTION PROVIDES:
• Mono sound playback from VCR.
• Record one channel while watching another (except
when using a cable box for all channels).
TO USE THIS CONNECTION, YOU MUST HAVE:
• (1) coaxial cable for cable or antenna connection; (2)
for cable box
TO CONNECT:
1. Connect cables as shown.
2. Return to First Things First, then follow the steps.
USING THIS CONNECTION
Tune your TV to channel 3 or 4, whichever one you selected
with the CH. 314switch on the back of the VCR. Set the Auto
TV/VCR feature to "ON."
TO PLAY A TAPE:
I. Insert a tape.
2. If necessary, press PLAY.
TO RECORD ONE PROGRAM AND WATCH ANOTHER:
1. Begin recording a program using one of the
recording features.
2. Press the TV.VCR button and select a different
channel on the TV.
CABLE,CABLE BOX,OR ANTENNA "_
VCR
in
_ L eFou T
.....
"IV
6O
