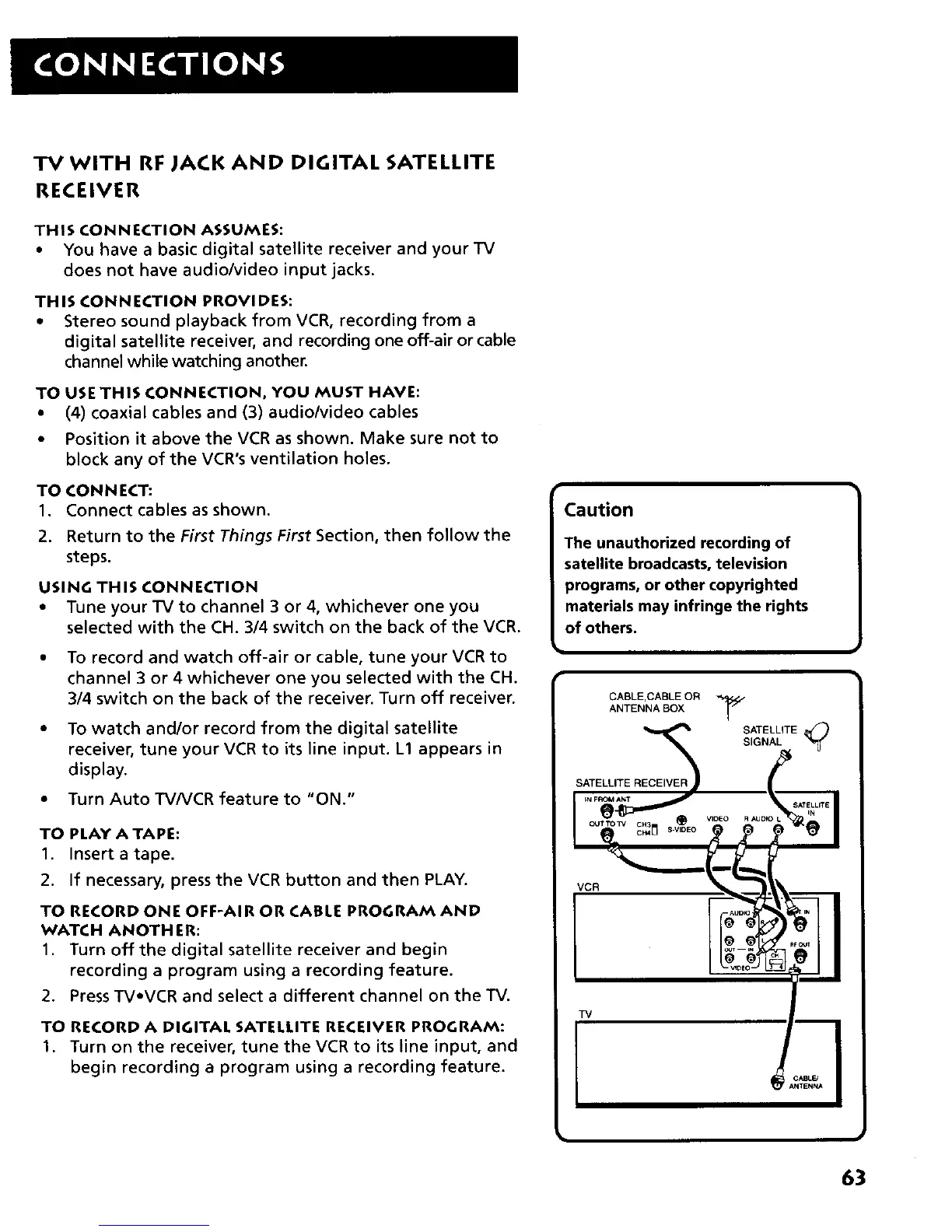

TV WITH RF JACK AND DIGITAL SATELLITE
RECEIVER
THIS CONNECTION ASSUMES:
• You have a basic digital satellite receiver and your TV
does not have audio/video input jacks.
THIS CONNECTION PROVIDES:
• Stereo sound playback from VCR, recording from a
digital satellite receiver, and recording one off-air or cable
channel while watching another.
TO USE THIS CONNECTION, YOU MUST HAVE:
• (4) coaxial cables and (3) audio/video cables
• Position it above the VCR as shown. Make sure not to
block any of the VCR's ventilation holes.
TO CONNECT:
1. Connect cables as shown.
2. Return to the First Things First Section, then follow the
steps.
USING THIS CONNECTION
• Tune your TV to channel 3 or 4, whichever one you
selected with the CH. 314 switch on the back of the VCR.
• To record and watch off-air or cable, tune your VCR to
channel 3 or 4 whichever one you selected with the CH.
3/4 switch on the back of the receiver. Turn off receiver.
To watch and/or record from the digital satellite
receiver, tune your VCR to its line input. L1 appears in
display.
Turn Auto TVNCR feature to "ON."
TO PLAY A TAPE:
1. Insert a tape.
2. If necessary, press the VCR button and then PLAY.
TO RECORD ONE OFF-AIR OR CABLE PROGRAM AND
WATCH ANOTHER:
1. Turn off the digital satellite receiver and begin
recording a program using a recording feature.
2. Press TV,VCR and select a different channel on the TV.
TO RECORD A DIGITAL SATELLITE RECEIVER PROGRAM:
1. Turn on the receiver, tune the VCR to its line input, and
begin recording a program using a recording feature.
Caution
The unauthorized recording of
satellite broadcasts, television
programs, or other copyrighted
materials may infringe the rights
of others.
CABLE,CABLE OR
ANTENNA BOX
_'GATNELUTE_
j
TV
63
