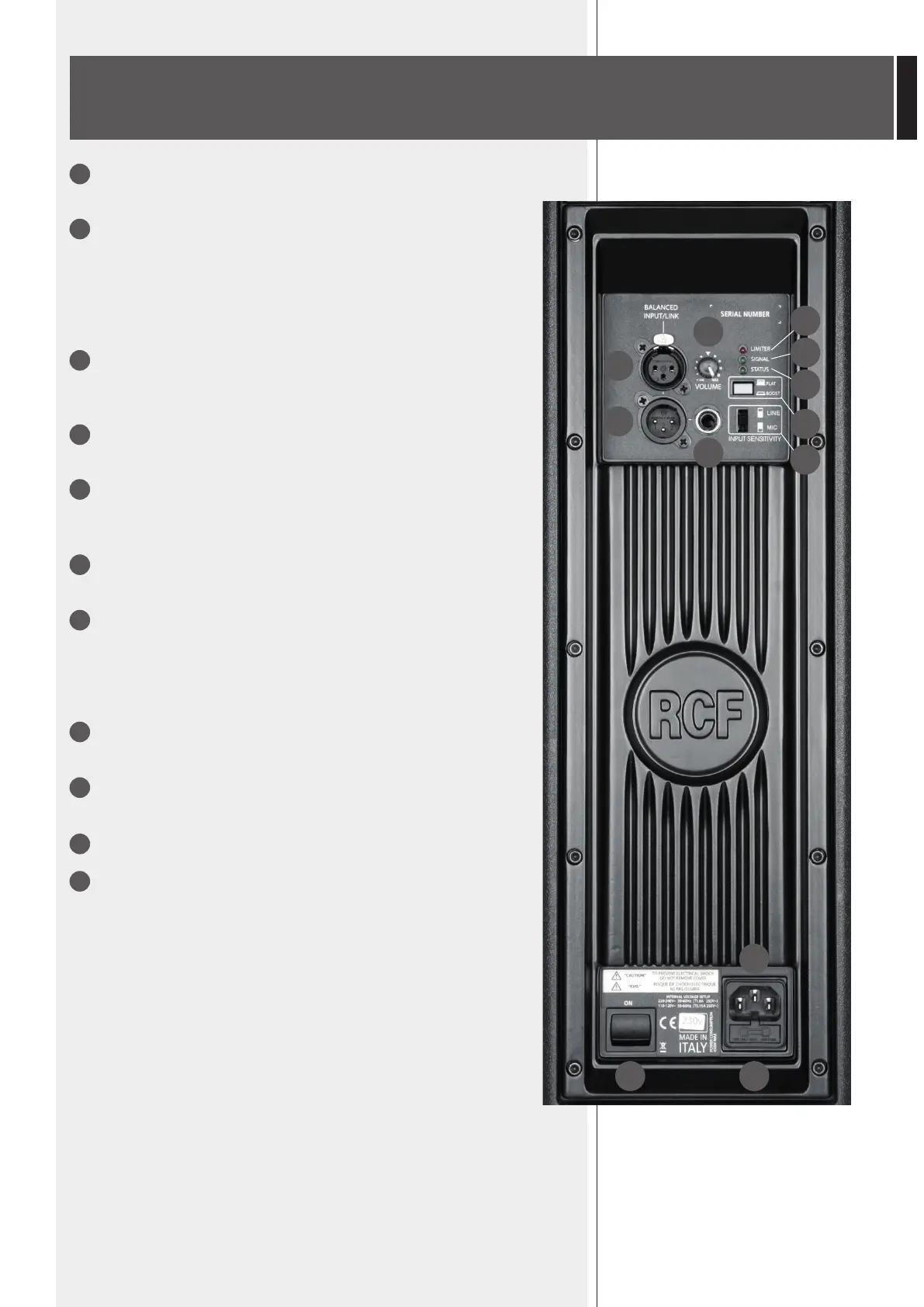

REAR PANEL FEATURES AND CONTROLS
JACK/FEMALE XLR INPUTS (BAL/UNBAL)
The system accept jack or XLR input connectors.
LIMITER LED
The amplifier has a built in limiter circuit to prevent clipping of the
amplifiers or overdriving the transducers. When the soft clipping circuit is
active the LED blinks orange. It is okay if the limit LED blinks occasionally.
If the LED blinks frequently or lights continuously, turn down the signal
level.
SIGNAL LED
The signal indicator lights green if there is signal present on the main
XLR input
STATUS LED
The status indicator flash if the temperature protection is active.
MALE XLR SIGNAL OUTPUT
The output XLR connector provides a loop trough for speakers daisy
chaining.
VOLUME CONTROL
Adjust the amplifier volume.
FLAT/BOOST SWITCH
Set the flat or boost equalization. “Boost” equalization is a loudness
recommended for background music applications,
when the system plays at a low level. For all other applications “Flat”
equalisation is recommended.
INPUT SENSITIVITY SWITCH. Position the switch in LINE to use a line
level source (0 dB) or MIC to use a microphone source.
IEC AC SOCKET
The IEC AC socket connect the power cord to the socket.
FUSE CARRIER. Mains fuse housing.
POWER MAIN SWITCH
The power switch turns the AC power ON and OFF.
