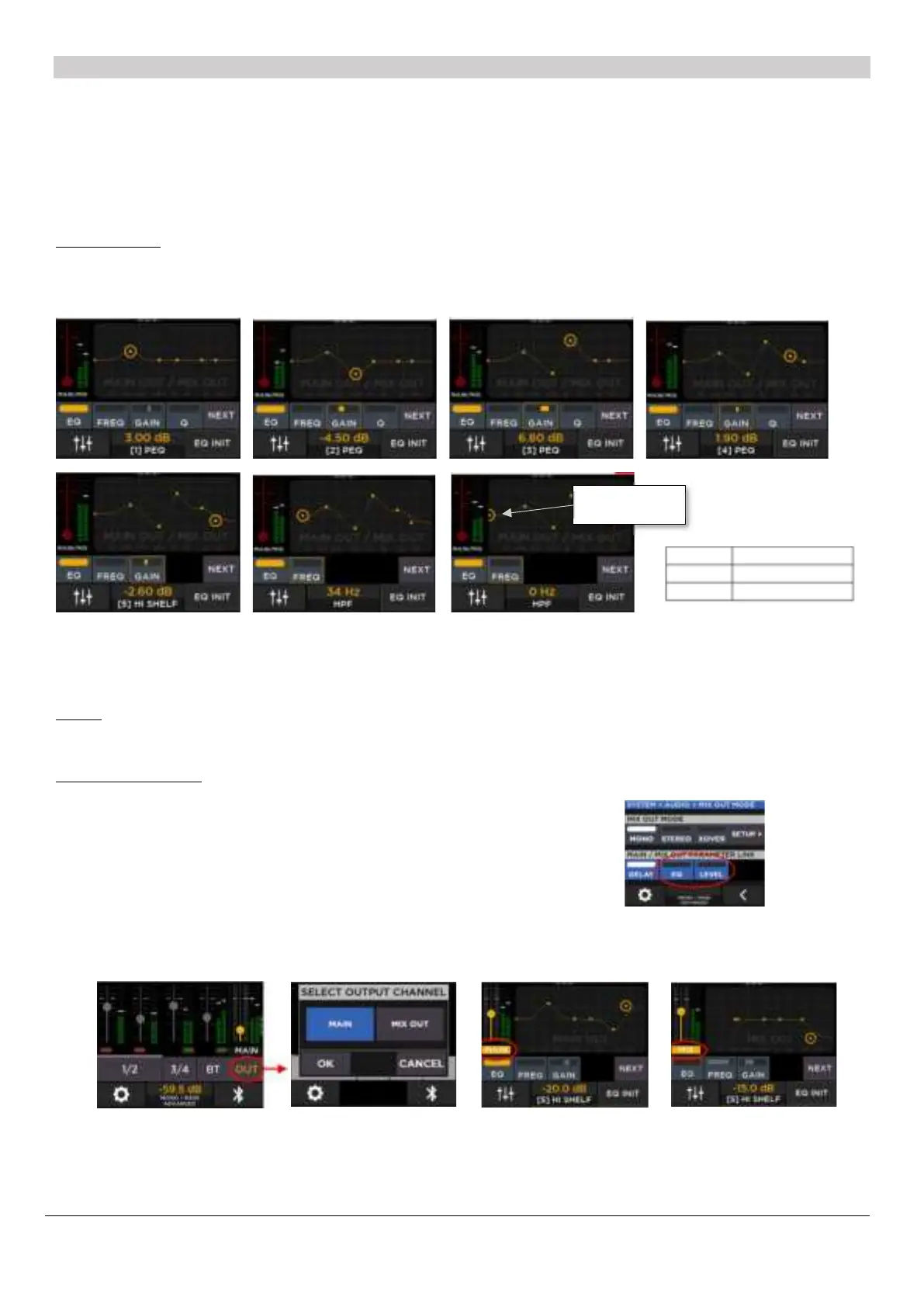

RCF spa ART 9-AX Reference Guide 8
Output channel EDIT
A stereo EQ section is available on both MIX OUT and MAIN outputs; It can be accessed from Mixer view by pressing the MAIN button.
Depending on output settings, this page can control both the MAIN/MIX sections, with ganged controls, or the MAIN only, or the MIX OUT only.
Current mode is also shown in the EQ background.
The default and most typical use is in MAIN/MIX mode.
MAIN/MIX control
The output EQ section includes an high-pass filter (HPF), 4 fully parametric peak filters (PEQ 1-4), and a Hi Shelf filter (HI SHELF); by clicking on
the NEXT buttons, the screen cycles through these 6 filters, with current filter shown below the numeric value (center low of the screen).
An EQ INIT button is available, and a global EQ on/off button. The MAIN output level is also available on the left.
Please note that when the HPF Frequency control is set to zero (leftmost value), the HPF is bypassed.
Gesture: A top-to-bottom gesture returns to Mixer View.
MAIN or MIX OUT control
Two parameter link enables can affect the Output channel EDIT page.
In the SETTINGS > SYSTEM SETTINGS > AUDIO SETUP > MIX OUT MODE page (see image on the
right): when output EQ and Level Pamater Link are not both enabled, then the User Interface
offers separate control pages for MAIN and MIX outputs.
When clicking the OUT button on Mixer View, a selection is required between MAIN output edit and MIX OUT edit (see below). The fader label
changes accordingly.
MAIN MIX OUT
HPF freq = 0 Hz
HPF OFF, 20…1000 Hz
PEAK Full range
HI SHELF Full range
