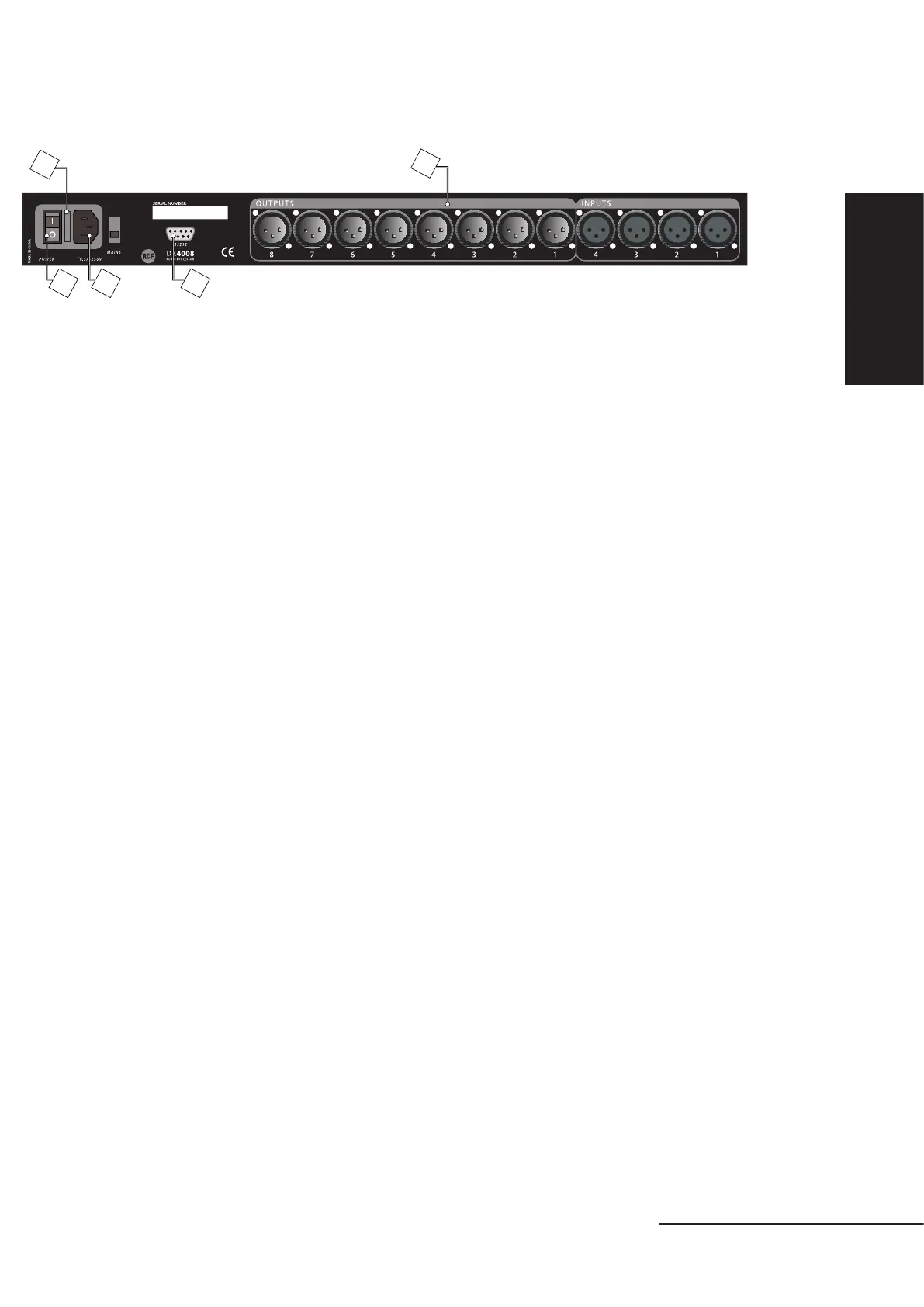

REAR PANEL FUNCTIONS

1. Main Power - Connects via a standard IEC socket. A compatible power cord is supplied with

the unit. The voltage input is either 115VAC or 230VAC and is clearly speciﬁed on the unit. Voltage

requirement has to be stated upon ordering.

2. Main Fuse - T0.5A-250V for 115VAC and T0.25A-250V for 230VAC.

Time delay type

3. Power switch - Switches On/Off.

4. RS232 - a standard female DB9 socket for PC connection.

5. XLR input and outputs - Separate 3-pin XLR connectors are provided for each audio input

and output.

All imputs and outputs are balanced:

Pin 1 - ground (shield)

Pin 2 - hot (+)

Pin 3 - cold (-)
