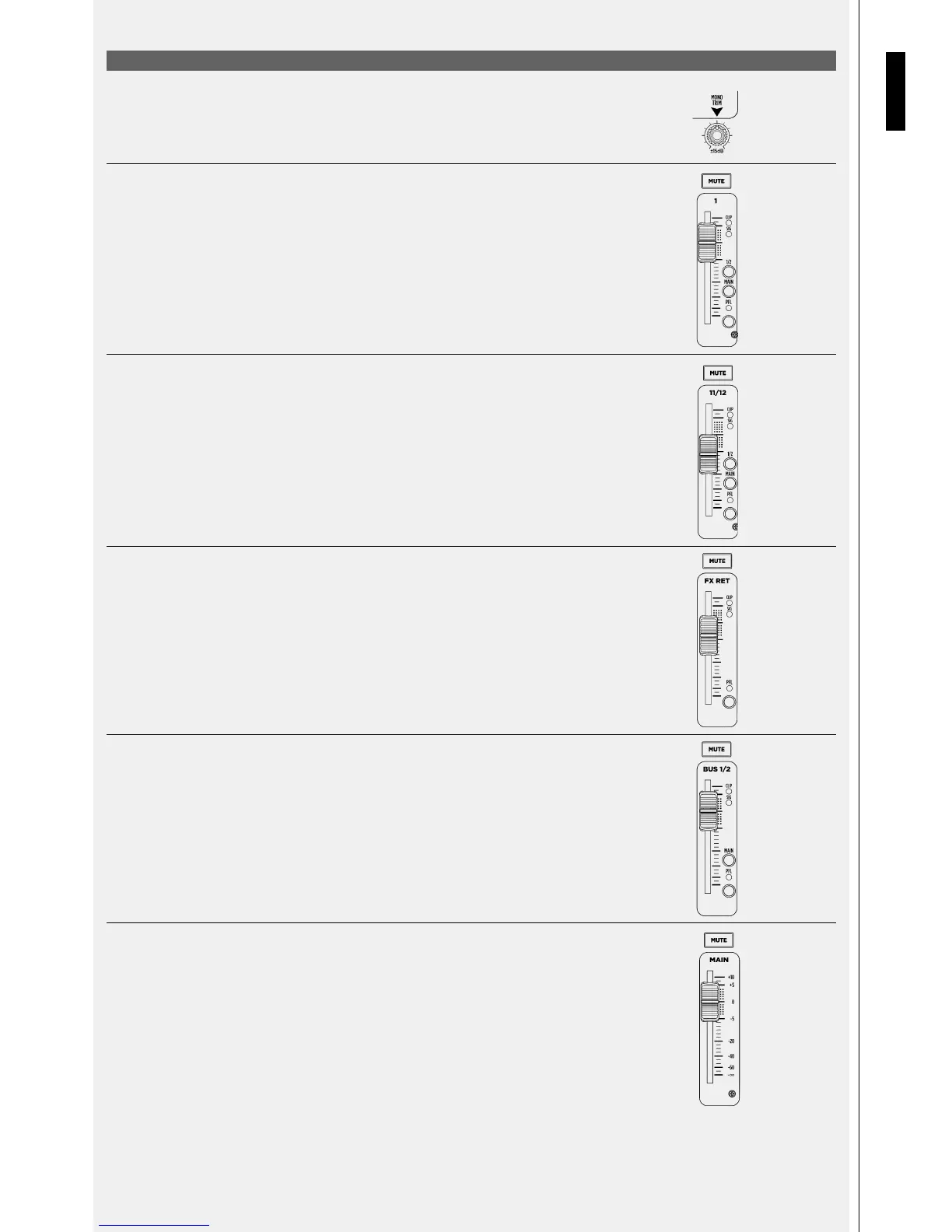

FRONT PANEL FUNCTIONS
[24] MONO TRIM
The MONO TRIM control allows balancing of the level of MONO OUT with a range of + or - 15dBs.
[25] MONO CHANNELS FADERS SECTION
This section allows control of the level of the 6 mono input channels and their routing to the output.
Each one of the faders has several control buttons:
MUTE: the MUTE button when pressed inhibits the signal to flow to the output bus or main mix paths.
1/2 and MAIN buttons positioned on the right side of each fader allow the signal to be routed
respectively to STEREO BUS 1/2 or MAIN MIX.
The PFL button allows listening to the signal present on the channel through speakers connected to the
CTRL ROOM OUTPUT (see section 40 of the back panel description) or through headphones connected
to HEADPHONES OUTPUT (see section 15).
[26] STEREO CHANNELS FADERS SECTION
Same function as the MONO CHANNELS FADERS section applied to stereo channels.
[27] FX RET FADER
This fader controls the level of the signal coming from the internal Z.CORE DSP FX. The MUTE
button when pressed inhibits the signal flow to the main mix path. The PFL button when pressed
allows listening to the signal present in FX return channel through speakers connected to the CTRL
ROOM OUTPUT (see section 40 of the back panel description) or through headphones connected to
HEADPHONES OUTPUT (see section 15).
[28] BUS FADER
The faders BUS 1/2 controls the level of this stereo bus out. BUS 1/2 can be fed with each one of the
input channels to create a stereo audio group routed to the physical output BUS1 – BUS2 (see section
39 on back panel description). The MUTE button when pressed inhibits the signal flow to the BUS
output or main mix paths. The MAIN button positioned close the BUS fader routes the BUS to the MAIN
MIX. The PFL button when pressed allows listening to the signal present into BUS through speakers
connected to the CTRL ROOM OUTPUT (see section 40 of the back panel description) or through
headphones connected to HEADPHONES OUTPUT (see section 15).
[29] MAIN FADER
The MAIN fader controls the level of the MAIN MIX and the MONO signal (refer to the section 36 of
the back panel description).
