RIGGING PROCEDURE
Installation and setup should only be carried out by qualified and authorized personnel observing the valid national Rules for
the Prevention of Accidents (RPA).
It is the responsibility of the person installing the assembly to ensure that the suspension/fixing points are suitable for the
intended use.
Always carry out a visual and functional inspection of the items before use. In the event of any doubt as to the proper
functioning and safety of the items, these must be withdrawn from use immediately.
WARNING
The steel wires between the locking pins of the cabinets and rigging components are not intended to carry any load. The
cabinet’s weight must only be carried by the Front and Splay/Rear links in conjunction with the front and rear rigging strands of
the loudspeaker cabinets and the Flying frame. Ensure all Locking pins are fully inserted and securely locked before lifting any
load.
In the first instance use RCF Easy Shape Designer software to calculate the proper set up of the system and to check the safety
factor parameter.

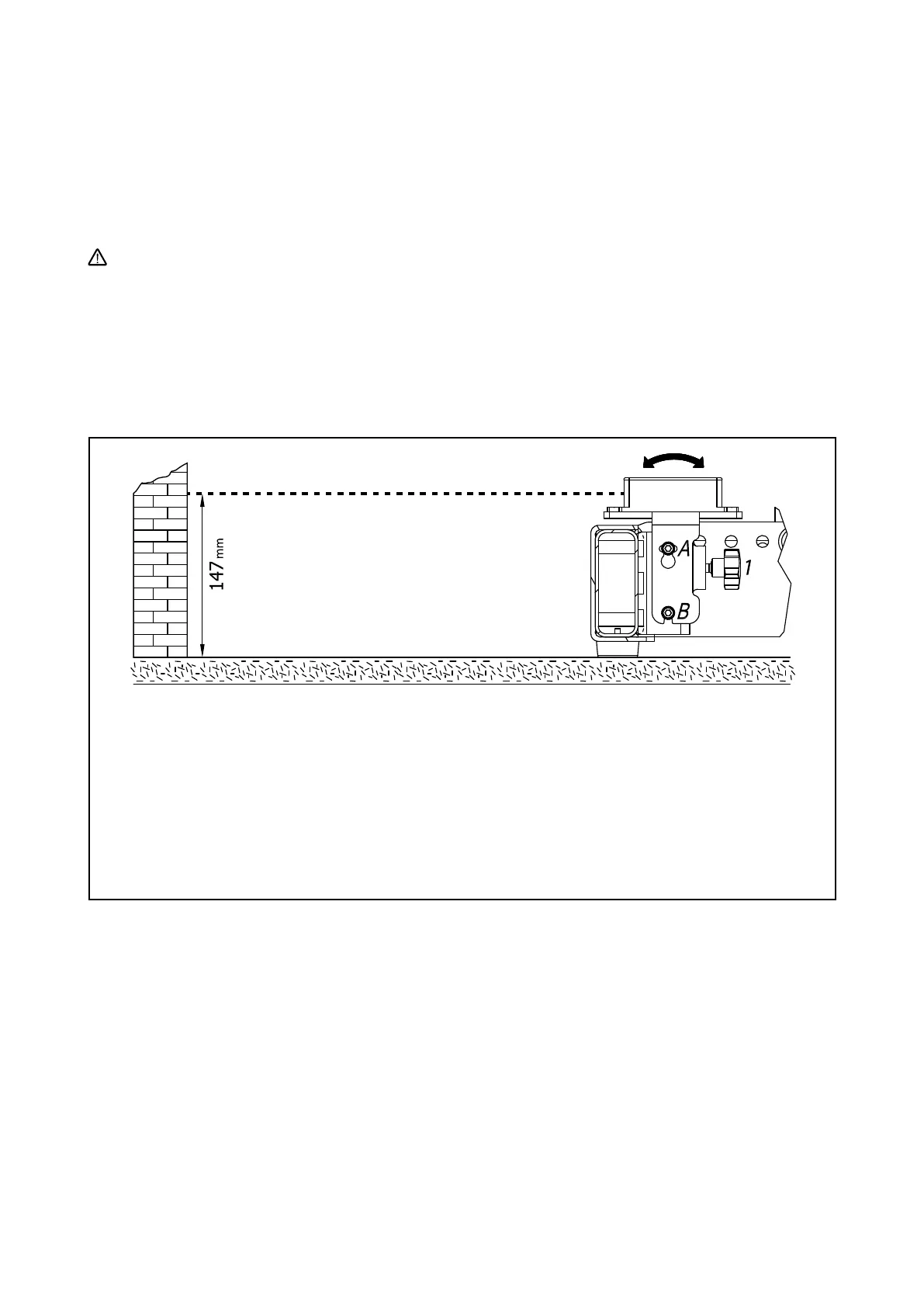

INCLINOMETER BRACKET MOUNTING
1. UNSCREW BOTH M6 SCREWS “A” AND “B”
2. SET THE PROPER INCLINATION UNSCREWING OR SCREWING THE KNOB:
POINTING THE LASER TOWARDS THE WALL,
THE DISTANCE BEETWEEN THE GROUND AND THE LASER BEAM MUST BE 147 mm
3. TIGHTEN BOTH M6 SCREWS “A” AND “B”
LASER
Note that using Rd-Net to set up the system, there will be the possibility to monitor the angles of the flybar and of each single
speaker and in case using 1 pick-up point, appropriately calculated by RCF Easy Shape Designer, the cluster will take the proper
aim and angles without the need of the inclinometer.
