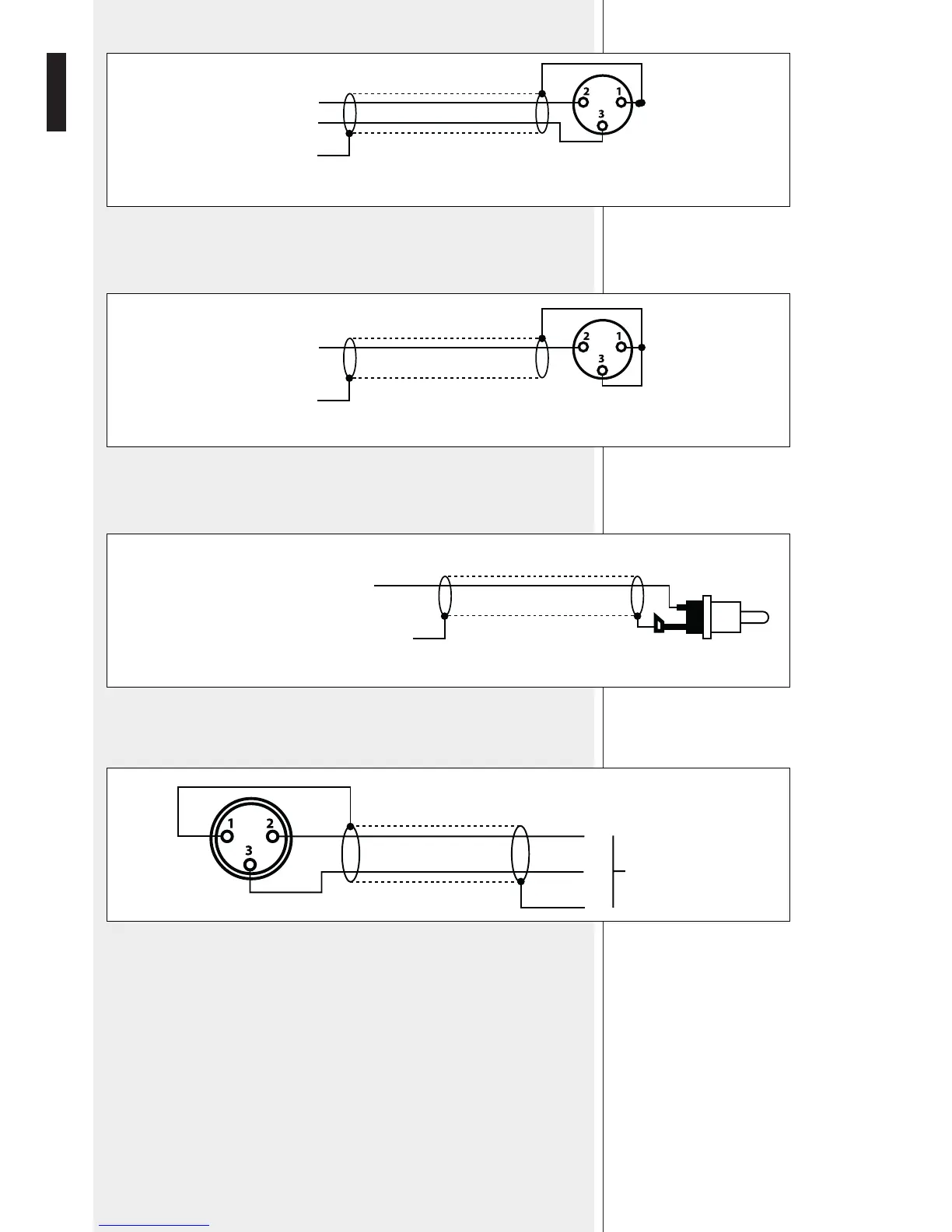

Connection to the XLR socket (balanced signal).
3 - pin XLR socket
BALANCED SIGNAL
HOT
COLD
GND
INPUT
INPUT
Connection to the XLR socket (unbalanced signal).
Do not turn Phantom Power on.
3 - pin XLR socket
GND
GND
RCA plug
UNBALANCED SIGNAL
AUDIO SIGNAL (RIGHT OR LEFT CHANNEL)
Connection of the RCA plugs.
Connection to the main audio outputs (XLR plug, balanced signal.
BALANCED SIGNAL
OUTPUT
Do not turn Phantom Power on.
HOT
COLD
GND
