10 11
Visit: www.rdlmeters.com Call: 01803 697 600
DISPLAY REMARKS FACTORY DEFAULTS
Factory
Defaults
No Yes
If Factory Defaults are reset then the following parameters are changed:
a Current Credit £0.00
b Emergency Credit Left £1.00
c Current Debt £0.00
d Total Credit £0.00
e Total Coin Counts 0
f Standing Charge per 24 hours £0.00
g Rate 1 unit cost £0.15
h Rate 2 unit cost £0.15
i Emergency Credit Value £1.00
j Emergency Credit availability point £0.50
k Reverse Energy Detection “RED” when displayed "RED" Not Displayed
4.3 Date and Time
The following date and time parameters are settable: Day, Month, Year, Hours, Minutes.
4.4 Zero Credit
Manually reset Debt and Credit to zero.
4.5 Set Credit
Manually set credit in the range of £0 to £999.99.
4.6 Emergency Credit Value
The emergency credit is settable in the range of £0 to £99.99.
4.7 Emergency Credit Available Point
The emergency credit available point is settable in the range of £0 to £99.99.
4.8 Cost per Unit for Rate 1 and 2
The cost per unit of electricity for each of the 2 rates is settable in the range £0 to £99.99.
4.9 Standing Charge per 24 hours
The standing charge is settable in the range £0 to £99.99 and is factory set to deduct the value
set every 24 hours at midnight.
4.10 Operational Mode Meter Timer
The meter mode setting operates at cost per kWh unit of electricity or timer mode at cost per
time of electricity.
5. APPENDIX
5.1 Starting Current
The meter starts to register at 80mA.
5.2 Wiring Diagram and Mounting Template (shown overleaf)
The meter must be installed by a competent, qualified electrician to the standards that satisfy the
requirements of the current Institute of Electrical Engineers (IEE).
LOAD
NEUTRAL
LOAD
LIVE
SUPPLY
LIVE
SUPPLY
NEUTRAL
104
133
12
TOP
METER
ACCOMMODATES
SCREW SHANK UP
TO 5.2MM
Description
Wiring DIagram
Part No
M101-WD
Revison
0
Date Created
09/06/2016
LOAD
NEUTRAL
LOAD
LIVE
SUPPLY
LIVE
SUPPLY
NEUTRAL
104
133
12
TOP
METER
ACCOMMODATES
SCREW SHANK UP
TO 5.2MM
Description
Wiring DIagram
Part No
M101-WD
Revison
0
Date Created
09/06/2016

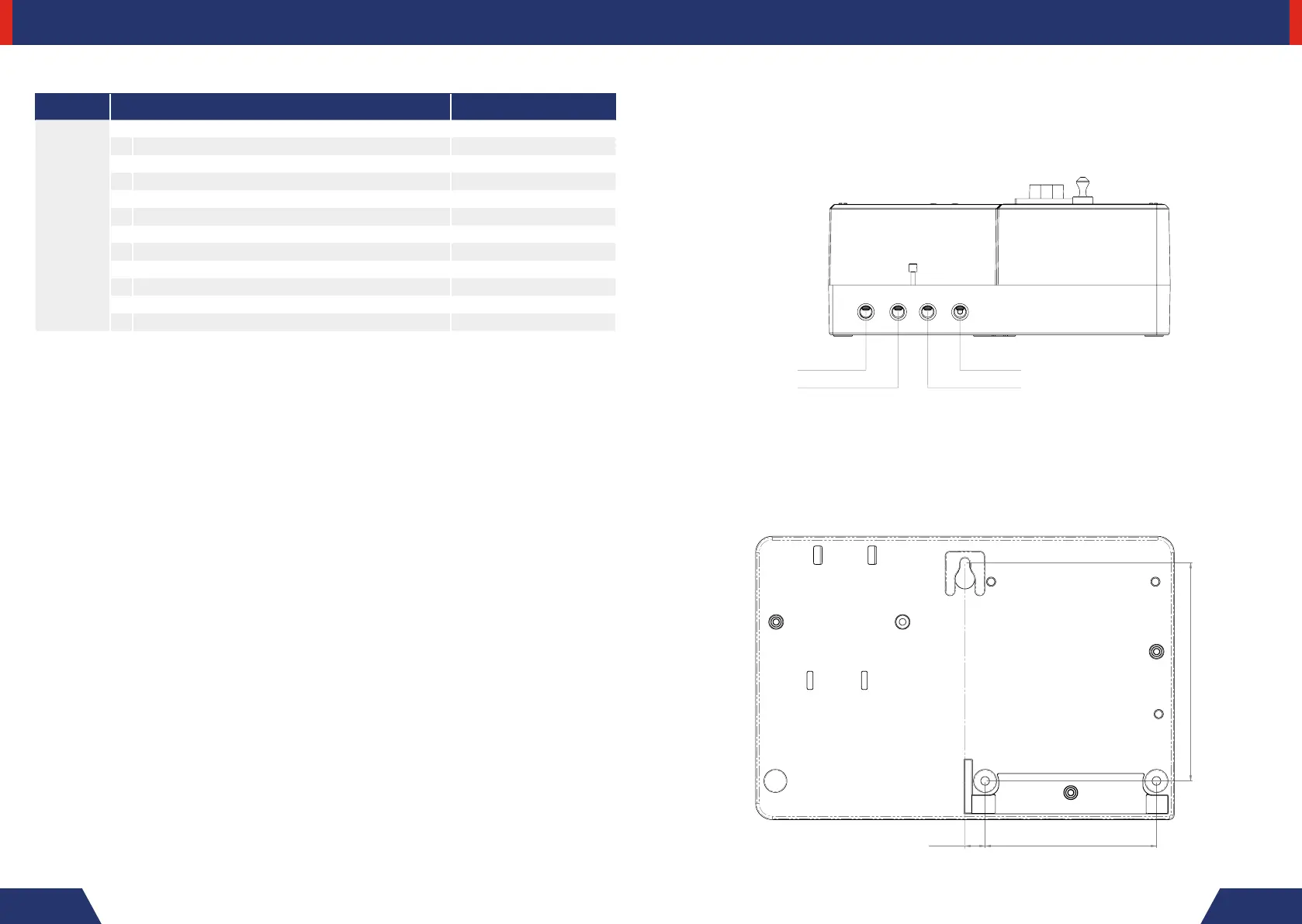

WIRING DIAGRAM AND MOUNTING TEMPLATE
WIRING DIAGRAM
WALL MOUNTING TEMPLATE
METER MODE METER MODE
4.2 Factory Defaults Reset
