Re US3 - Page 8

Re S.p.A. US3
Rev.12/04/11 5/23

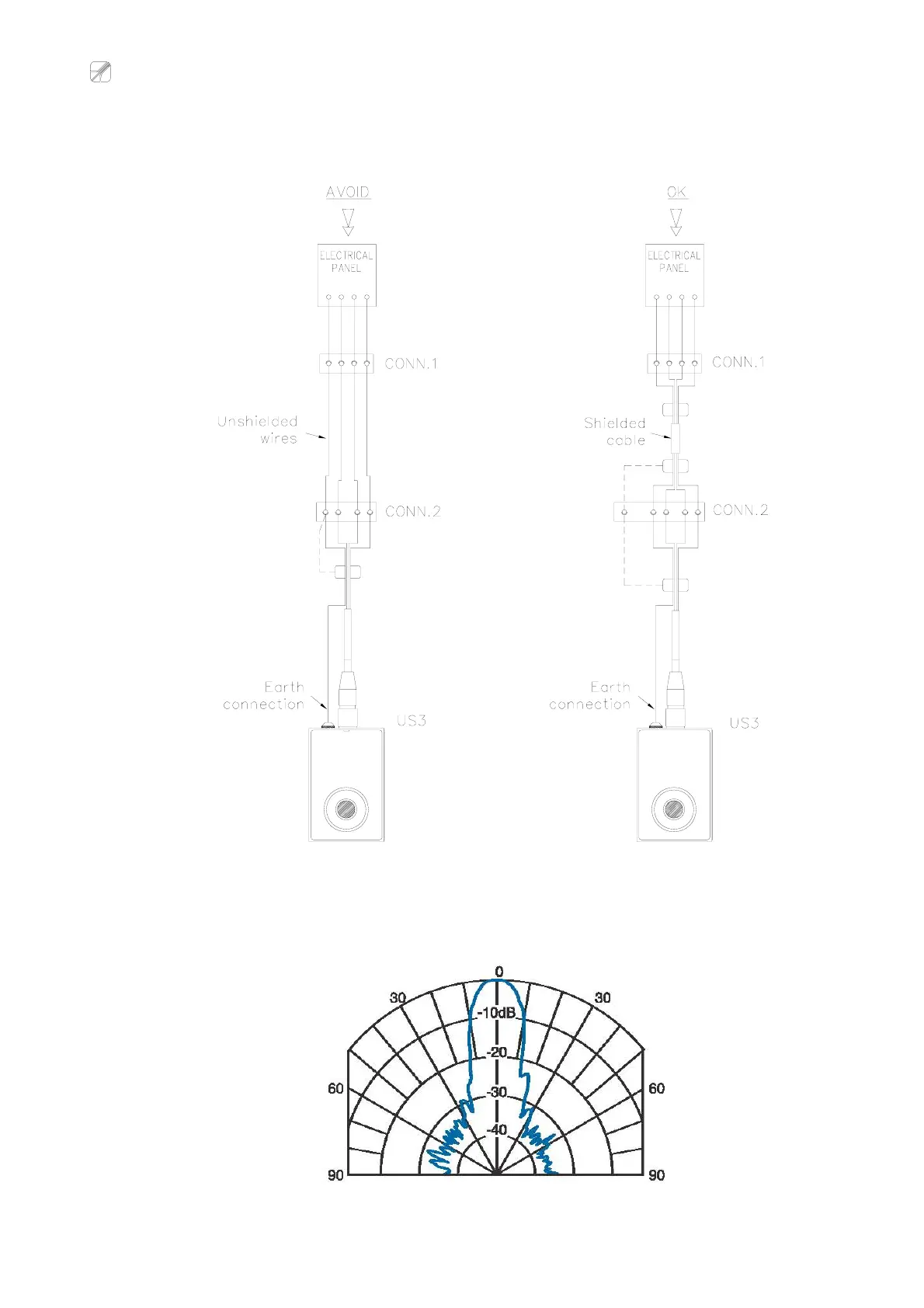

4. Avoid using single wires connections to the US3 cable, if it is possible.
5. Below is the sensor directivity graph, with an action cone of approximately +/-10°. Install the sensor so
that inside said cone there are no: objects other than the target, other ultrasound sources, draughts.
