Re US3 - Page 9

Re S.p.A. US3
Rev.12/04/11 6/23

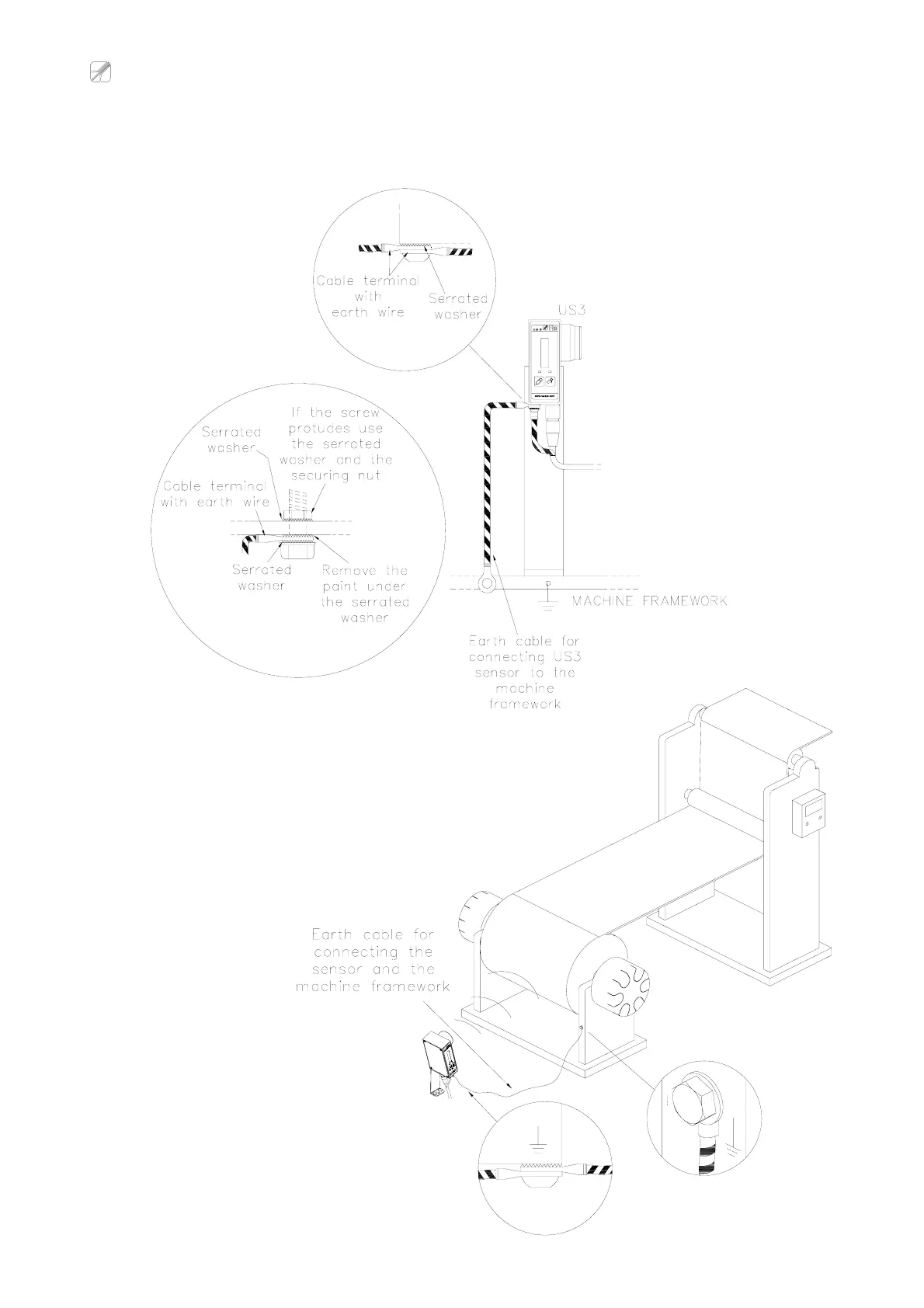

6. Use the metal bracket supplied to support the US3, making sure that the capsule is parallel with the
plane at a tangent to the surface to be measured. Connect the sensor body to the nearest machine
earth point with a suitable cable, as illustrated below.
