7
© 2006 Directed Electronics

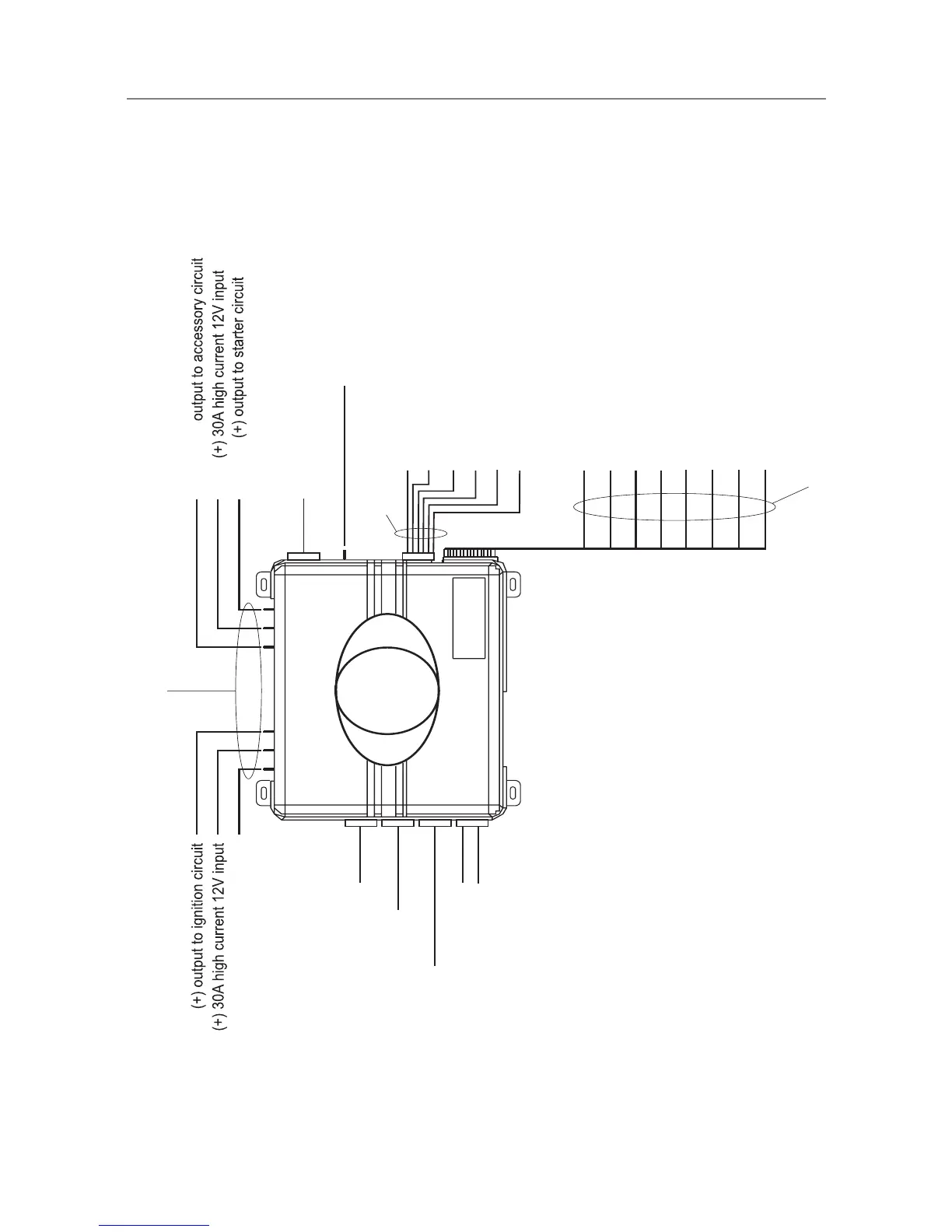

Wiring Quick Reference Guide
Heavy Gauge
Wires
BLUE
WHITE (+)
YELLOW
PINK
PINK
GREEN (+) output to ign/acc2 circuit
YELLOW/RED (-) lock or (+) unlock output
WHITE/RED (-) unlock or (+) lock output
MOMENTARY SWITCH PORT
ANTENNA CABLE PORT
SENSOR PORT
Fused light
flash jumper
Black (-)
Heavy guage
ground wire
YELLOW (+/-) parking light output
BROWN/WHITE (-) factory alarm disarm output
VIOLET (-) negative hood pin shutdown output
ORANGE (+) brake input
WHITE/BLACK (-) 400mA status output
RED/WHITE (-) remote start activation
GREEN Tachometer input
BLUE (-) 400mA horn/siren output
RED/BLACK (-) wait-to-start input
YELLOW/GREEN (+) ignition output
GREEN/WHITE (-) 400mA trunk release output
BROWN (-) 400mA RAP, Dome light, Starter kill output
YELLOW/BROWN (-) 400mA Headlight output
GRAY/BLACK (-) Door trigger input
H1
H2
