Fuselage Assembly
1. Locate wood motor mount plates (2D) and place the X bracket from your motor
onto it. Once you have chosen the correct size for your motor, you may set the
other aside.

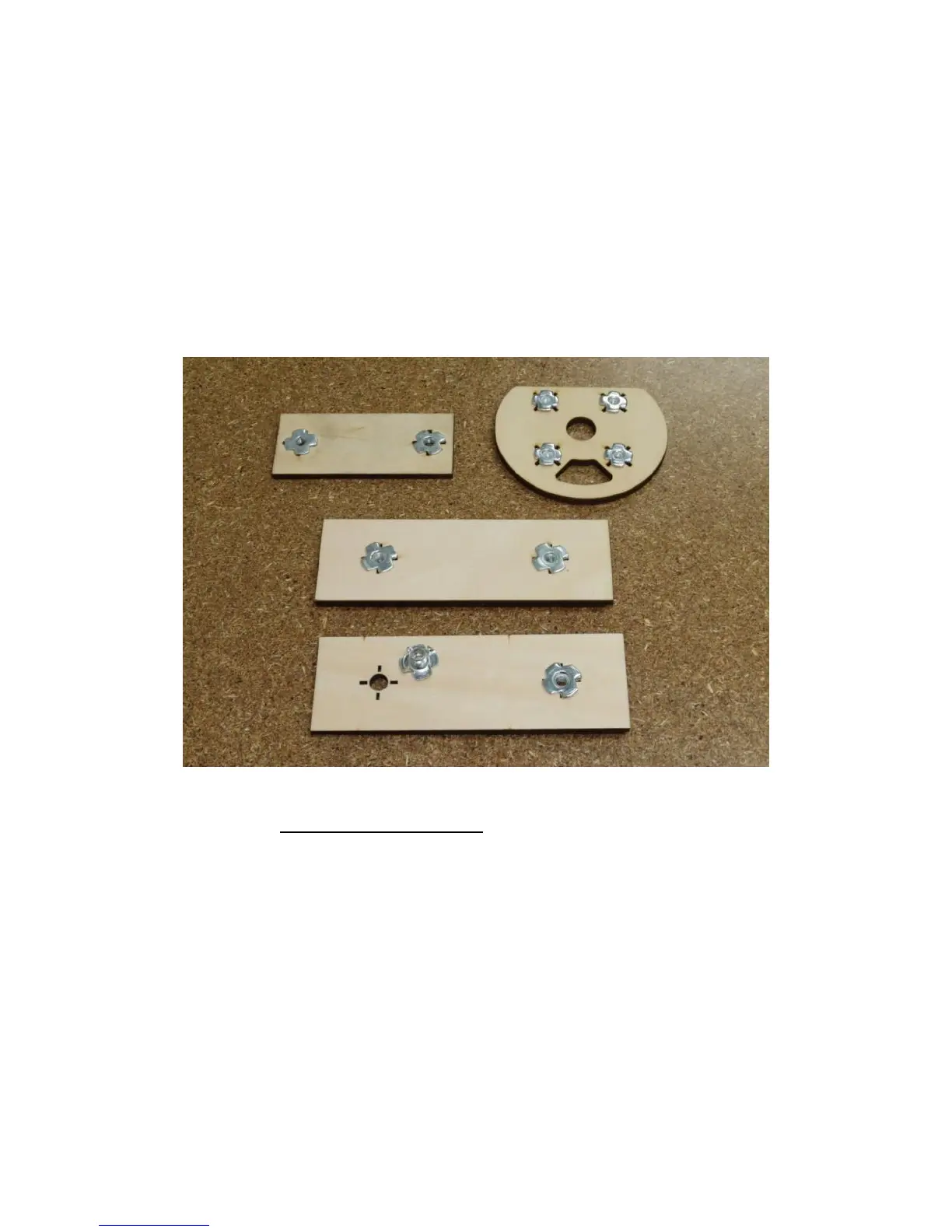

2. Insert T-Nuts into wood pieces and secure with epoxy. Leave one of the rear
landing gear plates with no T-Nuts installed. (4E)
a. Be sure to note correct T-Nut sizes for appropriate bolts!
b. M3 for motor mount, M4 for wing and landing gear anchors
3. Place wing bolts into Wing Anchors to assist with fuselage gluing.
a. Note correct bolt direction. Bolts should not be able to pull out T-Nut
under pressure.
b. Note where Anchors fit into the inside grooves of the fuselage
4. Apply glue to the following places:
a. All mating surfaces of Fuselage (One half)
b. All mating surfaces of Wing Anchors
c. All mating surfaces of Motor Mount
