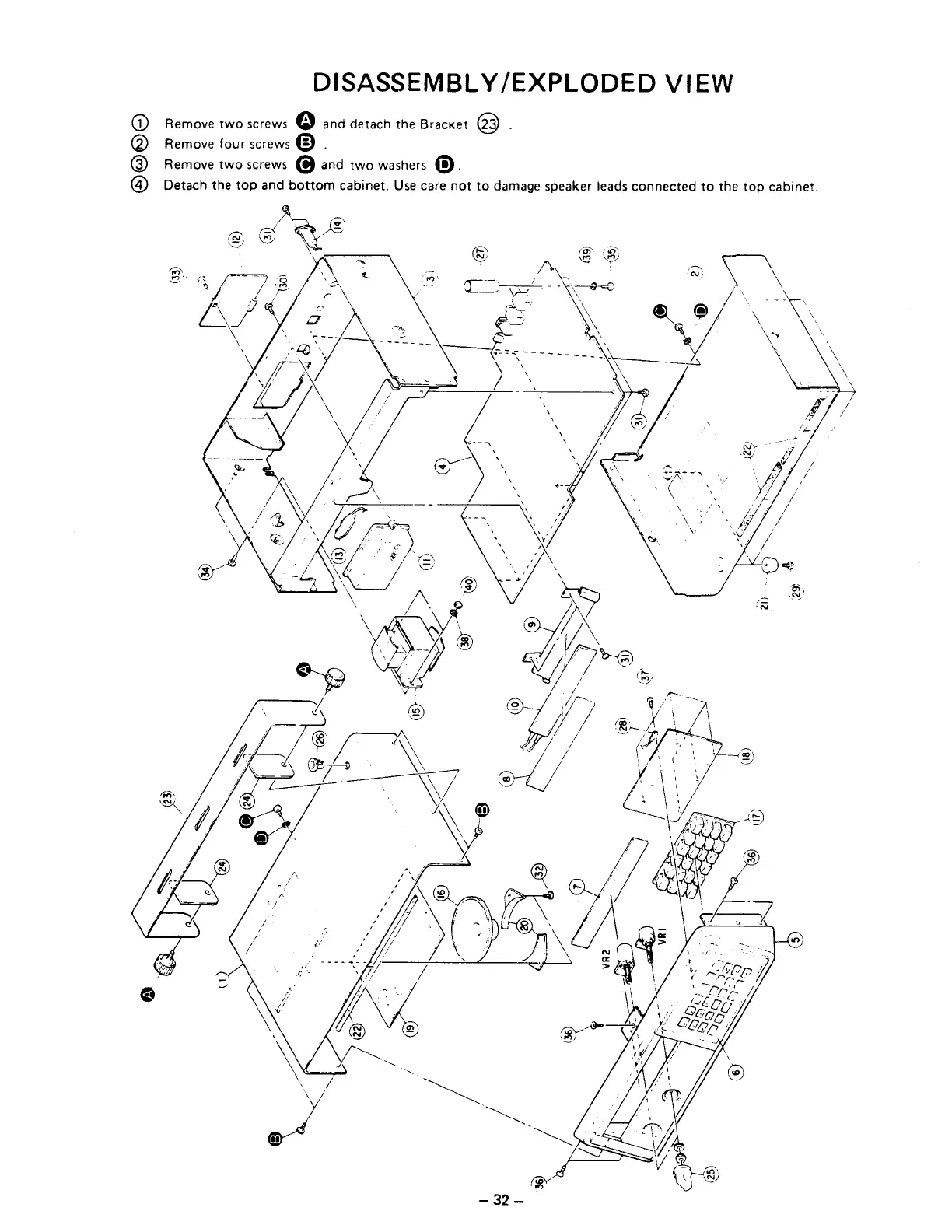

DISASSEMBLY/EXPLODED
VIEW
Remove
two
screws
©
and
detach
the
Bracket
23
А
Remove
four
screws
Remove
two
screws
(С)
and
two
washers
©.
Detach
the
top
and
bottom
cabinet.
Use
care
not
to
damage
speaker
leads
connected
to
the
top
cabinet.
