Realistic STA-115 - Page 9

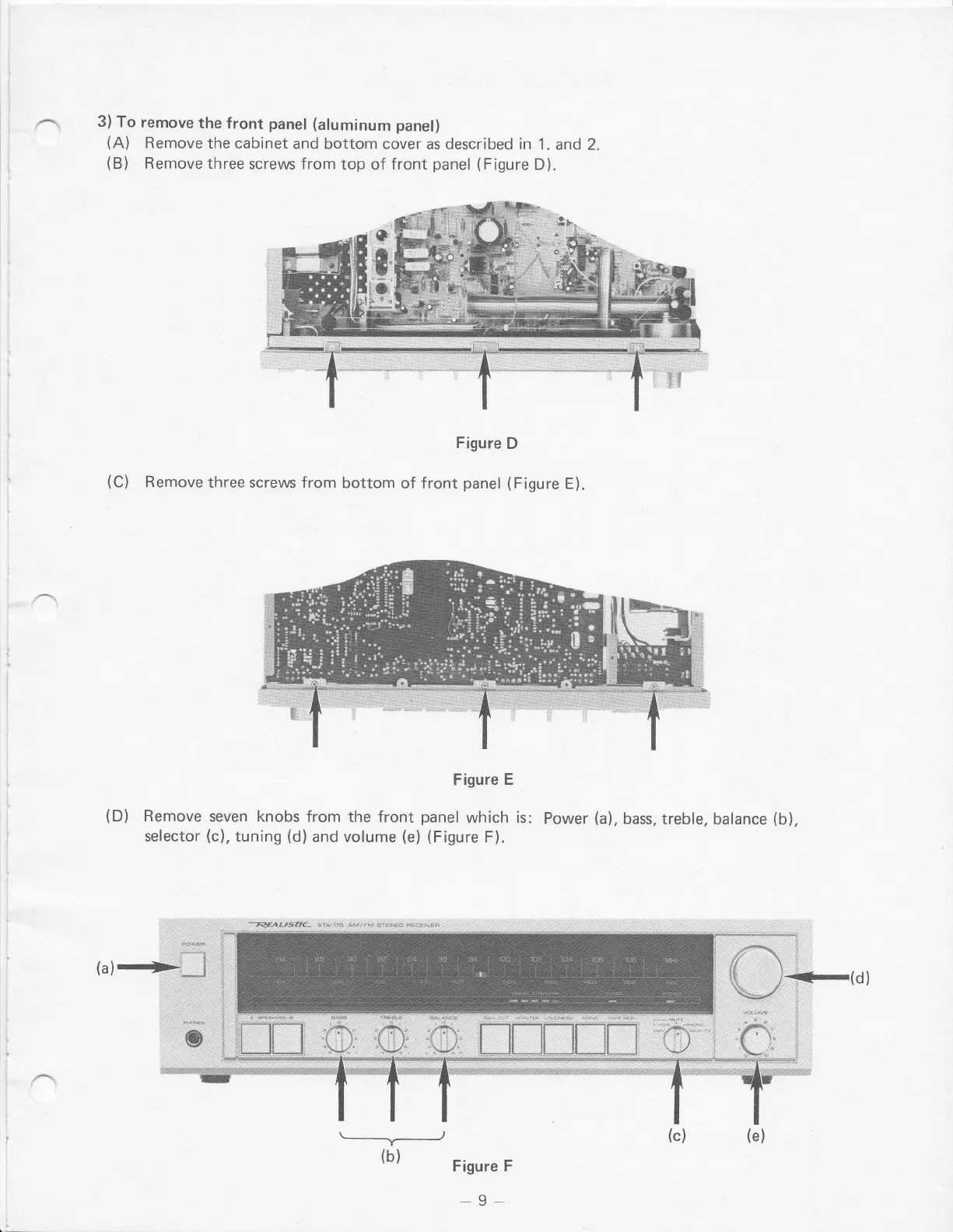

3)
To
remove
the front panel
(aluminum
panel)
(A)
Remove
the cabinet
and bottom cover
as described in
1. and 2.
(B)
Remove three
screltrs from
top of front
panel
(Figure
D).
Figure
D
(C)
Remove
three screws from
bottom
of front
panel
(Figure
E).
(D)
Remove
seven knobs
from the front
selector
(c),
tuning
(d)
and volume
(e)
Figure
E
panel
which is:
Power
(a),
bass,
treble, balance
(b),
(Figure
F).
\---_____Y__-__J
(b)
Figure F
9-
