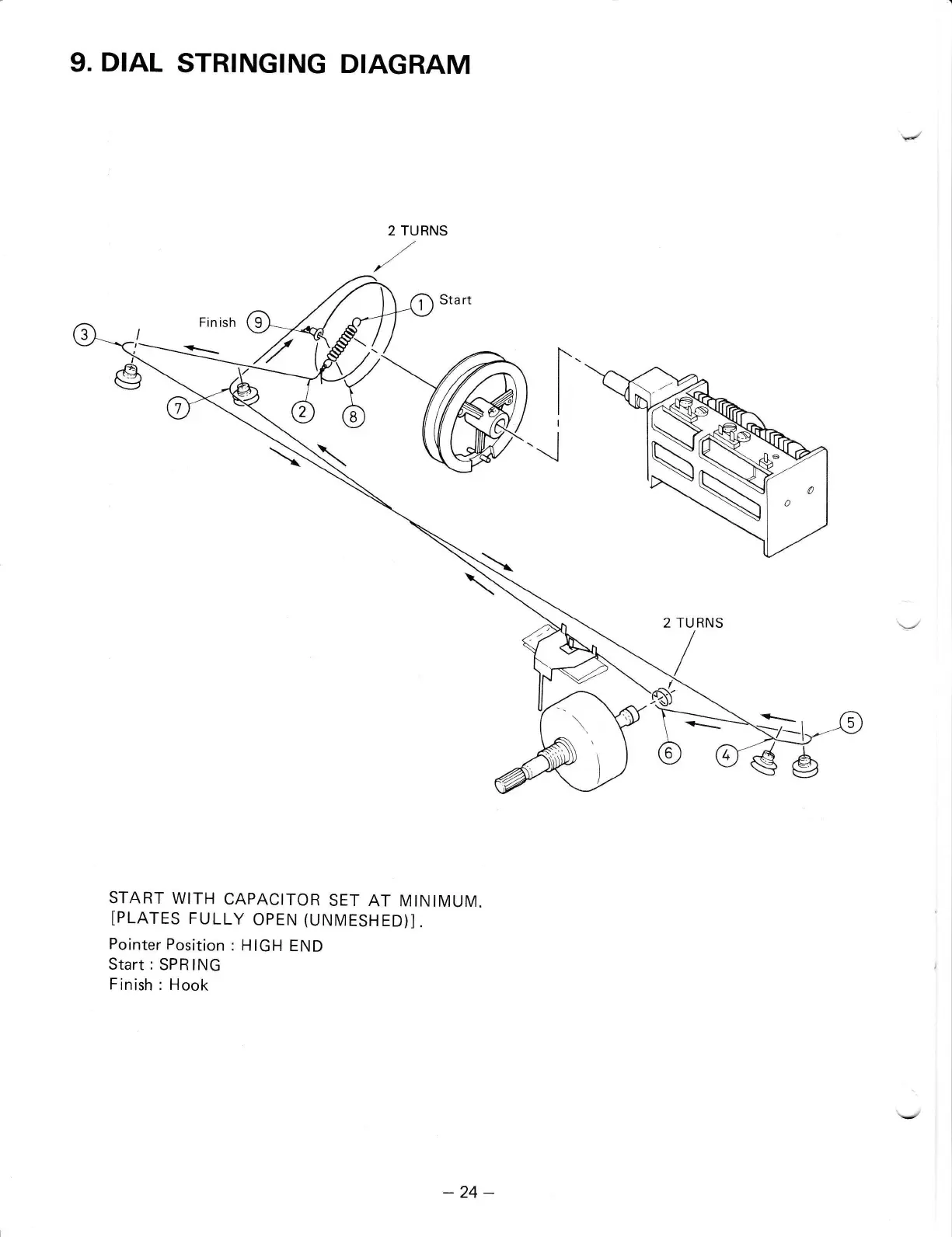

9.
DIAL
STRINGING
DIAGRAM
START
WITH
CAPACITOR
SET
AT MINIMUM.
IPLATES
FULLY
OPEN
(UNMESHED)].
Pointer
Position
: HIGH
END
Start:
SPRING
Finish
: Hook
t
I
i
2
TURNS
-24-
