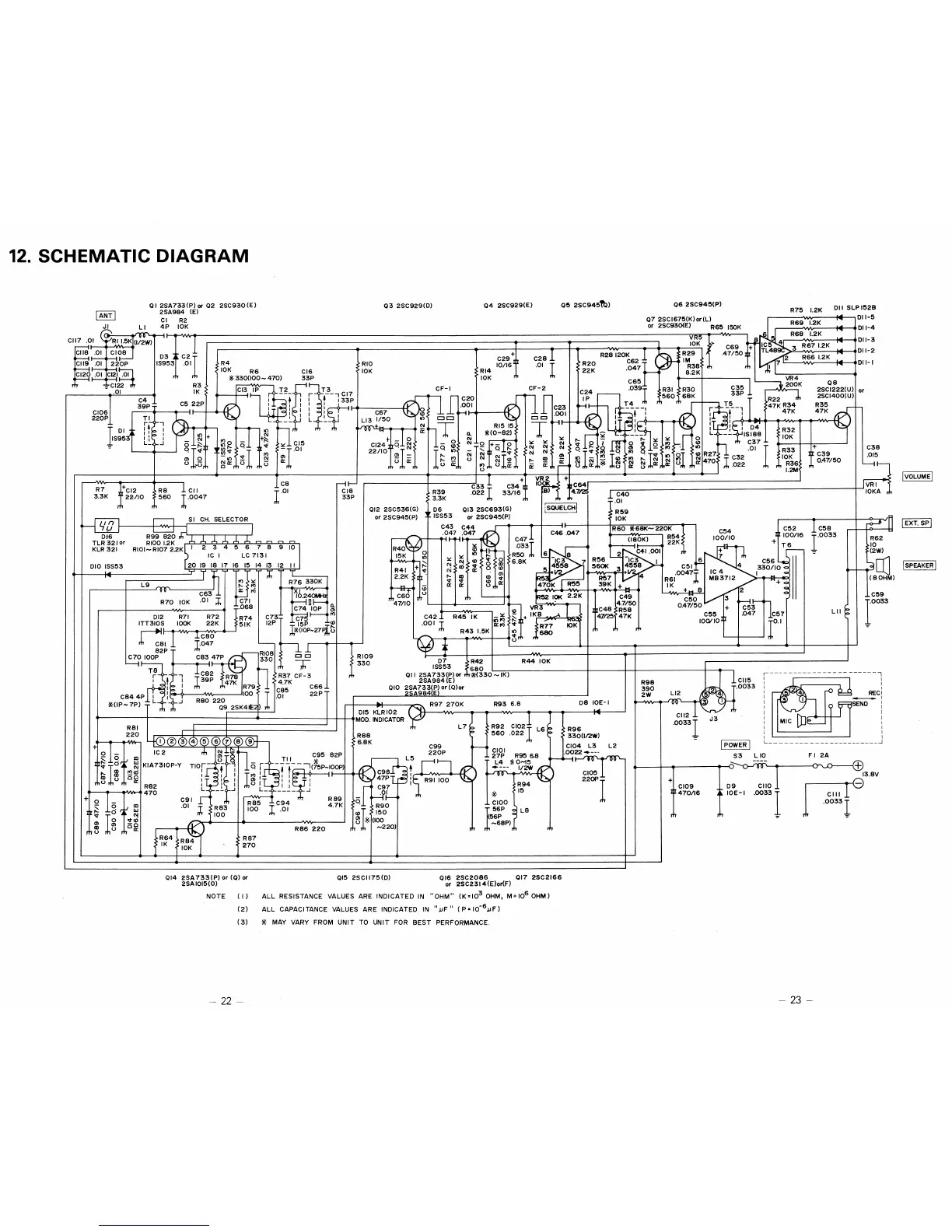

12. SCHEMATIC DIAGRAM

Q14 2SA733(P) or (Q) or

QI5 2SC1175(D)

Q16 2SC2086

Q17 2SC2166
2SA1015(0)
 or 2SC2314(E)or(F)

NOTE ( I ) 
ALL RESISTANCE VALUES ARE .
INDICATED IN "OHM" (K=10 3
OHM, M=10 6
OHM)
(2)
ALL CAPACITANCE VALUES ARE INDICATED IN ".uF " ( P=10
6 11F)
(3)
* MAY VARY FROM UNIT TO UNIT FOR BEST PERFORMANCE.
