BRUSH GUARD INSTALLATION

4 ea. (1)

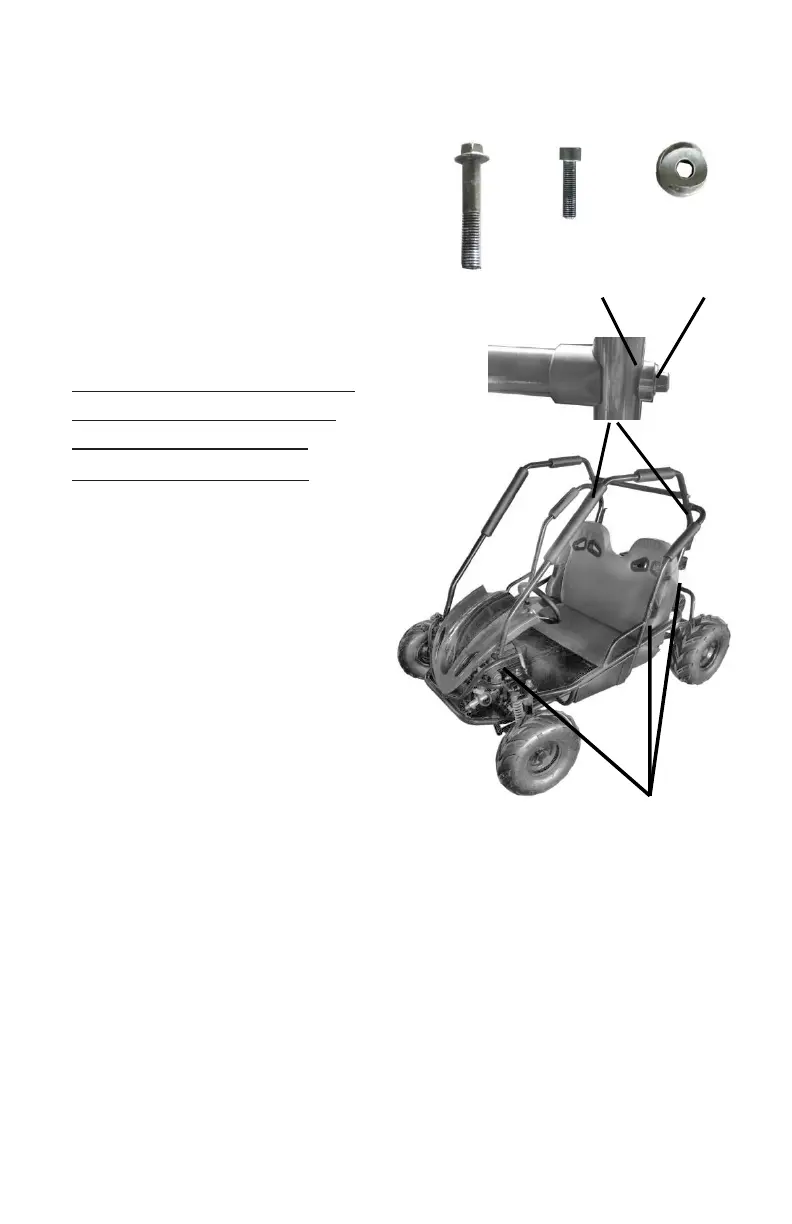

Hardware:

M8 X 50 bolts

M8 X 20 bolts

12ea. (2)

M8 Concave Washers 4 ea. (3)

1.Attach Main Brush Guard

withM8x20 bolts.

Note:Do not tighten bolts at

this time,keep bolts loose

until the brush guard is

completely assembled.

2.Attach Center and side

Supports with M8 Concave

Washers (3 )and Bolt M8x50.

Tighten all bolts on rack and brush

guard assembly.
