STEP 1 – Unpack and Prepare for Assembly
Remove all items from inside grill body and lay grill body on its back. For ease of assembly, com-
plete steps 1-6 below before standing grill upright.
Tip: Flatten the cardboard box out and lay everything on it. This serves as a good working area and
it helps prevent the grill from getting scratched or damaged during installation.
STEP 2 – Attach Legs
Attach legs with fixed wheels (#3) on the left side, with wheels facing outward to the front and back.
Attach legs with the rotating casters (#2) on the right side of the grill.
Attach all four legs using bolts, flat washers, lock washers and nuts
All hardware is found in included Hardware Packet (#14)
DO NOT FULLY TIGHTEN HARDWARE UNTIL STEP 3 IS COMPLETED
STEP 3 – Attach Bottom Shelf
Align shelf (#4) between grill legs and attach using 4 bolts, flat washers, lock washers and nuts.
STEP 4 - Attach side shelf (#8) to grill body
For all shelf bolts, use 2 toothed contact washers per bolt, with teeth touching the shelf body from
outside the grill and teeth contacting the inside of the grill body
STEP 5 – Install RTD Wires to Smart Grill Technology™ Controller

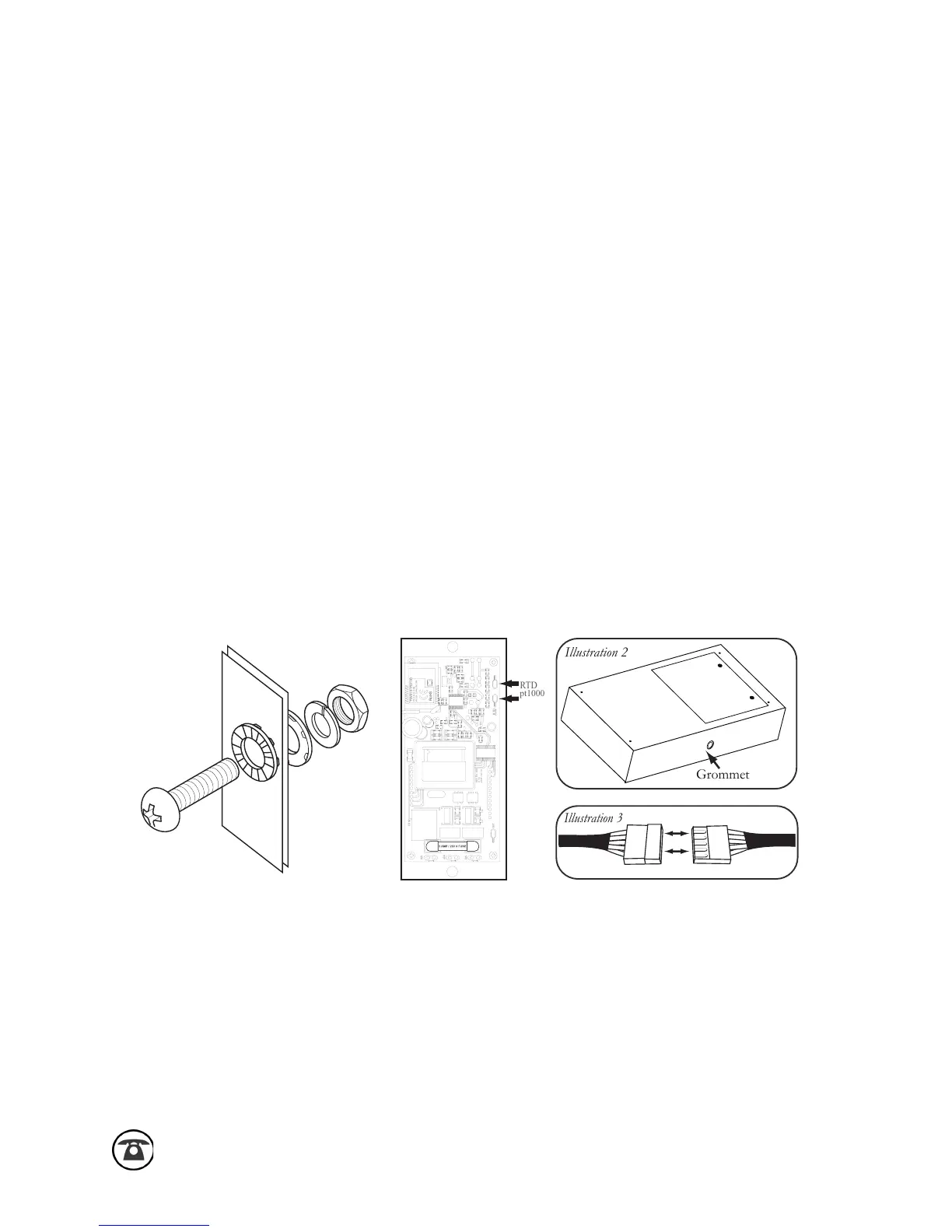

Locate the access panel underneath the side shelf and open it by removing the two screws. Feed the
two white braided RTD wires inside through the grommet as shown in illustration 2.
Plug the two white braided RTD wires onto the tabs labeled ‘RTDpt1000’
Slide them firmly onto the connectors and be careful to not touch any other parts of the circuit
board.
Replace the access door with the 2 screws.
Connect the wiring harness from under the Smart Grill Technology™ controller shelf to the grill
body wiring harness. See illustration 3.
