Record Power DS300 - Machine Assembly Instructions; Fitting the Disc Brake; Fitting the Mitre Fence; Fitting the Dust Port Adaptor

8
7. Assembly
The DS300 is supplied partially assembled and only the disc brake, mitre
fence and dust port adaptor (if required) need to be fitted to complete
assembly.
Fitting the Disc Brake
Remove the 2 hex head socket screws from either side of the hole in the top
of the machine, Fig. 7.1. Place the disc brake in position and secure in place
by refitting the hex head socket screws, Fig. 7.2.
Fitting the Mitre Fence
The mitre fence is supplied assembled. To fit the mitre fence to the machine,
slide the fence bar into the slot at the front of the table, Fig 7.3.
Fitting the Dust Port Adaptor
The 57 mm dust extraction outlet is located beneath the table. To fit
the adaptor, slide it into the existing outlet, Fig. 7.4. This will allow the
connection of 63.5 mm (2.5”) hose to the machine. To connect the machine
to a Record Power (or other 100 mm) dust extraction system, the optional
DX100R57 100 - 57 mm Reducer for HPLV Dust Extractors should be used.
Securing Sander Base Assembly to a Workbench
The DS300 should be secured to a stable work surface when in use to
minimise vibration and movement. There are 4 holes in the base of the
disc sander, on the front and rear feet. Drill 4 10 mm holes in the work
surface and secure the machine with M8 nuts and bolts (not supplied) of an
appropriate length to suit the work surface.

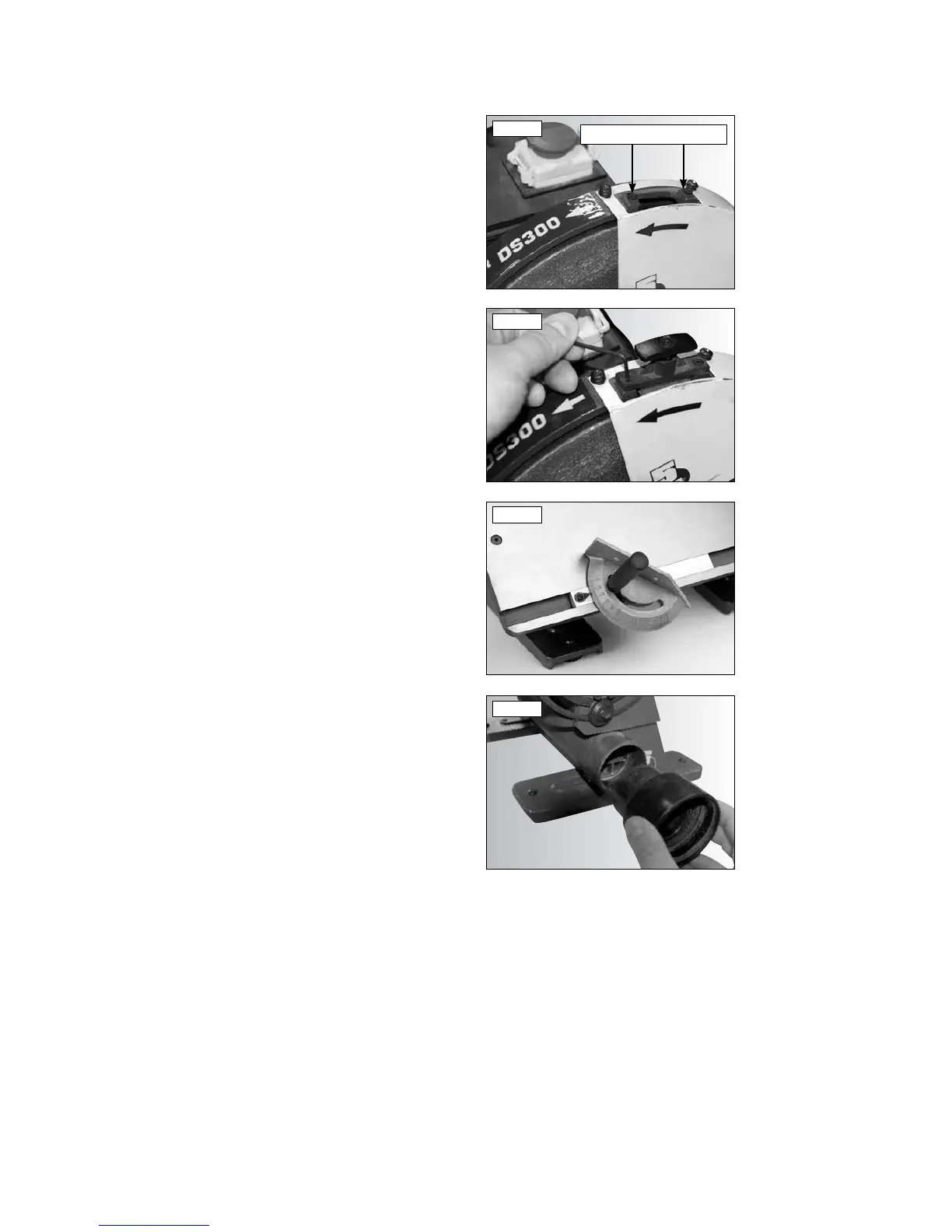

Hex head socket screws
Fig. 7.1
Fig. 7.2
Fig. 7.3
Fig. 7.4
