recteq RT-1250 - Hardware Specifications

6
RT-1250 Hardware

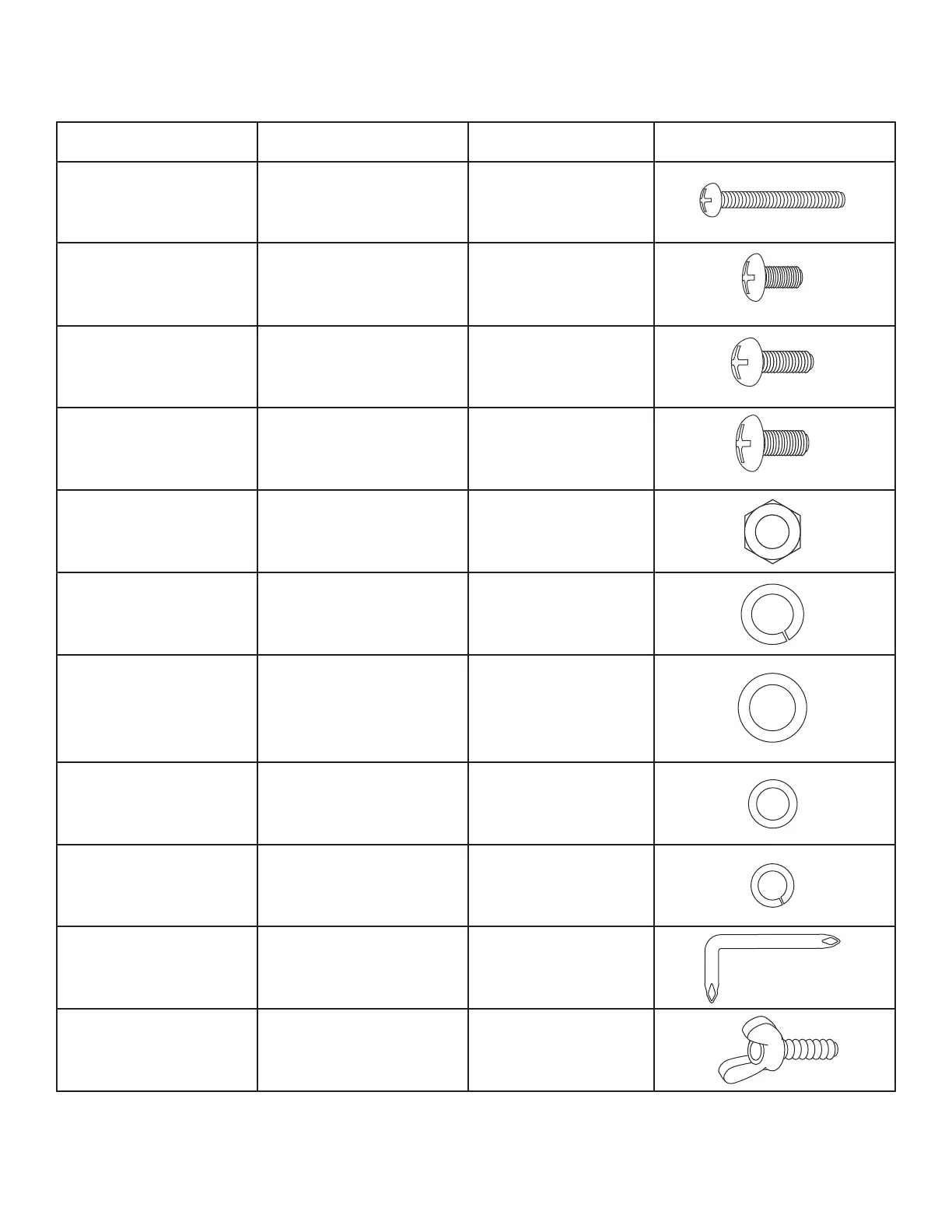

Hardware Specs Steps Used Illustration
Long bolts used to
mount legs.
M10 x 1.5
Length: 2in.
Quantity: 8
2, 3
Short bolts used to
mount brackets to
legs.
M6 x 1.0
Length: 1/2in.
Quantity: 8
4
Short bolts used to
mount shelf to leg
brackets.
M6 x 1.0
Length: 3/4in.
Quantity: 4
5
Medium bolts used to
mount side shelf and
smokestack.
M10 x 1.5
Length: 1in.
Quantity: 6
7, 12
Nut used for leg
bolts, side shelf, and
smokestack.
M10 x 1.5
Quantity: 14
2, 3, 7, 12
Lock washers used
for legs, side shelf,
smokestack.
3/4in. diameter
Quantity: 14
2, 3, 7, 12
Flat washers used for
leg bolts, side shelf,
and smokestack.
3/4in. diameter
Quantity: 14
(Extra hardware may
be included)
2, 3, 7, 12
Flat washers used
for bottom shelf/leg
bracket bolts.
1/2in. diameter
Quantity: 12
4, 5
Lock washers used
for bottom shelf/leg
brackets bolts.
3/8in. diameter
Quantity: 12
4, 5
Phillips head angled
screwdriver provided.
Thumb screw 9
