7
RT-700 Assembly

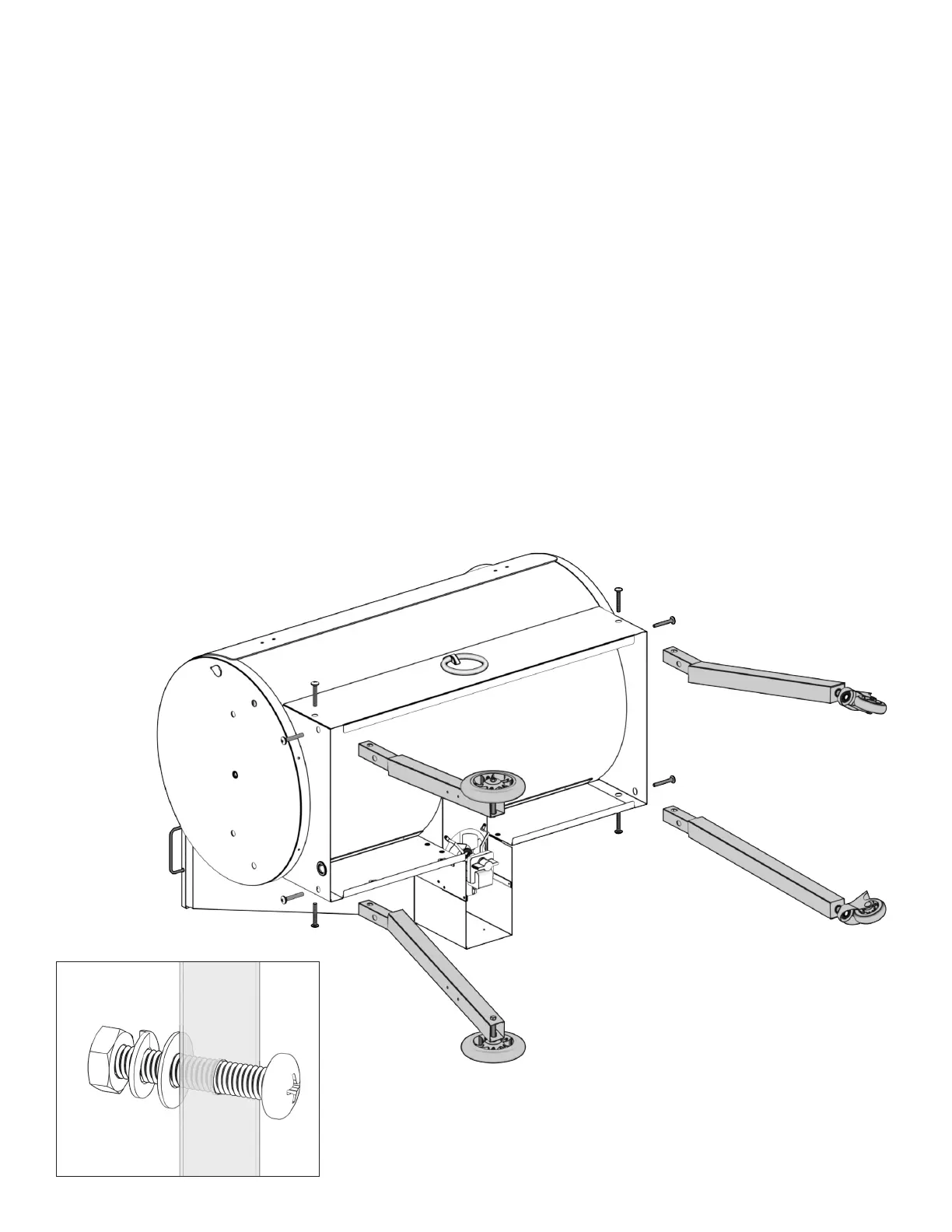

Start with grill on its backside.
On the left side, attach fixed wheel legs (3) with bracket holes facing outward from the grill.
Then on the right side, attach caster wheel legs (2) with bracket holes facing outward from the grill.
Hand tighten all four legs using bolt assembly order pictured below.
Use hardware A and E.
If you purchased a competition cart, please proceed to page 14.
Step 1
Unpack and Prepare for Assembly
With assistance, remove all items from inside grill body and lay grill body on its back.
Tip: Flatten the cardboard box out and lay everything on it. This serves as a good working area and it
helps prevent the grill from getting scratched or damaged during installation.
Step 2
Flip Grill and Attach Legs
To Next Page
