recteq RT-700 - Install Leg Supports and Shelves

8

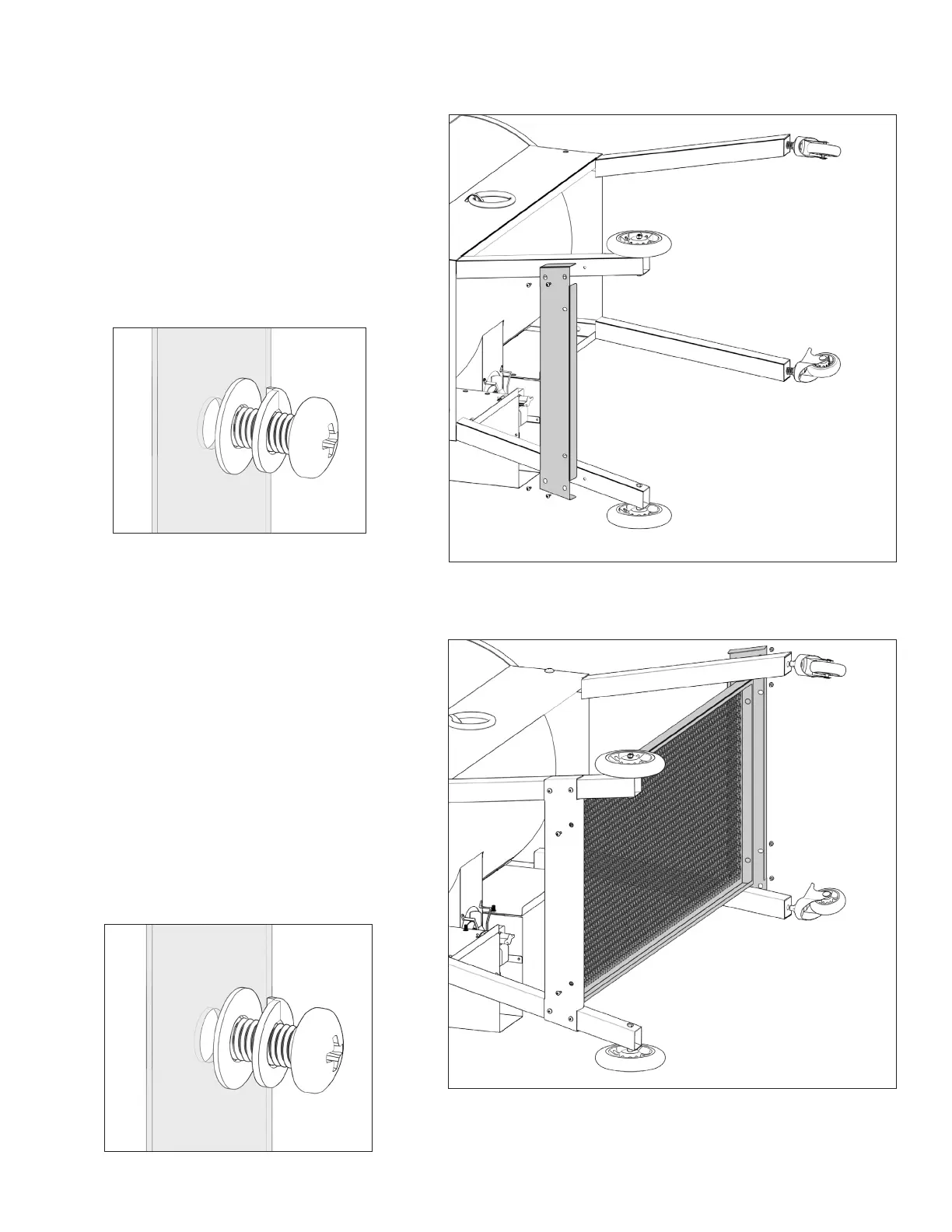

Starting with the left side fixed wheel legs
(3), attach left leg support bracket (15) to
the outside of the legs so it wraps around
them.
Hand tighten with bolt assembly order
pictured below.
Use hardware C.
Install Left Leg Support Bracket
Install Bottom Shelf and Right Leg Bracket
Insert bottom shelf (4) and secure it into
place with the right leg support bracket.
1. For right leg support bracket (15), hand
tighten with bolt assembly order.
2. For bottom shelf (4), hand tighten with
bolt assembly order.
Use hardware C.
Note: There will only be four of these screws
for this process.
Step 3
Step 4
1
1
2
2
2
2
