Sa Sb
6a
To assemble and attach the carry cot (Pram mode for babies up to 6 months)

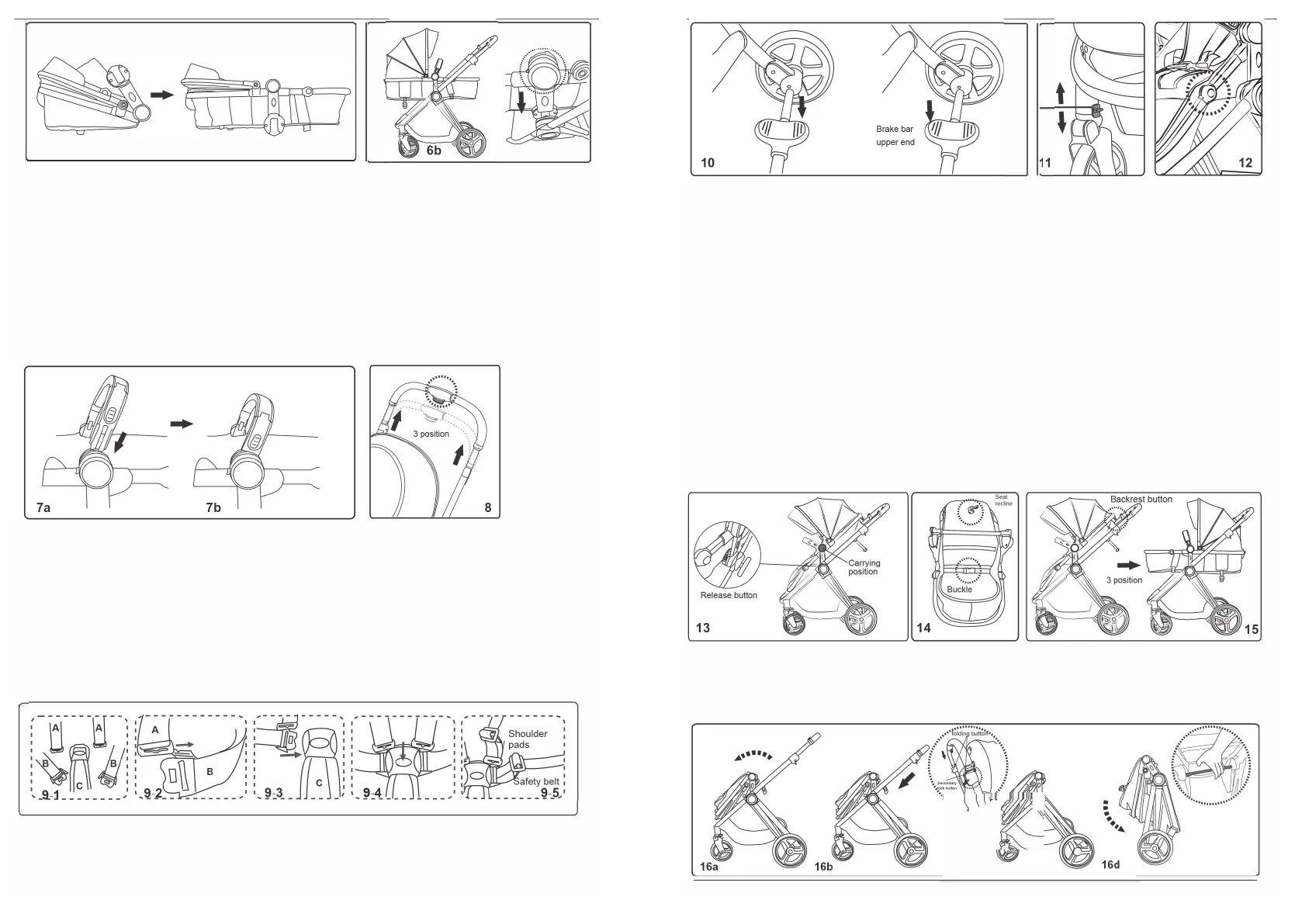

5. Rotate the adaptors clockwise and then rotate the bottom frame section clockwise until it
locks in place. Figs 5a and 5b.
6. With the adaptors in a vertical position, slide them on to the main pram frame until it clicks
in place. Figs 6a and 6b.
7. Push the ends of the bumper bar into the recess on the seat frame until it clicks in place.
To remove the bumper, press the buttons on the side and pull outwards. Figs 7a and 7b.
To adjust the handle height
8. Press and hold in the button on the top of the handle and choose which of
the 3 positions you need. Fig 8.
To secure and adjust the harness
Slide A on to B and then push into C to attach the harness. Press the button in the centre of the
crotch strap (C) to release the harness. Adjust the waist and shoulder straps by means of the
slides to achieve a snug comfortable fit. Figs 9.
WARNING Always use the crotch strap in combination with the waist belt.
Whilst in Pram Mode,the harness straps can be removed if needed. Undo the zips on the
back of the seat, slide your hand inside to locate the buckles. Turn the buckles 90 degrees
and push through the slots.
To use the brakes
10. Press the foot pedal forwards or backwards to engage or release the brakes. Fig 10.
WARNING Apply all the brakes whenever you park the stroller.
To select fixed or swivel front wheels
11. Press the button down to select a fixed wheel and pull it up for swivel wheels. Fig 11.
To adjust the footrest
12. Press in the buttons on both sides of the frame to adjust the footrest. Fig 12.
Seat unit removal, reversal and functions
13. Press in the buttons on the bottom of the adaptors on both sides to lift the seat unit/carry cot
off the frame, turn the seat 180 degrees and reattach. Fig 13.
To use in stroller mode (for babies from 6 months +)
WARNING This seat unit is not suitable for children under 6 months.
14. Connect the buckles
together on the foot end under the seat
unit. Hold the D ring on the end of the
recline strap and push the block
forward. Fig 14.
15. Press the button on the back o
f the frame just behind the hood
to select 1 of 3 different positions.
Fig 15. The seat
angle
can be further adjusted by releasing the recline strap on the back of the seat.
To fold the pushchair
16. Before folding, set the
wheel locks to 'swivel'. Press
in the button on the back of the seat unit
and rotate the seat unit all the way forward. Fig 16a. Lower the handle height. Fig 16b. Press in the
primary button on the right-hand side of the folding locks and pull both triggers toward you to fold the
handle down then lift the bar across the centre to engage to locking hook. Figs 16c and 16d.
16C
