Red Sea MAX E-170 User Manual

Red Sea MAX
®
E-Series
10
6 Installation of Rear Sump Components
The MAX
®
E-Series aquariums are divided into 2 parts, Aquarium and the Rear Sump that houses all of the filtration and circulation systems.
1. Detachable Surface Skimmer
2. Protein Skimmer
3. Media Rack
4. Carbon
5. Circulation Pump
6. Pump Outlet Nozzle
7. Filter Sponge
8. Multiport Bulkhead
9. Flow Grill / Plug
10. Accessory kit
11. Return pump outlet port (for upgrade)
12. Heater (not supplied)
13. Chiller Pump (not supplied)

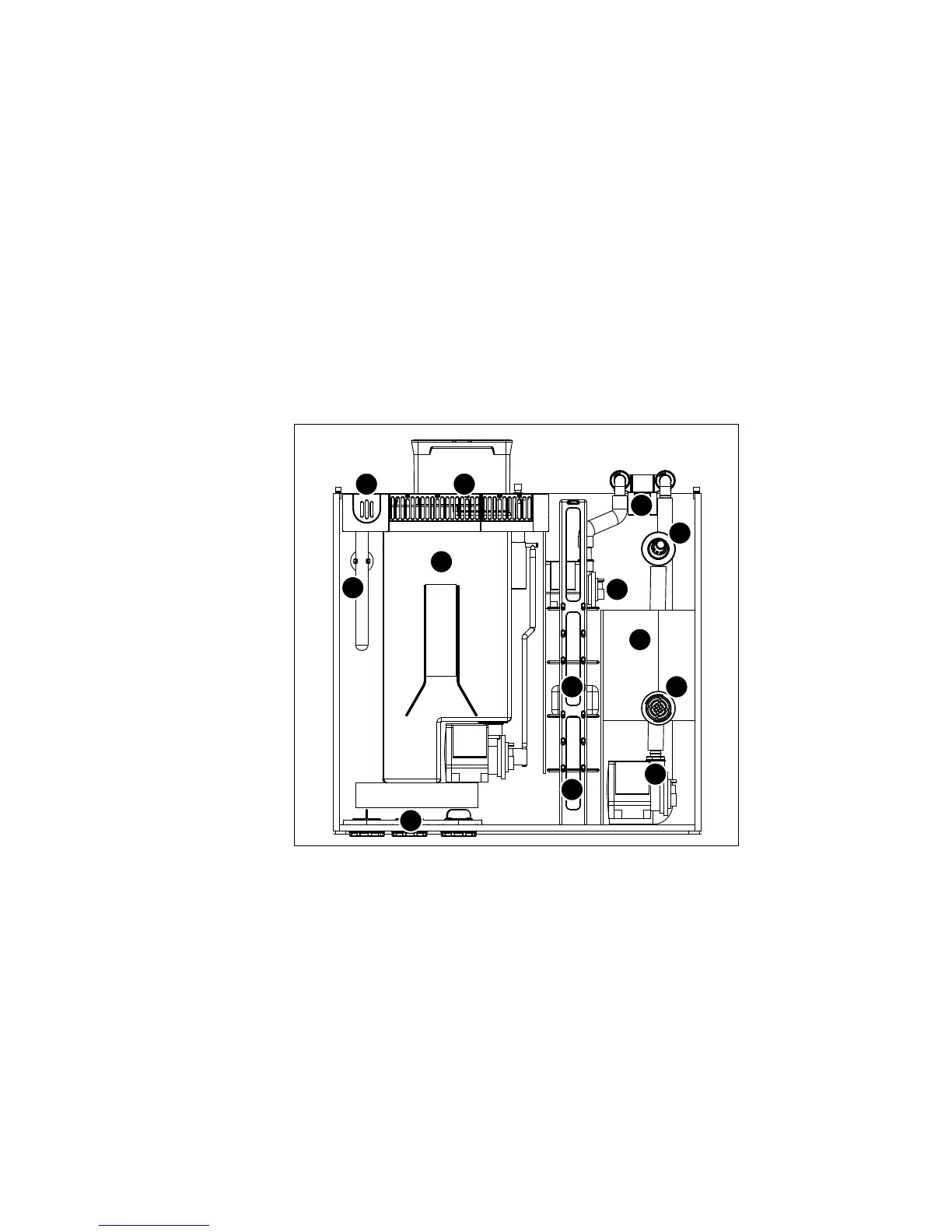

E-170 rear sump component assembly diagram shows
position of optional heater, chiller pump and piping
10
11
13
9
7
2
5
6
3
1
8
4
12

Red Sea MAX E-170 Specifications

General

Heater	Not included
Type	Reef System
Volume	170 Liters / 45 US gal
Glass Thickness	10 mm
Protein Skimmer	Red Sea Skimmer
Tank Volume	170 L / 45 Gal
Filtration	Mechanical and chemical filtration
Stand	Marine-Spec cabinet
Flow Rate	2150 L/h / 568 G/h
