Red Sea MAX E-170 - Installation of LED Modules

Red Sea MAX
®
E-Series
16
7. When first operating the chiller pump, check that the water is
circulating through the chiller without leaks at any of the connections
in the piping.
8. If connecting the chiller to an operating system pay attention to the
drop in water level and refill the tank with freshly mixed salt water at
the same salinity, pH and temp.

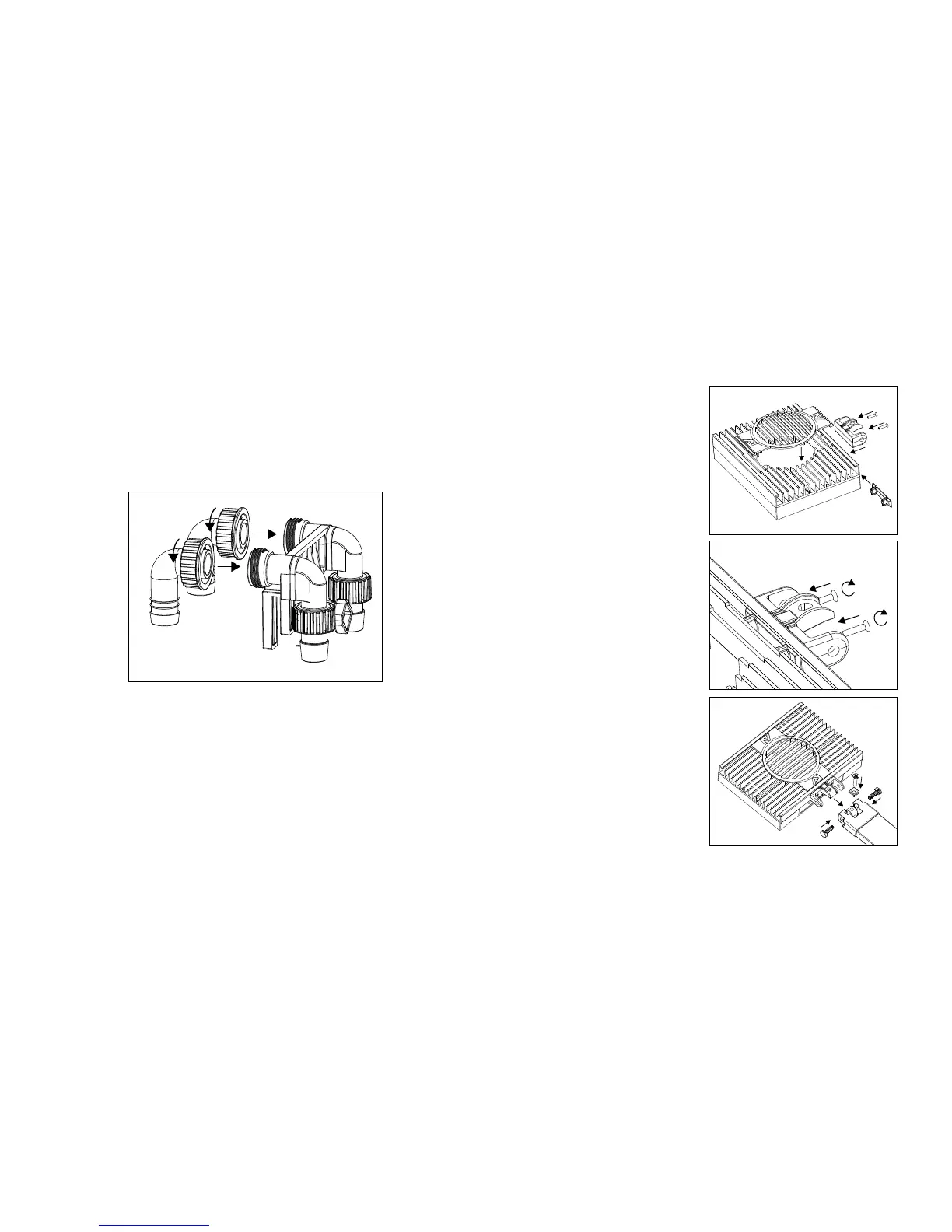

8 Installation of LED Modules
Remove the fan cover. Slide the
connector plate into the module so
that the threaded bushings in the
plate are aligned with the holes in
the aluminum.
Using the M3 screws provided,
lightly attach the swivel connector as
shown in the diagram. Replace the
fan cover and ensure that the swivel
connector is parallel to the top of
the aluminum before tightening the
screws.
Put the swivel connector pins and
fixing screw within easy reach of the
aquarium. Locate the LED Module in
front of the mounting arm and push
swivel connector in position. Insert the
connector pins to both sides and push
until firmly in position. Screw the fixing
screw into the top of the connector.
Adjust the position of the LED module
until it is parallel with the top of the
aquarium and tighten the fixing screw. The swivel connector allows rotational
adjustment for personal preference of approximately 5 degrees.
1
2
3
4
2
3
1
2
