6.1 Protein Skimmer:
The MSK 900 protein skimmers
consists of three parts: skimmer
body, collection cup and skimmer
pump.
Familiarize yourself with the
skimmer pump by disassembling and
reassembling all of the component
parts. Ensure that the impeller
chamber cover is correctly positioned
and properly secured by the bayonet
ring. Before use check that the pump
and power cable are not damaged.
Diagram key :
a. Skim adjuster
b. Venturi inlet
c. Air pipe
d. Small air pipe

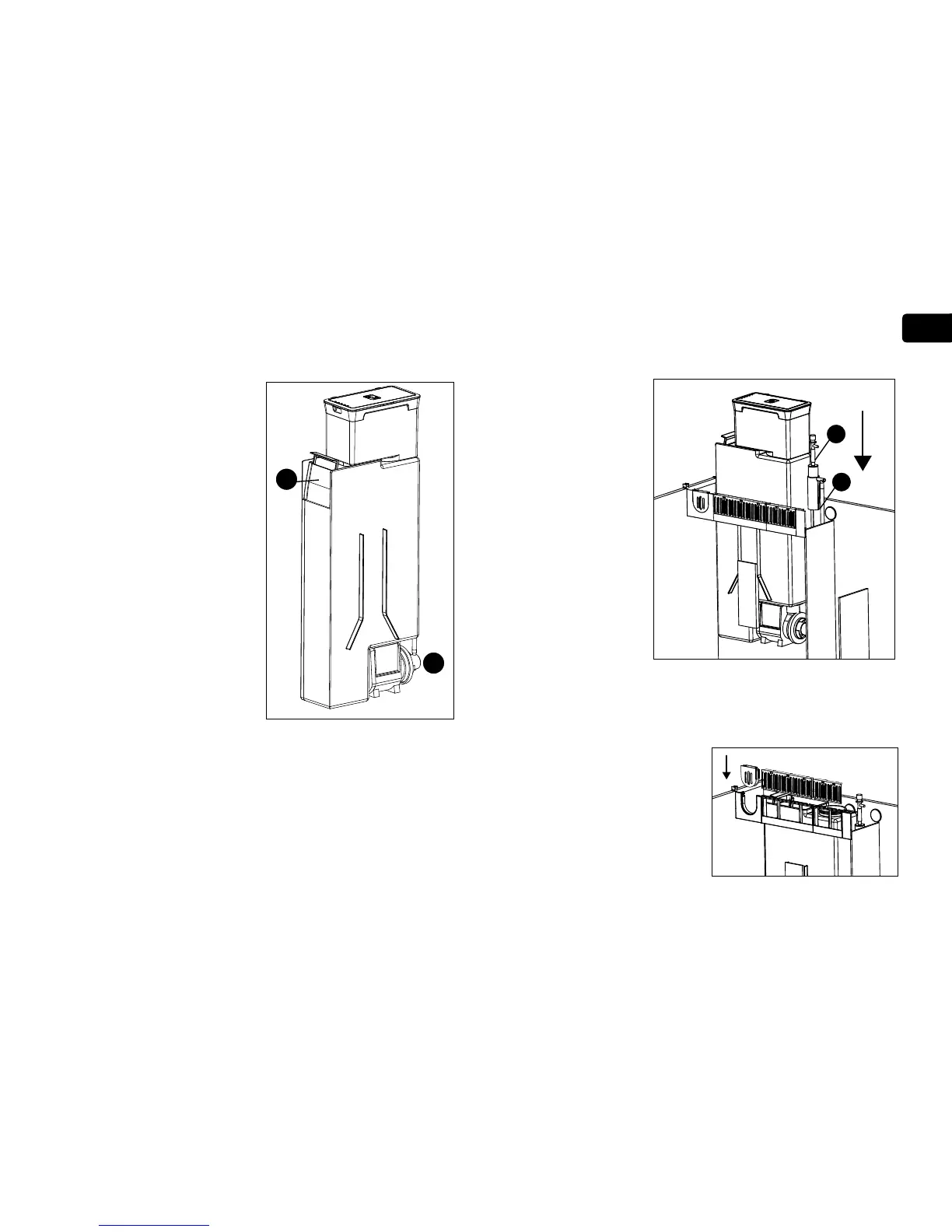

Assemble the skimmer as shown in the diagram.
1. Set the skim adjuster to its lowest position.
2. Connect the air pipe from the venturi inlet of the skimmer pump to
the outlet of the silencer.
3. Connect the small air pipe on the inlet of the silencer.
4. An optional air valve is provided for use with the skimmer. Initially do
not attach the air valve; it is only to be used if required as described
in the operation instructions (chapter 12; page 19).
5. Slide the skimmer into the skimmer compartment. Note the position
of the skimmer guides
located on the inner
wall of the rear sump.
6. Thread the cable
through the cable
channel and plug the
power cable into the
designated socket on
the power center.
6.2 Surface Skimmer:
The comb sections of the surface
skimmer are easily removed for
regular cleaning. Put your hand over
the surface skimmer. Hold the comb
(not the frame) between thumb and
fingers and pull upwards.
Surface Skimmer/comb
MSK 900 skimmer
c
d
MSK 900 skimmer
b
a
