22
6 - UNPACKING
force. Do not store the stove unit or its cladding without their packaging.

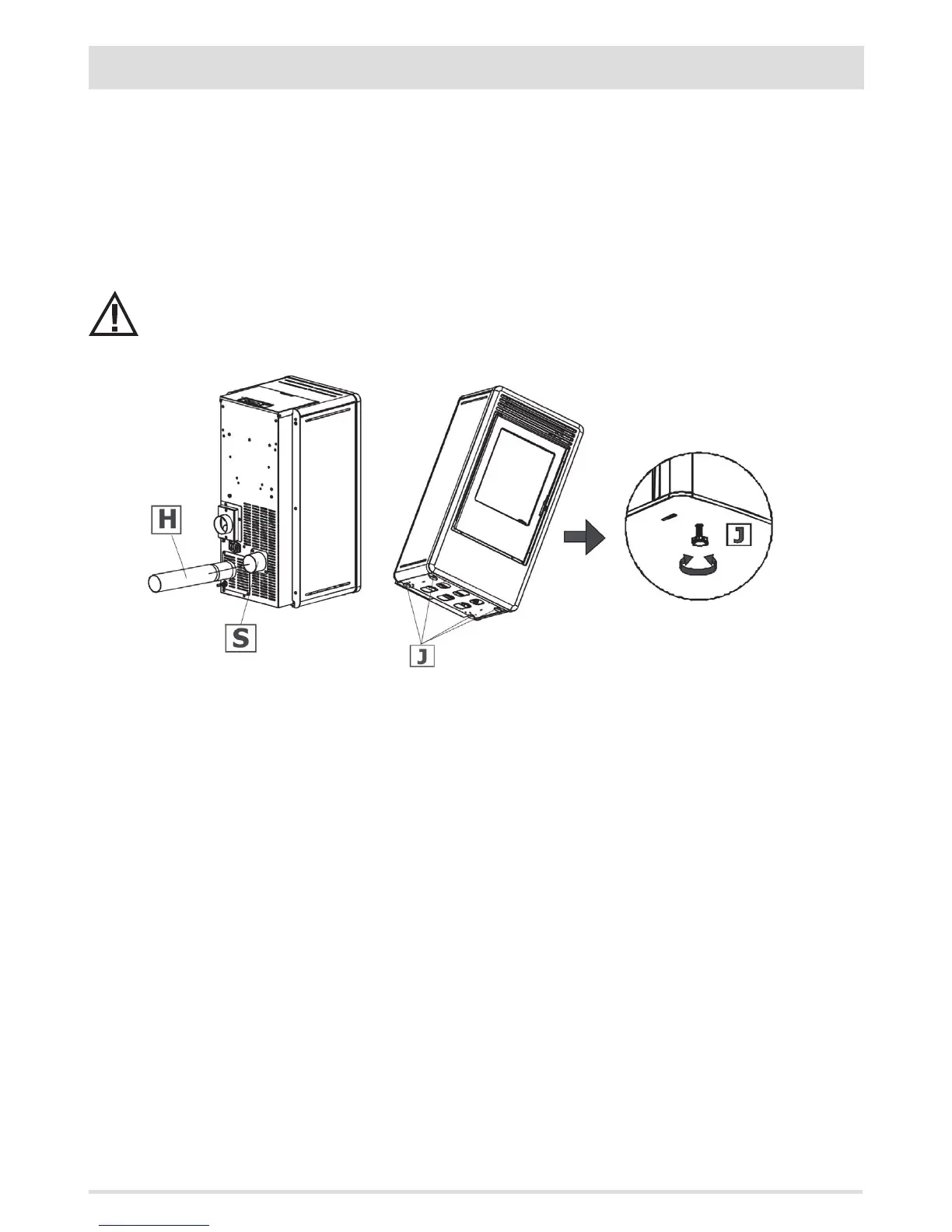

Position the stove without its cladding and connect it to the ue pipe. Use the four adjustable feet (J) to get the stove correctly levelled
so that the smoke outlet (S) is lined up with the connecting pipe (H). Once the operations for connection are complete, assemble the
cladding (ceramics or steel sides).
If the stove needs to be connected to an outlet pipe which goes through the rear wall (to connect to the ue), take utmost care to make
sure that the joint is not forced.
If the stove smoke outlet is forced or used improperly to lift it or position it, the operation of the stove can be
damaged irreparably.
1. TURN THE FEET CLOCKWISE TO LOWER THE STOVE
2. TURN THE FEET COUNTERCLOCKWISE TO LIFT THE STOVE
