7 - CLADDING ASSEMBLY
ASSEMBLING THE SIDE CLADDING
ASSEMBLING THE PROFILES TO INSERT THE STEEL SIDES (PRIMULA)

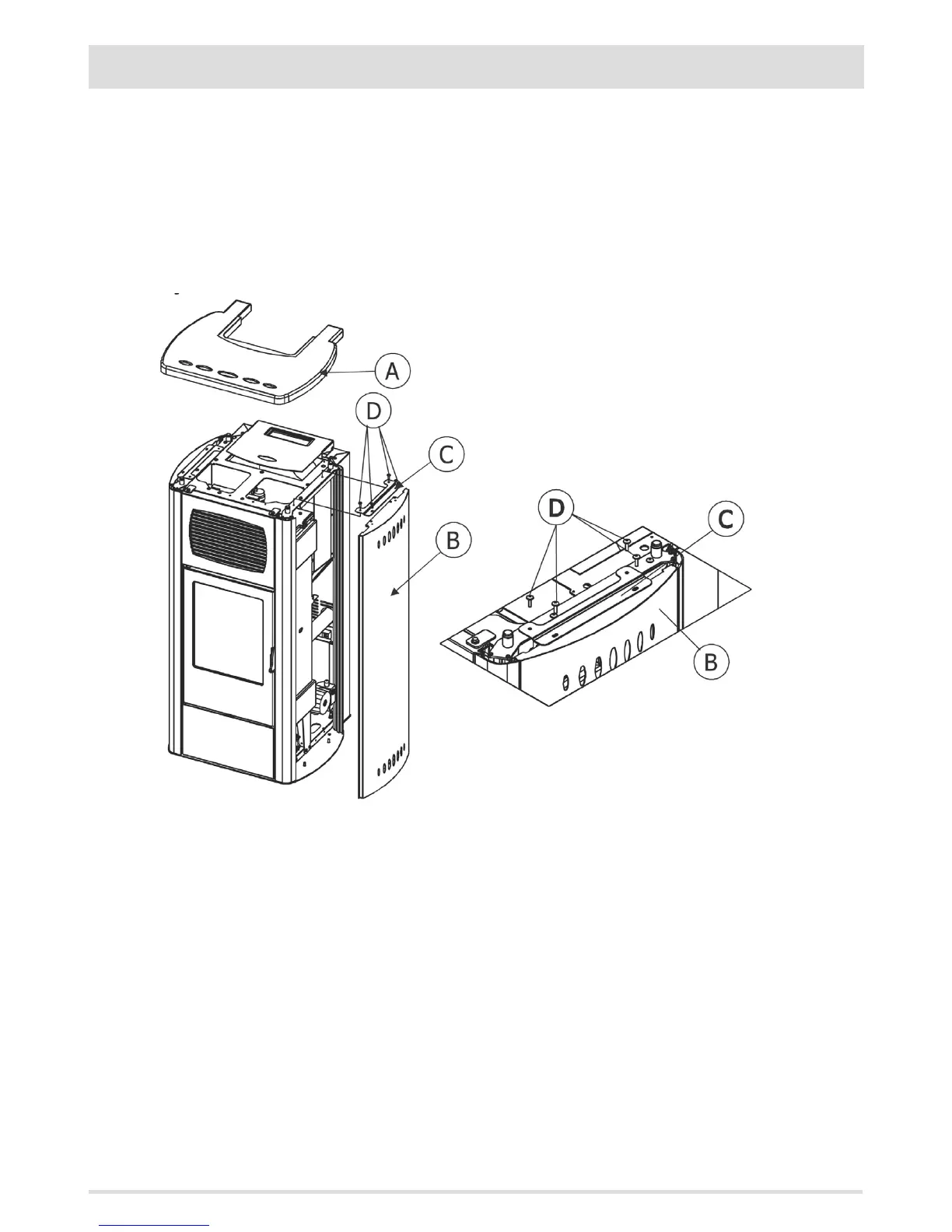

Remove, on the upper part, the cast iron top (A). Take the side (B) (pay attention that it enters in the part under the plugs (F) and secure
it to the upper sheet metal of the stove with the bracket (C) and the four screws (D). Two screws secure the bracket (C) on the stove and
two secure the bracket (C) to the side (B).
Repeat the same operation for both sides. Reposition the cast iron top.
INSERTING THE SIDES
